GR2 Titanium flange
- 6000 Ton / Tons per Month
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | China |
Product Description

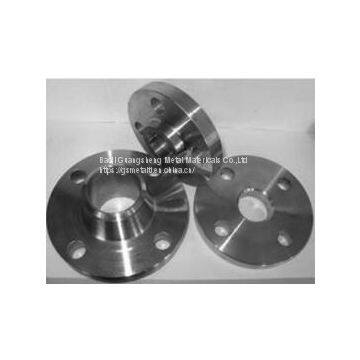

GR2 Titanium flange
QUICK DETAILS:
GS-METAL produces pure titanium flanges and titanium alloy flanges.That is, for the connection between pipes, connecting the two ends of the pipe.The titanium flange of our factory can be processed as follows
Material: Gr1, GR2, GR7, GR9, GR12
Specification:
Size: 1''-24''.
Tension:150lb-2500lb.
CLASS 150LB(pn0.6,pn1.0,pn2.0,pn1.6)
CLASS 300LB(pn2.5,pn4.0,pn5.0),
CLASS 600LB(pn10.0 ) ,
CLASS 900LB(pn15.0),
CLASS 1500LB(pn25.0),
CLASS 2500LB(pn42.0), etc.
Type: The titanium flanges are include welding neck flange, threaded flange, lap joint flange, blind flange, welded flange, socket welding flange, titanium flange plate, etc.
The specific type as the following introduction.
Flange type: PL, So, WN, IF, SW, Th, PJ/SE, PJ/PR, BL, BL(S)
Face of flange: FF, RF, M, T, FM, G
Pressure of flange: 0.25MPa, 0.6MPa, 1.0MPa, 1.6MPa, 2.5MPa, 4.0MPa, 6.3MPa, 10.0MPa, 16.0MPa, 25.0Mpa
GS-METAL Specialized In Raw Metal Products, Like Titanium Forging, Titanium Casting And Other Machining Parts. All The Titanium Forging Tested As Certification Of ISO9001 Or
The Third Party Testing Part.
Titanium flange Gr7 manufacturer:Baoji Guangsheng Metal Matericals Co.,Ltd
Features of titanium forging
1. Low Density and High Specification Strength
2. Excellent Corrosion Resistance
3. Good Resistance to Effect of Heat
4. Excellent Bearing to Cryogenics Property
5. Nonmagnetic and Non-toxic
6. Good Thermal Properties
7. Low Modulus of Elasticity
GS-METAL have our own equipment for all the titanium forgings. We are one of the best China titanium and titanium alloy blind flange manufacturers and suppliers, and we are also a professional company with productive and effective factory. Welcome to wholesale products from us, we have titanium and titanium alloy blind flange in stock for you.
TITANIUM PIPE FLANGES | |||||||||||||||
Bore Dia. | Length | Drilling and | Weight | ||||||||||||
Nom. Pipe Size (In.) | Flange Dia. | Flange Thk. | Hub Dia. at Base | Raised Face Dia. | Hub Dia. at Weld Point | Weld Neck | Slip On | Weld Neck | Slip On | No. of Holes | Dia. of Bolts (In.) | Dia. of Bolt Circle | Weld Neck | Slip On | Blind |
1/2 | 3-1/2 | 7/16 | 1-13/16 | 1-3/8 | .84 | .62 | .88 | 1-7/8 | 5/8 | 4 | 1/2 | 2-3/8 | .94 | .94 | 1.26 |
3/4 | 3-7/8 | 1/2 | 1-1/2 | 1-11/16 | 1.05 | .82 | 1.09 | 2-1/16 | 5/8 | 4 | 1/2 | 2-3/4 | 1.26 | 1.26 | 1.50 |
1 | 4-1/4 | 9/16 | 1-15/16 | 2 | 1.32 | 1.05 | 1.36 | 2-3/16 | 11/16 | 4 | 1/2 | 3-1/8 | 1.56 | 1.56 | 1.70 |
1-1/4 | 4-5/8 | 5/8 | 2-5/16 | 2-1/2 | 1.66 | 1.61 | 1.95 | 2-7/16 | 7/8 | 4 | 1/2 | 3-1/2 | 1.88 | 1.88 | 1.88 |
1-1/2 | 5 | 11/16 | 2-9/16 | 2-7/8 | 1.90 | 1.61 | 1.95 | 2-7/16 | 7/8 | 4 | 1/2 | 3-7/8 | 2.50 | 2.50 | 2.50 |
2 | 6 | 3/4 | 3-1/16 | 3-5/8 | 2.38 | 2.07 | 2.44 | 2-1/2 | 1 | 4 | 5/8 | 4-3/4 | 3.76 | 3.31 | 2.50 |
2-1/2 | 7 | 7/8 | 3-9/16 | 4-1/8 | 2.88 | 2.47 | 2.94 | 2-3/4 | 1-1/8 | 4 | 5/8 | 5-1/2 | 5.02 | 4.37 | 4.05 |
3 | 7-1/2 | 15/16 | 4-1/4 | 5 | 3.50 | 3.07 | 3.57 | 2-3/4 | 1-3/16 | 4 | 5/8 | 6 | 6.26 | 5.32 | 5.63 |
3-1/2 | 8-1/2 | 15/16 | 4-13/16 | 5-1/2 | 4.00 | 3.55 | 4.07 | 2-13/16 | 1-1/4 | 8 | 5/8 | 7 | 7.37 | 6.87 | 8.45 |
4 | 9 | 15/16 | 5-5/16 | 6-3/16 | 4.50 | 4.03 | 4.57 | 3 | 1-5/16 | 8 | 5/8 | 7-1/2 | 9.40 | 8.13 | 10.75 |
5 | 10 | 15/16 | 6-7/16 | 7-5/16 | 5.56 | 5.05 | 5.66 | 3-1/2 | 1-7/16 | 8 | 3/4 | 8-1/2 | 12.00 | 9.40 | 12.00 |
6 | 11 | 1 | 7-9/16 | 8-1/2 | 6.63 | 6.07 | 6.72 | 3-1/2 | 1-9/16 | 8 | 3/4 | 9-1/2 | 15.00 | 12.25 | 17.00 |
8 | 13-1/2 | 1-1/8 | 9-11/16 | 10-5/8 | 8.63 | 7.98 | 8.72 | 4 | 1-3/4 | 8 | 3/4 | 11-3/4 | 24.50 | 18.25 | 28.75 |
10 | 16 | 1-3/16 | 12 | 12-3/4 | 10.75 | 10.02 | 10.88 | 4 | 1-15/16 | 12 | 7/8 | 14-1/4 | 32.50 | 25.50 | 42.50 |
12 | 19 | 1-1/4 | 14-3/8 | 15 | 12.75 | 12.00 | 12.88 | 4-1/2 | 2-3/16 | 12 | 7/8 | 17 | 50.00 | 38.75 | 67.00 |
14 | 21 | 1-3/8 | 15-3/4 | 16-1/4 | 14.00 | 13.25 | 14.14 | 5 | 2-1/4 | 12 | 1 | 18-3/4 | 62.25 | 52.00 | 80.00 |
16 | 23-1/2 | 1-7/16 | 18 | 18-1/2 | 16.00 | 15.25 | 16.16 | 5 | 2-1/2 | 16 | 1 | 21-1/4 | 78.00 | 57.00 | 103.00 |
18 | 25 | 1-9/16 | 19-7/8 | 21 | 18.00 | 17.25 | 18.18 | 5-1/2 | 2-11/16 | 16 | 1-1/8 | 22-3/4 | 86.00 | 74.00 | 127.00 |
20 | 27-1/2 | 1-11/16 | 22 | 23 | 20.00 | 19.25 | 20.20 | 5-11/16 | 2-7/8 | 20 | 1-1/8 | 25 | 104.00 | 94.00 | 166.00 |
24 | 32 | 1-7/8 | 26-1/8 | 27-1/4 | 24.00 | 23.25 | 24.25 | 6 | 3-1/4 | 20 | 1-1/4 | 29-1/2 | 159.00 | 128.00 | 251.00 |
