90 angle titanium elbows
- 6000 Ton / Tons per Month
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | China |
Product Description

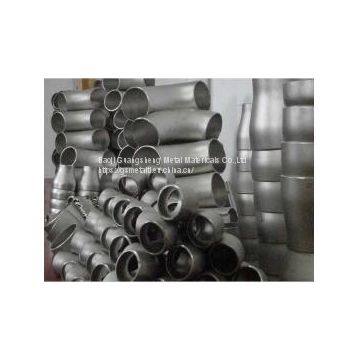

90 angle titanium elbows
QUICK DETAILS:
GS-METAL have lots of stock products to process the titanium pipe-fiitings.
Titanium elbow More details
45 Degree elbow 45E(L) 45E(S)
90 Degree elbow 90E(L) 90E(S)
180 Degree elbow 180E(L) 180e(s)
Others: 30Degree, 60Degree, 120Degree, etc.
The elbow could be supplied as 2 kinds, one for seamless and the other for weld.
Welded titanium elbow
Titanium plate stocked and they will be drawn the line and cut the plate as fan-shaped, then they will be bended as the mould and weld 2pcs together, clean the face and then make the finished suface.
Seamless titanium elbow
Titanium pipe stocked as large quantity, the size smaller than 4'' could be supplied as seamless one.
Material: Gr1, GR2, GR7, GR9, GR12
Specification:
Outer diameter: DN15-1200 NPS 1/2''-48''
Wall thickness: 1-15mm Sch5S-Sch160
Standard: ASTM B363, ASME SB363, ASME B16.9, ANSI B16.9
Technique: Welded, forged, rolled, seamless
Surface: Sand-blasted, polished, pickling, grinding
Quality control:
100% X-Ray detaction(RT)
100% of Surface penetrant inspection (PT)
Application: Chemical, petroleum, machinery, industrial
Other products: cap, stub end, reducer, tee, cross, weldolet
GS-METAL could process the titanium pipe-fitting, like titanium elbow, titanium cap, titanium CON RED, titanium ECC RED, titanium tee, titanium cross, titanium weldolet,
etc. Any kinds of titanium pipe-fittings could be customized and exported.
Welcome any kinds of inquiries and orders.
Seamless titanium elbows manufacturer
TITANIUM ELBOWS | ||||||||
Nom. Pipe Size In Inches | Outside Diameter (OD) | Center To Face (A) | S10 | S40 | ||||
Wall Thickness (T) | Inside Diameter (ID) | Approx. Weight In LBS. | Wall Thickness (T) | Inside Diameter (ID) | Approx. Weight In LBS. | |||
1/2 | .840 | 1-1/2 | .083 | .674 | .08 | .109 | .622 | .10 |
3/4 | 1.050 | 1-1/8 | .083 | .884 | .09 | .113 | .824 | .11 |
1 | 1.315 | 1-1/2 | .109 | 1.097 | .17 | .133 | 1.049 | .20 |
1-1/4 | 1.660 | 1-7/8 | .109 | 1.442 | .29 | .140 | 1.380 | .32 |
1-1/2 | 1.900 | 2-1/4 | .109 | 1.682 | .39 | .145 | 1.610 | .50 |
2 | 2.375 | 3 | .109 | 2.157 | .65 | .154 | 2.067 | .89 |
2-1/2 | 2.875 | 3-3/4 | .120 | 2.635 | 1.08 | .203 | 2.469 | 1.72 |
3 | 3.500 | 4-1/2 | .120 | 3.260 | 1.54 | .216 | 3.068 | 2.75 |
4 | 4.500 | 6 | .120 | 4.260 | 2.72 | .237 | 4.026 | 5.26 |
6 | 6.625 | 9 | .134 | 6.357 | 6.86 | .280 | 6.065 | 13.75 |
8 | 8.625 | 12 | .148 | 8.329 | 13.50 | .322 | 7.981 | 27.00 |
10 | 10.750 | 15 | .165 | 10.420 | 25.00 | .365 | 10.020 | 48.50 |
12 | 12.750 | 18 | .180 | 12.390 | 34.00 | .375 | 12.000 | 75.00 |
14 | 14.000 | 21 | .188 | 13.624 | 46.00 | .375 | 13.250 | 89.00 |
16 | 16.000 | 24 | .188 | 15.264 | 60.00 | .375 | 15.250 | 116.00 |
18 | 18.000 | 27 | .188 | 17.624 | 75.00 | .375 | 17.250 | 154.00 |
20 | 20.000 | 30 | .218 | 19.564 | 126.00 | .375 | 19.250 | 189.00 |
24 | 24.000 | 36 | .250 | 23.500 | 177.00 | .375 | 23.250 | 265.00 |
