Home > Products > CBB65 CAPACITOR > 450V.AC 30uF±5% CBB65 Capacitor for Air Conditioner

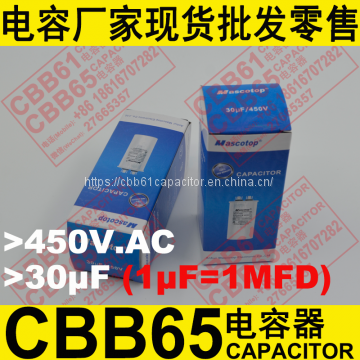

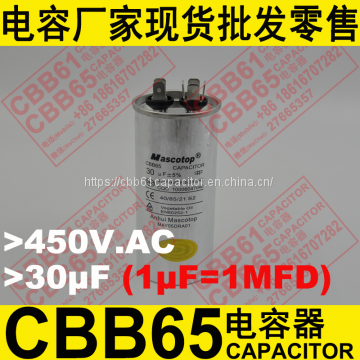

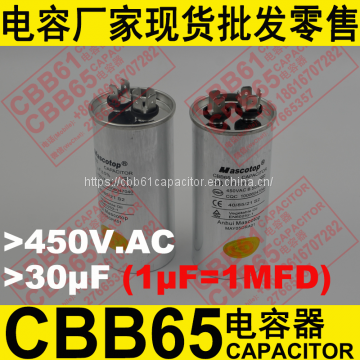

450V.AC 30uF±5% CBB65 Capacitor for Air Conditioner
- shanghai
- T/T
- 7 days
You May Like
-
450V.AC 35uF±5% CBB65 Capacitor for Air Conditioner
-
450V.AC 40uF±5% CBB65 Capacitor for Air Conditioner
-
450V.AC 45uF±5% CBB65 Capacitor for Air Conditioner
-
450V.AC 50uF±5% CBB65 Capacitor for Air Conditioner
-
450V.AC 60uF±5% CBB65 Capacitor for Air Conditioner
-
450V.AC 1.0uF±5% CBB61 Capacitor for Air Conditioner
Product Details
| Brand Name | Mascotop | Place of Origin | China | |
| Model Number | CBB65 | Type | Polypropylene Film Capacitor | |
| Application | Air Conditioner | Rated Voltage | 450V.AC | |
| Operating Temperature | -40~85℃ | Package Type | Other | |
| Capacitance | 30uF±5% (uF=MFD) |
Product Description
Product Structure
Shell Material: Aluminum
Capacitor Lead Ways: Terminal tabs
Features And Uses
The capacitor has advantages of small volume, light weight, low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrying capacity, and steady electricity performance, and reliable safety with inner anti-explosion, etc. Suitable for air conditioning, refrigerator, motor, compressor. Contribute to motor's starting and running.
Technical Parameter
Rated Voltage: 450V.AC
Nominal Capacitance: 30μF (μF=MFD)
Capacitance Tolerance: ±5%
Operating Frequency: 50Hz/60Hz
Climate: 40/85/21
Ambient Temp: -40~85℃
Test Voltage: T-T: 2Un/2S, T-C: 2200V.AC/2S
Dissipation Factor (loss): tan δ≤0.002 (100Hz)
Class of Safety protection: S0、S1、S2、S3
Class of operation: CLASS A(30000H)、CLASS B(10000H)、CLASS C(3000H)
Executing Standards: IEC60252，EN60252，VDE0560-8，UL810，GB/T3667.1-2005
Valid certification: ISO9001、ISO14001、CQC、UL、CE、TUV、VDE、CSA、ROHS
No. | Specification | Shell size |
01 | CBB65, 450V.AC, 20uF, ±5%, 2+4 250# | Φ45*75mm |
02 | CBB65, 450V.AC, 25uF, ±5%, 2+4 250# | Φ45*100mm |
03 | CBB65, 450V.AC, 30uF, ±5%, 2+4 250# | Φ45*100mm |
04 | CBB65, 450V.AC, 35uF, ±5%, 2+4 250# | Φ50*100mm |
05 | CBB65, 450V.AC, 40uF, ±5%, 2+4 250# | Φ50*100mm |
06 | CBB65, 450V.AC, 45uF, ±5%, 2+4 250# | Φ50*110mm |
07 | CBB65, 450V.AC, 50uF, ±5%, 2+4 250# | Φ50*110mm |
08 | CBB65, 450V.AC, 60uF, ±5%, 2+4 250# | Φ50*125mm |
09 | CBB61, 450V.AC, 1uF, ±5%, 2+2 187# | 12*26*37 |
10 | CBB61, 450V.AC, 1.2uF, ±5%, 2+2 187# | 12*26*37 |
11 | CBB61, 450V.AC, 1.5uF, ±5%, 2+2 187# | 15*26*37 |
12 | CBB61, 450V.AC, 2uF, ±5%, 2+2 187# | 15*26*37 |
13 | CBB61, 450V.AC, 2.5uF, ±5%, 2+2 187# | 18*28*37 |
14 | CBB61, 450V.AC, 3uF, ±5%, 2+2 187# | 18*28*37 |
15 | CBB61, 450V.AC, 3.5uF, ±5%, 2+2 187# | 18*29*47 |
16 | CBB61, 450V.AC, 4uF, ±5%, 2+2 187# | 18*29*47 |
17 | CBB61, 450V.AC, 4.5uF, ±5%, 2+2 187# | 18*34*47 |
18 | CBB61, 450V.AC, 5uF, ±5%, 2+2 187# | 18*34*47 |
19 | CBB61, 450V.AC, 6uF, ±5%, 2+2 187# | 22*34*47 |
20 | CBB61, 450V.AC, 7uF, ±5%, 2+2 187# | 22*34*47 |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?A: Generally it is 15-30 days, it's according to quantity.
Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge, but need you pay the freight.
Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
