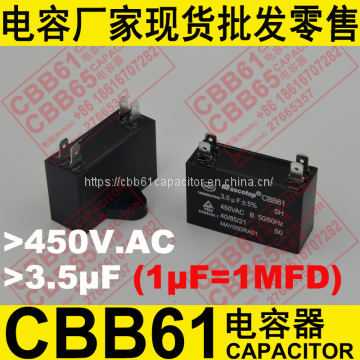

450V.AC 3.5uF±5% CBB61 Capacitor for Air Conditioner
- shanghai
- T/T
- 7 days
You May Like
-
450V.AC 4.0uF±5% CBB61 Capacitor for Air Conditioner
-
450V.AC 4.5uF±5% CBB61 Capacitor for Air Conditioner
-
450V.AC 5.0uF±5% CBB61 Capacitor for Air Conditioner
-
450V.AC 6.0uF±5% CBB61 Capacitor for Air Conditioner
-
450V.AC 7.0uF±5% CBB61 Capacitor for Air Conditioner
-
CBB61 Capacitor for Air Conditioner
Product Details
| Brand Name | Mascotop | Place of Origin | China | |
| Model Number | CBB61 | Type | Polypropylene Film Capacitor | |
| Application | Air Conditioner | Rated Voltage | 450V.AC | |
| Operating Temperature | -40~85℃ | Package Type | Other | |
| Capacitance | 3.5uF±5% (uF=MFD) |
Product Description
Product Structure
Shell Material: ABS, PP
Capacitor Lead Ways: Terminal tabs
Features And Uses
The capacitor has advantages of low dissipation, high insulation resistance, good self-healing character, and steady electricity performance, anti-striking current, strong over-carrying capacity etc, in generally, it uses rectangular flame retardant shell and epoxy resin to seal. Suitable for electric fan, exhaust fan, water pump, and Electric sewing machine etc products. Contribute to motor’s starting and running.
Technical Parameter
Rated Voltage: 450V.AC
Nominal Capacitance: 3.5μF (μF=MFD)
Capacitance Tolerance: ±5%
Operating Frequency: 50Hz/60Hz
Climate: 40/85/21
Ambient Temp: -40~85℃
Test Voltage: T-T: 2Un/2S, T-C: 2200V.AC/2S
Dissipation Factor (loss): tan δ≤0.002 (100Hz)
Class of Safety protection: S0, S1, S2, S3
Class of operation: CLASS A(30000H), CLASS B(10000H), CLASS C(3000H)
Executing Standards: IEC60252，EN60252，VDE0560-8, UL810, GB/T3667.1-2005
Valid certification: ISO9001, ISO14001, CQC, UL, CE, TUV, VDE, CSA, ROHS
No. | Specification | Shell size |
01 | CBB65, 450V.AC, 20uF, ±5%, 2+4 250# | Φ45*75mm |
02 | CBB65, 450V.AC, 25uF, ±5%, 2+4 250# | Φ45*100mm |
03 | CBB65, 450V.AC, 30uF, ±5%, 2+4 250# | Φ45*100mm |
04 | CBB65, 450V.AC, 35uF, ±5%, 2+4 250# | Φ50*100mm |
05 | CBB65, 450V.AC, 40uF, ±5%, 2+4 250# | Φ50*100mm |
06 | CBB65, 450V.AC, 45uF, ±5%, 2+4 250# | Φ50*110mm |
07 | CBB65, 450V.AC, 50uF, ±5%, 2+4 250# | Φ50*110mm |
08 | CBB65, 450V.AC, 60uF, ±5%, 2+4 250# | Φ50*125mm |
09 | CBB61, 450V.AC, 1uF, ±5%, 2+2 187# | 12*26*37 |
10 | CBB61, 450V.AC, 1.2uF, ±5%, 2+2 187# | 12*26*37 |
11 | CBB61, 450V.AC, 1.5uF, ±5%, 2+2 187# | 15*26*37 |
12 | CBB61, 450V.AC, 2uF, ±5%, 2+2 187# | 15*26*37 |
13 | CBB61, 450V.AC, 2.5uF, ±5%, 2+2 187# | 18*28*37 |
14 | CBB61, 450V.AC, 3uF, ±5%, 2+2 187# | 18*28*37 |
15 | CBB61, 450V.AC, 3.5uF, ±5%, 2+2 187# | 18*29*47 |
16 | CBB61, 450V.AC, 4uF, ±5%, 2+2 187# | 18*29*47 |
17 | CBB61, 450V.AC, 4.5uF, ±5%, 2+2 187# | 18*34*47 |
18 | CBB61, 450V.AC, 5uF, ±5%, 2+2 187# | 18*34*47 |
19 | CBB61, 450V.AC, 6uF, ±5%, 2+2 187# | 22*34*47 |
20 | CBB61, 450V.AC, 7uF, ±5%, 2+2 187# | 22*34*47 |
