Uni-tube Central Loose Fiber Cable GYXTW
Negotiable
/ Meter
10 Meters(Min.Order)
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Other
You May Like
Product Details
| Place of Origin | China | Model Number | GYXTW |
Product Description

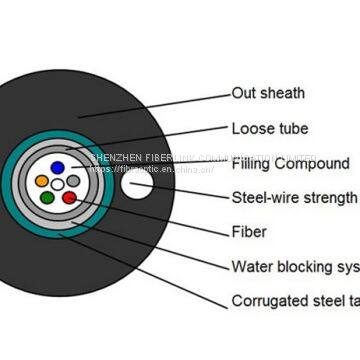

The Uni-tube central loose outdoor cable GYXTW is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of corrugated steel tape. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Features
Fiber Allocation Scheme
| Fiber number | Tube number | Fiber per tube | Fiber type |
| 2-24 | 1 | 2-24F/Tube | OS1, OS2, OM1, OM2, OM3,OM4 |
Cable construction details
| Items | Description | |
| Number of fiber | 2-24cores | |
| Moisture Barrier | Water blocking system | |
| Loose tube | material | PBT |
| diameter | Ф2.2(outer/inner) | |
| Tube-filling | material | Tube filling compound |
| Steel wire | size | 0.8mm |
| Number | 2 | |
| Outer sheath | material | PE |
| diameter | 1.8±0.2mm | |
Applications:
This specification covers the general requirements of Central Loose Tube Outdoor Cable for aerial or duct.
Standard color of fiber and tube
The color code of the fibers shall be in accordance with the table as below:
| Standard Color Identification According to EIA/TIA 598B | ||||||
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Cable Mechanical characteristic
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load （N/100mm) | Minimum Bending Radius (MM) | Storage temperature | |||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 2 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 4 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 6 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 8 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 10 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 12 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
