DY-CTRE200 Intelligent Dry Block Analyzer

Display

7-inch color touch screen

Resolution

0.001

Display

℃/mV/Ω

Collection Accuracy

0.02%

Input Channel

8 channels (including independent standard channels: 3, inspection channels: 5)

Adapt Sensor Type

①Industrial four-wire Pt100 thermal resistance sensor

②Industrial thermocouple sensors, K, E, J, T, B, N, R, S

③Standard platinum resistance thermometer (Pt25)

④Standard thermocouple thermometer

Measuring Range

Thermal resistance: -100℃-500℃

Thermocouple: 0℃-1600℃

Mode Switchable

Thermal resistance mode: 3 standard platinum resistors (Pt25) + 5 PT100

Thermocouple mode: 1 standard thermocouple + 5 thermocouples (gradient numbers can be different)

Inspection Inspection Time

1 second/channel

Function

①Data recording and query functions, the recording time interval can be set

②The channel has temperature display, resistance display, 3-minute and 10-minute fluctuation display

③Each channel has a deviation correction function to facilitate internal deviation correction

④ 3 standard channels, 1-3 can measure standard platinum resistance thermometers, and channel 3 can also measure standard thermocouples.

⑤Curve display, can display the temperature range automatically or manually.

⑥5 inspection channels, which can simultaneously detect Pt100 thermal resistance sensors or industrial thermocouple sensors, K, E, J, T, B, N, R, S (thermocouples can be mixed)

Upgrade Function

Matching Dry Body Furnace

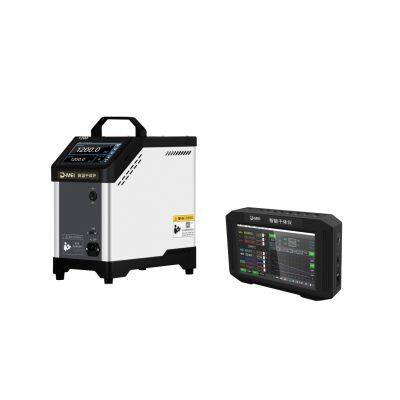

This equipment is equipped with an intelligent dry-body furnace, which can realize wireless control, set the temperature in real time, and display the current temperature and temperature fluctuation of the dry-body furnace.

Interfaces and Protocols

Standard Configuration: USB type-C interface Optional: RS-485

Standard: modbus-RTU communication protocol

Dimensions

(length × width × height)

220mm×45mm×145mm

Weight

≤2kg

Power Supply

10000mAH lithium battery, charging mode

Operating Temperature

15℃-25℃，10%RH-95%RH

Cold Junction Compensation

External or channel compensation, the external PT100 reference terminal is used for thermocouple acquisition, and the reference terminal can be turned on or off

Standard Accessories

Host, USB expansion port, wireless mouse, charger, 8 signal adapter cables, instrument carrying case
