358 Welded Wire Mesh Fence Panels , Garden Wire Fencing 3 Meter Height

76.2 mm × 12.7 mm Opening Modern High Security Fencing System 358 Mesh Fence

We are specialized company operating in the design, manufacture and installation of high security fencing systems for civil, industrial and military projects. Our company offers the most effective and affordable safety fencing solutions. Our product range includes 358 mesh fencing, 3510 mesh fence, anti climb fence, clear view fencing, twin wire fence, paladin fence, top roll mesh panels, fence post and other accessories.

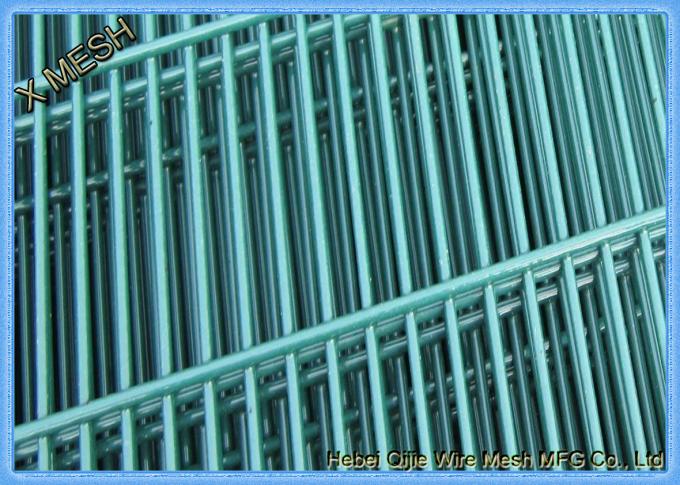

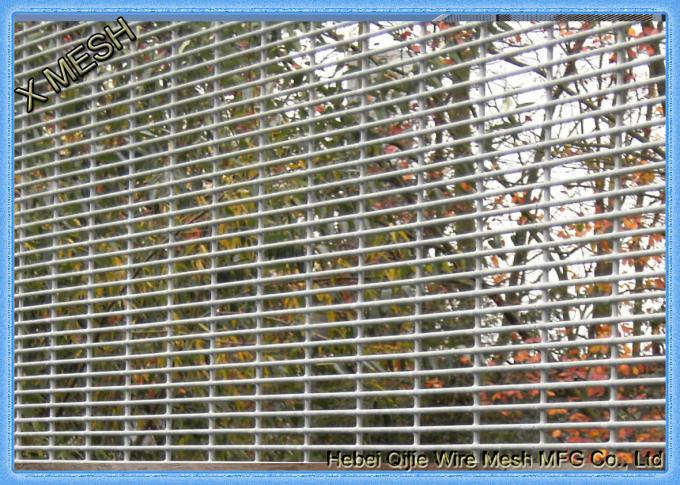

358 mesh fence is featured by the design that combines the high security and perfect aesthetic effect. Panel sections are welded wire mesh with small rectangular openings 76.2 mm × 12.7 mm made from 4 mm galfan steel wires, and welded well at each intersection, then PVC powder coating with green RAL 6005 or black RAL 9005 color, which provides a protective anti-corrosion property for 10 years. The high security 358 welded mesh fencing is extremely difficult to penetrate and difficult to attack by using conventional tools. Because of the anti-climbing and anti-cutting features, 358 welded mesh security fencing is also called anti climb fence. It is usually used for fencing where require high levels of security, such as airport, prison and military establishments, so 358 mesh is also called prison fencing. This kind of welded panel width is 2515 mm and height from 2007 mm to 3302 mm. Several panels can be installed on the top of each other, thus the 358 mesh fencing can achieve a total height of 6300 mm.

There are two enhanced versions of 358 mesh: 2D security fencing and 3D security fencing. 2D fence panels increase strength by 6 mm vertical wire and additional 4 mm wires at 152.4 mm centers on the inside face. It has double horizontal wires at 152.4 mm centers. This structure makes the fence panel very rigid and has a higher level of strength and security than common 358 mesh fence. 2D security fencing is widely used for schools, industrial sites, infrastructure, and other high security areas. 3D security fence enhanced its safety and appearance level with pressed horizontal "V" shaped beams. It is a unique barrier solution which combines a high level of safety requirement and aesthetic effect.

Common Panel Size:

Materials: Heavy Low Carbon Wire, Heavy Mild Steel Wire or Stainless Steel Wire
Wire Dia.: 3.85/4mm, 4.0/4.15mm
76.2mm (3") x 12.7mm (0.5") welded at each intersection
Horizontal wires: 4mm diameter at 12.7mm centres
Vertical wires: 4mm diameter at 76.2mm centres
Fence Height: 1800, 2000, 2155, 2400, 2515, 3000mm or 4feet to 8ft
Panel Width: 8'-2 1/2"

Finish

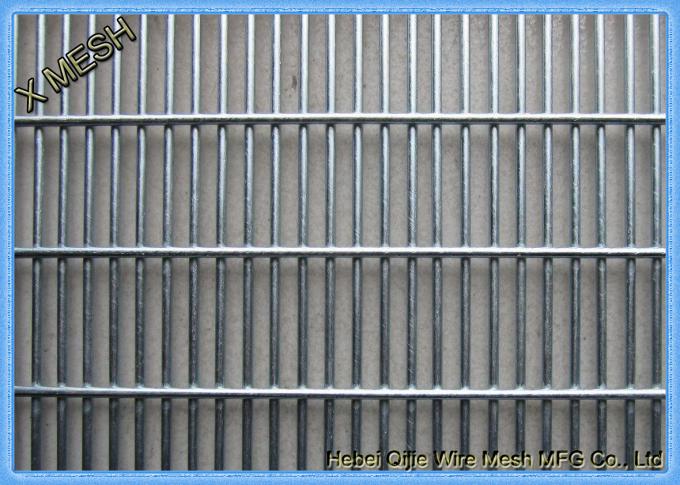

Forms of corrosion resistance include electric galvanizing, hot-dipp galvanizing, PVC spraying and PVC coating.
Colours: Standard colours are Green RAL6005, Black RAL9005 and Yellow RAL1021.
Other colours are available on request

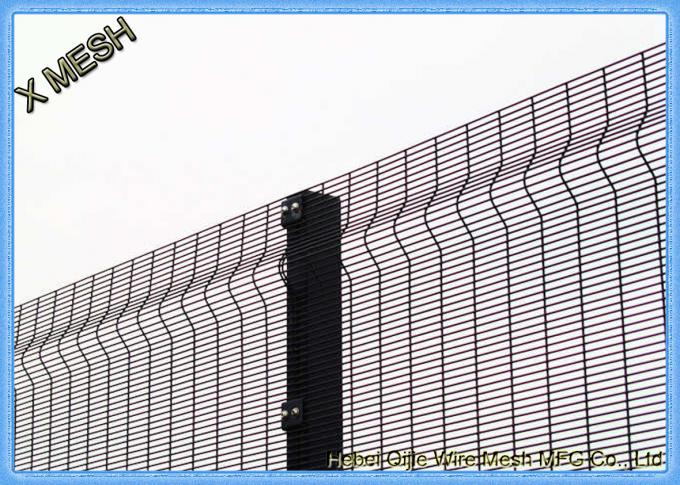

Installation of Mesh Panels to Posts:

The mesh panels are attached to tubular ( pipe ) steel posts of 1-1/2"*2-3/8" OR 1-1/2"*3". The panels can be attached to the face of the posts or in between posts by using of brackets.

80x60x2.5mm RHS intermediate posts pitched at 2.525m centres 80x80x3mm RHS corner posts.

Utilise steel fixing brackets to secure panels to the front face of the posts.
Panels are butt jointed at each post for securing with double-drilled fixing brackets, posts are fitted with twin rows of M8 threaded inserts

Posts types: C post, round post and square posts, fence posts with V arm supports.

C post: 62mmx 83mmx3mm
Round Post: outside diameter: 80mm x 3mm
Rectrangular or square post: 60mm x 80mm x 3mm; 60mm x 120mm x 3mm
Post length: Standard: 2.3mm to 4m. Or custom sizes.

Material: Square steel pipe, round pipe, c type steel
Finish: Hot dipped galvanized, pvc coated
Polyester coating color: Dark green, black, etc.The posts are polyester powder coated with a galvanised substrate in the accordance with Euro norm 10147 (min. 60 micron)

installation of mesh panels to posts

Options include:
Single coil razor wire;
Cross coil razor wire;
Straight line razor wire;
Razor wire flat wrap coils.

razor wire for 358 mesh fence

358 Mesh High Security Fence System ( Welded Mesh Panels, Posts and Concertina Wire Tops )

358 mesh fence-MF0001

358 mesh fence-MF0002

358 mesh fence-MF0003

358 mesh fence-MF0004
