Home > Products > Titanium material > Supplier DN100-800 Dia. Welding EFW Pipe Fittings

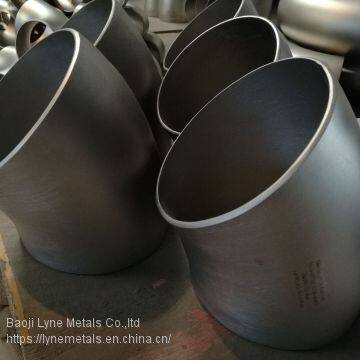

Supplier DN100-800 Dia. Welding EFW Pipe Fittings
- shanghai
- T/T L/C Cash Other
- 20 days
You May Like
-
GR2 GR7 GR12 TIG Welding Tube or Pipe for Titanium or Nickel ASTM B363
-
Ti GR5 AWS A5.16 Welding Wire or Filler
-
GR4 Titanium Rod Dental Implants
-
Supplier TIG Titanium Welded Tube of ASTM B862 Titanium Pipe
-
Supplier Titanium Heat Exchange Pipe ASTM B338 GR2 AND U Style Pipe
-
WPT2 Titanium 90 or 180 Degree Elbow TIG 48
Product Details
| Brand Name | LYNE | Place of Origin | China | |
| Model Number | 2 | Material | TITANIUM | |
| Length | 1000-9000MM | Application | Industrial | |
| Technique | Welded | Standard | ASTM B862 | |
| Grade | gr2 | Wall Thickness | Sch10-80s | |
| Outer Diameter | DN100-1200 | Inside Diameter | NB100-NB800 |
Product Description
Titanium pipe /tube
1. Grades:A) Gr1 (Cp Titanium, Low oxygen) B) Gr2 (Cp Titanium, standard Oxygen) C) Gr5(Ti-6Al-4V)D) Gr7(Ti-Pd, Standard Oxygen)E) Gr9(Ti-3Al-2.5V)F) Gr11(Ti-Pa, Low Oxygen)G) Gr12(Ti-Mo-Ni)H) Gr16(Ti-Pd, Standard Oxygen)I) Gr17(Ti-Pd, Low Oxygen)
2. Products treatment: Hot rolled, Annealed, Pickled( according to cutomers' requirement.
3. Physical property of all titanium Grades we could provide:
Material | Tensile strength(MPa) | Yield strength(MPa) | Elongation (%) |
Gr1 (CP1 Titanium, low oxygen) | ≥240 | ≥138 | ≥24 |
Gr2 (CP2 Titanium, standard Oxygen) | ≥345 | ≥275 | ≥20 |
Gr3 (CP3 Titanium, standard Oxygen) | ≥450 | ≥380 | ≥18 |
Gr7 (Titanium, 0.12-0.25%Pd) | ≥345 | ≥275 | ≥15 |
Gr9 (Ti-3Al-2.5V) | ≥620 | ≥483 | ≥10 |
Gr11(Ti-Pd0.12-0.25%, low Oxygen) | ≥240 | ≥138 | ≥24 |
Gr12(Ti-0.3%Mo-0.8%Ni) | ≥483 | ≥345 | ≥18 |
Gr16(Ti+Pd0.04-0.08%, standard Oxygen) | ≥345 | ≥275 | ≥20 |
Gr17(Ti+Pd0.04-0.08%, low Oxygen) | ≥240 | ≥138 | ≥24 |
4. Processes of titanium:
