Home > Products > titanium Clad material > Supplier TiCu /CuNi Alloy Plate and Pipe
Supplier TiCu /CuNi Alloy Plate and Pipe
- shanghai port
- T/T L/C D/P D/A Cash
- 5 days
You May Like
Product Details
| Brand Name | lyne metals | Place of Origin | China | |
| Model Number | Titanium | Application | pipe fittings | |
| Technique | Rolling | Grade | GR1 ,GR2,GR5,GR7,GR12 | |
| Dimensions | DN15-DN400 | Powder Or Not | Not Powder | |
| Ti Content (%) | 99.6 |
Product Description

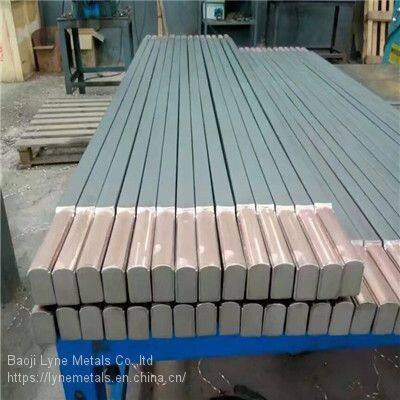

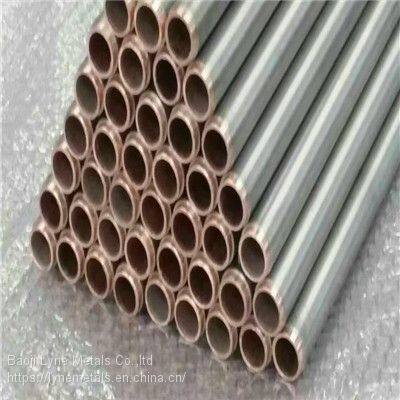

Titanium copper clad material and CuNi alloy pipe
Features:Corrosion Resistant Bus Bar, Acid&Alkali resistance,Complete Metallurgical Bond,Superior Conductivity,Environmentally Friendly,Custom Thickness Available.
Technology:Explosion Rolling
Application: Electrolysis, Plating, Hydrometallurgy,Oil and Chemcial indurty, etc
Titanium clad style :
Titanium Clad Copper,Titanium Clad Aluminum,Stainless Clad Copper,Zirconium Clad Copper,Titanium Clad Nickel etc.
Features:Corrosion Resistant Bus Bar, Acid&Alkali resistance,Complete Metallurgical Bond,Superior Conductivity,Environmentally Friendly,Custom Thickness Available.
Technology:Explosion Rolling
Application: Electrolysis, Plating, Hydrometallurgy,Oil and Chemcial indurty, etc
Mechanical Properties
Grade |
Status | Tensile Strength | Yield Strength | Elongation | Area of Reducation | ||
Ksi | Mpa | Ksi | Mpa | % | |||
≥ | |||||||
GR1 |
Annealed | 35 | 240 | 25 | 170 | 24 | 30 |
GR2 | 50 | 345 | 40 | 275 | 20 | 30 | |
GR3 | 65 | 450 | 55 | 380 | 18 | 30 | |
GR4 | 80 | 550 | 70 | 483 | 15 | 25 | |
GR5 | 130 | 895 | 120 | 828 | 10 | 25 | |
TI-6AL-4VELI | 125 | 860 | 115 | 795 | 10 | 25 | |
GR6 | 120 | 828 | 115 | 483 | 15 | 25 | |
GR7 | 50 | 345 | 40 | 275 | 20 | 30 | |
GR9 | 90 | 620 | 70 | 483 | 15 | 25 | |
GR11 | 35 | 240 | 25 | 170 | 24 | 30 | |
GR12 | 70 | 483 | 50 | 345 | 18 | 25 | |
