Home > Products > Titanium material > Titanium Wire or Filler Dia. 2.0*916mm Straight Wire or Coil

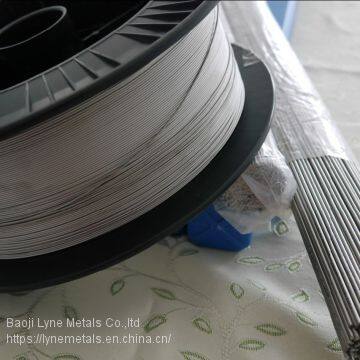

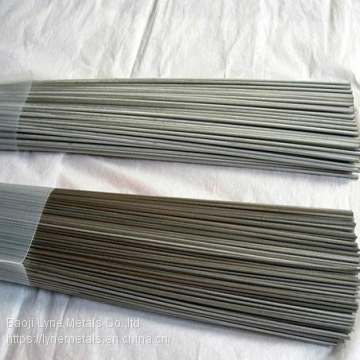

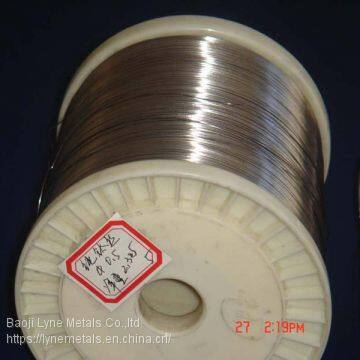

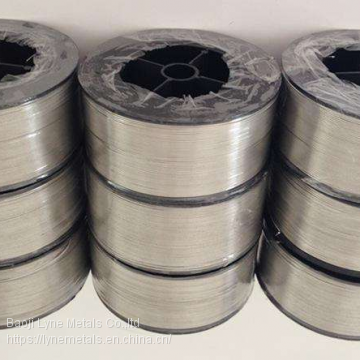

Titanium Wire or Filler Dia. 2.0*916mm Straight Wire or Coil
US$ 25.6 - 32.3
/ Kilogram
1 Kilogram(Min. Order)
- shanghai
- T/T L/C Other
- 3 days
You May Like
-
Supplier DN100-800 Dia. Welding EFW Pipe Fittings
-
GR2 GR7 GR12 TIG Welding Tube or Pipe for Titanium or Nickel ASTM B363
-
Ti GR5 AWS A5.16 Welding Wire or Filler
-
GR4 Titanium Rod Dental Implants
-
Supplier TIG Titanium Welded Tube of ASTM B862 Titanium Pipe
-
Supplier Titanium Heat Exchange Pipe ASTM B338 GR2 AND U Style Pipe
Product Details
| Brand Name | lyne | Place of Origin | China | |
| Model Number | 6 | Application | industrial | |
| Grade | gr7/gr12 | Wire Gauge | 1/8 | |
| Ti (Min) | 99.6 | Strength | 380 |
Product Description
Titanium Wire /Fillers
ASTM B863 titanium & titanium alloy wires
1. Product name: Titanium wire, Titanium silk
2. Grade: Gr1, Gr2, Gr3, Gr4, Gr5, Gr6, Gr7, Gr9, Gr12, Gr23
3. Standard: ASTM B348 ASTMB863 ASTM F4928 ASTM F67 ASTM F136
4. Dimentions:Dia 0.2 - 7.0mm
5. Condition: Thermal processing condition (R), Cold-work condition (Y),
Annealed (M)
6. Surface: As-rolled, pickling or polished to shinny
Titanium wire, CP Ti wire used for redrawing, welding, mesh weaving,
making optical frame, needles, electrode, etc.
making optical frame, needles, electrode, etc.
Titanium is primarily alloyed with aluminum, molybdenum, iron and vanadium,
as well as other metals. These alloys are used in applications in which lightweight
strength and extreme heat resistance are required, such as in the aerospace industry,
chemical, petrochemical and general industry.
as well as other metals. These alloys are used in applications in which lightweight
strength and extreme heat resistance are required, such as in the aerospace industry,
chemical, petrochemical and general industry.
This alloy is permanent, provides good coverage and is an excellent reflector of
infrared radiation.
infrared radiation.
Feature of titanium wire
· High strength;
· Fine corrosion resistance;
· Low density, light weight;
· high/low temperature resistance;
· High resistance to strong acid.alkali.
Mechanical properties in room temperature
Grade | Tensile strength | Provision of non-proportional | Break | Duction of cross sectional area |
Gr1 | 240 | 140 | 24 | 30 |
Gr2 | 400 | 275 | 20 | 30 |
Gr3 | 500 | 380 | 18 | 30 |
Gr4 | 580 | 485 | 15 | 25 |
Gr5 | 895 | 825 | 10 | 25 |
Gr6 | 785 | 680 | 10 | 25 |
Gr7 | 370 | 250 | 20 | 25 |
Gr12 | 485 | 345 | 18 | 25 |
Gr23 | 830 | 760 | 10 | 15 |
