China underwater gas tight machine for weld stainless steel pipe tube
USD $30,000 - $40,000
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- Shanghai China
- T/T Credit Card
You May Like
-
Welded Pipe Inside Pressure Testing Machine by pneumatic System
-
Automatic Underwater Welding Pipe Inside Testing Machine Controlled By Air Pressure
-
China special designed underwater air tight water press test machine for welding pipe
-
SS stainless steel pipe inside surface polishing machine for pipe 20mm-114.3mmmm
-
Automatic Pipe Internal Grinding Machine with PLC Control
-
Automatic stainless steel tube inside surface polishing machine with two stations
Product Details
| Brand Name | CARE | Place of Origin | Jiangsu, China | |
| Model Number | ZQ-1001 Underwater gas tight machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China underwater gas tight machine for weld stainless steel pipe tube
The machine is made to test the inside of steel tube/pipe pressure. It is using water to inspect whether the steel has been welded properly or not or can be figure out the steel is flawed or not and also what will be the maximum pressure that can sustain for the stainless steel tube/pipe to reach consumer requirement.
| Main specification | ||||||
| 1. Test Tube Diameter: 12.7 ~ 76.2mm | ||||||
| 2. Test Tube Length: 6.1 m ± 1 0mm(Can customize the machine according to tube length) | ||||||
| 3. Detection speed: Two station 1pc/ 2 min | ||||||
| Three-position 1pc / 1.5 min | ||||||
| 4. Test pressure: 0.69 MPa; required to provide more than 0. 69 MPa external gas source, the device itself without booster function. | ||||||
| 5. Sealing way: outer radial seal | ||||||
| 6. Pneumatic clamping, V-shaped clamp | ||||||
| 7. Underwater airtight machine: 1 9 ~ 76.2mm average double station Or all three stations. | ||||||
| Working process | ||||||
| According to the unit test sequence and function, the unit can be divided into fixed and try to press the seat, stand activities, pneumatic unit and electronic control devices. By both sides finished steel tube was sealed and joined the clean air and sank sink pressurized to keep the pressure testing standards after a period of time to verify that there is relief, leaks, cracks and other defects. | ||||||
| Production capacity | ||||||
| Diameter | Test length | Detection speed | Production time(h) | Annual (branch) | ||
| 1 9~76.2mm | Each 6 m | 1/2 min | 7000 | 210 000 | ||
| 19~76.2mm | Each 6 m | 1 / 1.5 min | 7000 | 280 000 | ||

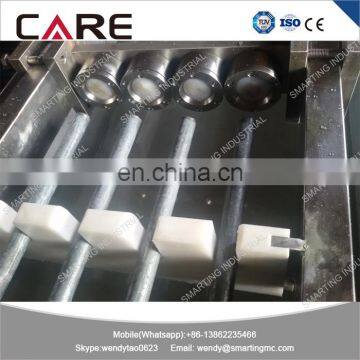

| Machine photo | ||||||
Main parts
