Single head pneumatic pipe beveling machine with pneumatic control
- Shanghai China
- T/T Credit Card
You May Like
-
Single head pneumatic pipe end finish machine for deburring
-
Single head hexagon bar chamfering machine with high speed
-
Single head copper tube end facing machine
-
EF-AC/80 Inside and outside beveling round rod chamfering machine
-
Automatic pneumatic chamfer machine of double end for steel pipes/tubes/rods
-
Double side tube chamfering machine with selectable auto tube loading facility
Product Details
| Brand Name | CARE | Place of Origin | Jiangsu, China | |
| Model Number | EF-PV/52 pneumatic pipe beveling machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Single head pneumatic pipe beveling machine with pneumatic control
Application:
This machine is controlled by pneumatic. Feeding / retracting and clamping by pneumatic, loading by hand. It has 2-step feed speed. The first step feed is high speed, then the second step feed speed is adjustable to produce clean and smooth cutting results. Changing sizes of cut are conveniently made by simply adjusting and changing cutter head and clamp.
Main characteristics:
1. Hand feeding, automatic blade driving and retracting, high speed, doubles the production capacity.
2. Fits for endface interior and external angles of pipes and bars, can finish the riveting and coping in a single time with quickness and good accuracy.
3. To ensure the stability of the centerline between the processing piece and saw plate, the clamping die and saw plate are precisely designed and can finish the processing evenly at a single time.
4. The saw plate is specially designed, saw blade standardized, the adjustment of blade is easy and quick.
Main parameter:
| Specification/Model | EF-PV/52 | EF-AC/80 |
| Main motor power | 1.5KW | 2.2kw |
| Main axis speed | According to the pipe material | |
| Processing diameter | 9-52mm | 30-82mm |
| Processing external angle | 9-25mm | 20-50mm |
| compressed air | 6-8GS/cm2 | 6-8GS/cm2 |
| Size | 450mmx 400mm x 800mm | 500mmx 400mm x 850mm |
| Weight | 300kg | 400kg |

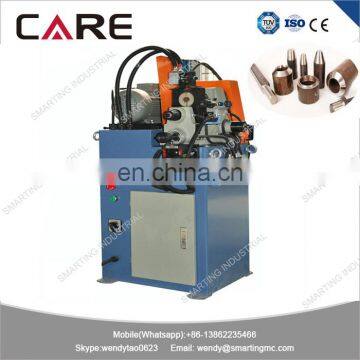

Machine photo
Chamfer outside angle
Chamfering inside angle
Chamfer facing angle
Pipe/rod sample
To know more information, please contact us at any time.
