Home > Products > Pipe bending machine > China hydraulic used pipe bending machine with quality guarantee
China hydraulic used pipe bending machine with quality guarantee
USD $10,500 - $11,500
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- Shanghai China
- T/T Credit Card
You May Like
-
Double head aluminum luggage shell bending machine with servo controls
-
Double side Aluminum profile bending machine for tooling box frame and aluminum trolley luggage frame
-
DW75CNC Automatic CNC pipe bending machine stainless steel tube bending popular for automobile parts
-
DW89CNC Automatic mandrel pipe bending machine cnc, hydraulic tube bender, electric hydraulic pipe bender
-
Manual nc hydraulic pipe bending machine, stainless steel tube bending, hydraulic cold tube bending machine with PLC control
-
Hydyaulic hand operated manual bending machine, manual stainless steel pipe bending machine, pipe bending machine manual
Product Details
| Brand Name | CARE | Model Number | DW75NC used pipe bending machine |
Product Description
China hydraulic used pipe bending machine with quality guarantee
Main specification
1) NC Control Unit,imported electric and hydraulic elements.
2) Direct Acting Hydraulic clamping.
3) Easy Operator Interface and Easy Data Input by English.
4) Large Program Storage Capacity.
5) Automatically lock angle and the bending accuracy is high.
6) Angle changing is controlled by coder.
7) The foot-switch with multiple-function:automatic start,emergency stop and resuming,The safety is high.
8) Self Diagnosis and Error Messages
9) Suitable materials:Steel pipe,Stainless steel pipe,copper pipe,aluminum pipe,iron and others.
Technical parameter
| Specification/Model | Unit | DW75NC |
| Max bending capability | mm | Φ75×3.5t |
| Max bending radius | mm | R300 |
| Min bending radius | mm | R25 |
| Max bending angle | Degree | 185 |
| Max effective distance of mandrel | mm | 2700 |
| Control System | NC Control | |
| Max elbow bend pipe | Unit | 16 |
| Max storable sections | Unit | 16×16 |
| Motor power | KW | 7.5 |
| Max. Hydraulic Pressure | Mpa | 14 |
| Hydraulic System Control | Electromagnetic Valve | |
| Oil Tank Capacity | L | 150 |
| Size | Cm | 450×108×123 |
| Weight of Machine | Kg | ≈2680 |

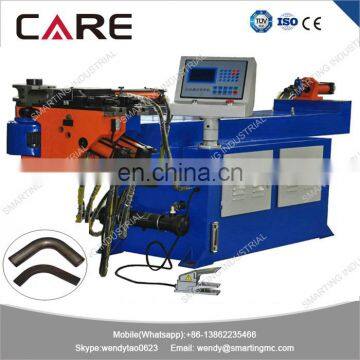

Machine photo
Standard tool: 45# steel
Optional tool: Cr12 material
Stainless steel pipe: mandrel & wiper- Aluminum copper alloy steel
Aluminum pipe: bend die, clamp die and pressure die - nylon material
Pipe samples
Packaging & Shipping
Contact us
