Product Details
| Brand Name | CARE | Model Number | DW115NC large diameter pipe bending machine |
Product Description
DW115NC hydraulic large diameter pipe bending machine for max pipe 4.5"
Main specification
1) NC Control Unit,imported electric and hydraulic elements.
2) Direct Acting Hydraulic clamping.
3) Easy Operator Interface and Easy Data Input by English.
4) Large Program Storage Capacity.
5) Automatically lock angle and the bending accuracy is high.
6) Angle changing is controlled by coder.
7) The foot-switch with multiple-function:automatic start,emergency stop and resuming,The safety is high.
8) Self Diagnosis and Error Messages
9) Suitable materials:Steel pipe,Stainless steel pipe,copper pipe,aluminum pipe,iron and others.
Technical parameter
Specification/Model | Unit | DW115NC | Remark |
Max bending capability | mm | Φ115.8×7.0t |
|
Max bending radius | mm | R650 | |
Min bending radius | mm | R50 | |
Max bending angle | Degree | 185 | |
Max effective distance of mandrel | mm | 4200 | |
Control System |
| NC Control | |
Max elbow bend pipe | Unit | 16 | |
Max storable sections | Unit | 16×16 | |
Motor power | KW | 22 | |
Max. Hydraulic Pressure | Mpa | 14 | |
Hydraulic System Control |
| Electromagnetic Valve | |
Oil Tank Capacity | L | 120 | |
Size | Cm | 520×140×170 | |
Weight of Machine | Kg | ≈8000 |

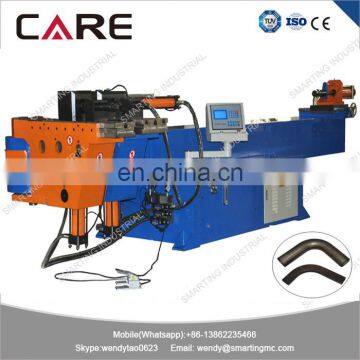

Machine photo
More models in STOCK
Standard tool: 45# steel
Optional tool: Cr12 material
Stainless steel pipe: mandrel & wiper- Aluminum copper alloy steel
Aluminum pipe: bend die, clamp die and pressure die - nylon material
Pipe samples
To know more information, please contact us.
