DW75CNC China hydraulic cnc pipe bender machine, used tube bending machines for sale, square pipe bending machine

DW75CNC China hydraulic cnc pipe bender machine, used tube bending machines for sale, square pipe bending machine

Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe etc.

Recommended application industry:
automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.

Main specification

1. Interactive PLC touch screen offers easy access to auto and manual operating modes.

2. System diagnostics and multiple language capability.

3. Standard clockwise bending direction.

4. Fully hydraulic clamping on clamp die and pressure die.

5. Drop-way hydraulic clamping.

6. Direct acting hydraulic pressure die with adjustable speed valve.

7. Maximum 500 sets of program storage,Maximum 32 bends for each program.

8. With Independent programmable speeds Y, B, and C axes.

9. Programmable material spring back settings for each bend angle.

10. Automatic release of tube prior to final bend.

11. Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.

12. Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.

13. Foot Pedal Cycle start.

14. With Air Cooling System.

15. One set of Tooling for Draw Bending.

16. Wiper die Bracket.

17. 1 Mandrel Rod.

18. Operation and Maintenance Manual.

19. Tool Box with Adjusted Tools.

20. Electric: As required

Technical parameter

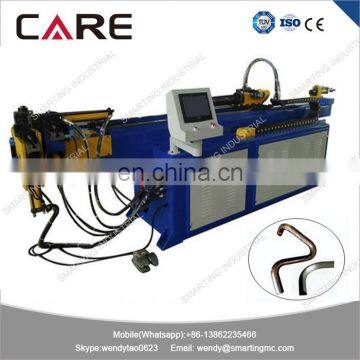

Machine photo

Main parts

Standard tool: 45# steel

Optional tool: Cr12 material

Stainless steel pipe:  mandrel & wiper- Aluminum copper alloy steel

Aluminum pipe:  bend die, clamp die and pressure die - nylon material

More models in STOCK

Pipe samples

To know more information, please contact us.
