SW38A Double Head Hydraulic Pipe Bender Tube Bending Machine for max pipe 1.5"
- 1000 per Month
- T/T Credit Card
You May Like
-
SW38A Rotating type double side tube bender machine for steel furniture making
-
Vertical type hydraulic 3 roll tube bending machine for big radius
-
DW75CNC China hydraulic cnc pipe bender machine, used tube bending machines for sale, square pipe bending machine
-
SW38A double ends bending machine popular for school table and chair
-
Multi Tool Stack cnc square tube bending machine, automatic rolling pipe bending machine, pipe bending machine price
-
DW38CNC Automatic pipe bending machine popular for wheelbarrow frame
Product Details
| Brand Name | CARE |
Product Description
SW38A Double Head Hydraulic Pipe Bender Tube Bending Machine for max pipe 1.5"
Main specification:
Uses the PLC computer control,operates easily, performance stable, double-end curving synchronization shapes work piece of the bended pipe opens, the angle is precise, Double-end curving angle may adjust from 0-180 degree, but must consider the material-taking problem. May establish two ases different angles to be curving .
1. According to different base frame, it can be divided into standard type and rotary type.
2. Hand-operated, auto, semi-circulation and other functions can be chosen.
3. PLC computer control, imported electric elements. The program can be stored forever, no losing.
4. Foot switch has auto start, emergency stop, emergency-stop and going on function, it has high safety.
5. Double head can be used separately.
6. Three pieces can be bended one times.
Main Technical Parameter
Item Model | SW38A | SW50A |
Main Power(Kw) | 5.5 | 7.5 |
Max. Steel, Tube O.D.(mm) | Φ38x1.8t | Φ50x2.0t |
Max. Stainless Steel, Tube O.D.(mm) | Φ32x1.8 | Φ48x2.5 |
Max. Bending Radius (mm) | 38-200 | 50-250 |
Center Distance between Two Shafts (mm) | 170-1700 | 170-1700 |
Max. Bending Angle (°) | 185 | 185 |
Bending-Pipes quantity once | Φ22x2 | Φ25x2 |
Motor power for Hydraulic (Mpa) | 14 | 14 |
Gross Weight | 1500 | 2500 |
Machine Dimension(cm) | 270x126x132 | 350x150x190 |

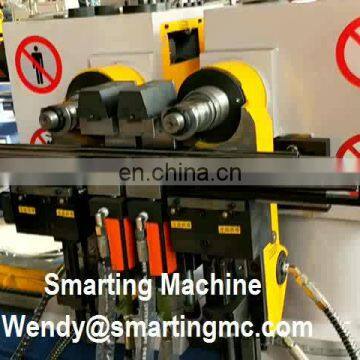

Machine photo
Main parts
Bending molds
