Insulating Glass Processing Double Group Sealant Extruder
US$ 2,500 - 3,500
/ Set
1 Set(Min. Order)
- Qingdao port China
- T/T Credit Card
You May Like
-
Heating and Roller Pressing Machine for Insulating Glass Produce
-
Insulating Glass Butyl Extruder Machine
-
Double Glazing Glass Hot Melt Glue Machine
-
Vertical Automatic Insulating Glass Production Line(outside Press),model:LB2000P
-
Double Insulated Glass Machine Produce Line With High Quality 2200 Height
-
Double Glass Window Making Machinery
Product Details
| Brand Name | BETTER | Model Number | ST03 |
Product Description

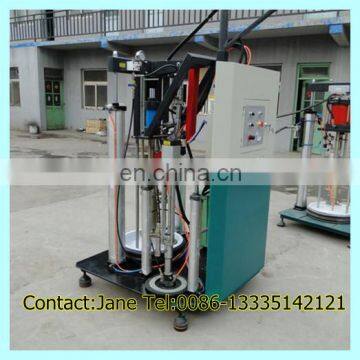

Insulating glass processing Double group sealant extruder
Description
ST01 two-component coating Machine adopt the advanced technology;
the curative agent system is completely closed and airproof;
the valve ports of the basic material pump, the curative agent pump and proportioning pump all adopt the special alloy with zero leakage.
The rubber mixing system adopt the strip shaker with international static state to-and-fro technology,
attached the unilateralism pin valve with special structure to make the mix uniformitive.
the rubber mouth with special flexibility material made the insulating glass production more convenience and attractive.
Main technical parameters
Model number | ST03 |
Power supply | 380V 50HZ |
Total power | 1.1KW |
Mixed rate | 6:1-15:1 |
Base bucket | 55 gallon (200L) |
Curative agent bucket | 5 gallon(20L) |
Max consumed air | 0.5m3/min |
Max squeezing pressure | 20Mpa |
Air-supply pressure | 0.5 ~ 0.8Mpa |
Overall dimensions | 1200 ×1100×2500mm |
Total weight(about) | 600kg |

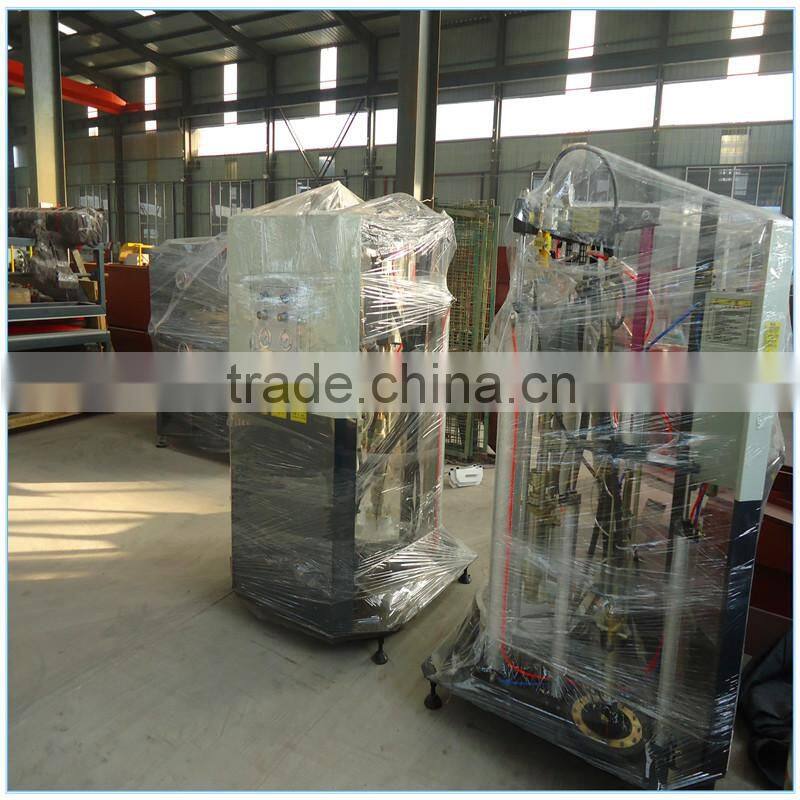

Package and shipping:
