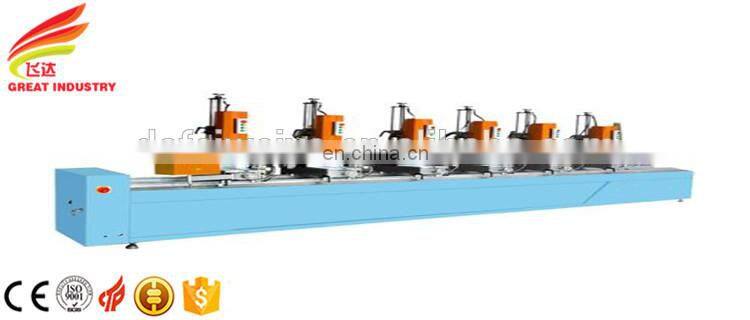

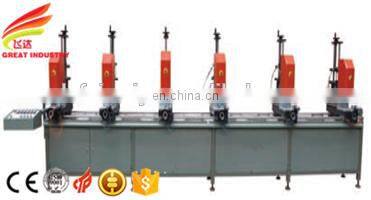

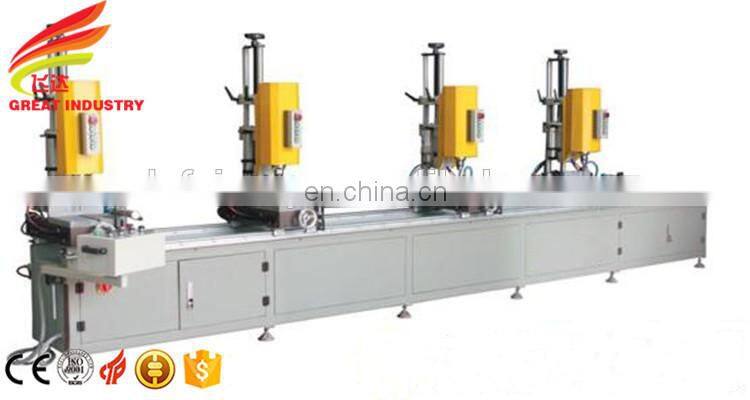

Aluminum Profile Multi Head Hole Drilling Machine

Aluminum Profile Multi Head Hole Drilling Machine

Product Application multi head drilling machine

- Used for drilling holes on aluminum and PVC work-pieces and parts
- The automatic processing way done by the lengthened hydro-pneumatic damping cylinders assure the processing stability
- Cylinder controlled clamping devices make the clamping work easy
- Adopt automatically cooling spray system
- Adopt two hands operation to protect the operator from injury while processing

Main Specification  multi head drilling machine

1) Range of production 5100（L.）mmX110（W.）mmX245（H）mm
2)  Diameter of drill φ3-16mm
3) Motor 4X750W
4) Speed of main axis 2800 R/M
5) Height of operating device 1000mm
6) Weight 1200Kg
7) Dimensions 5800×2000×950mm

Drilling Precision  multi head drilling machine
1) Roughness of milling surface Ra 25 um

45° SWING ANGLE

                   90° SWING ANGLE

67.5° PRECISION

BOARD

          PERFECT CUTTING
