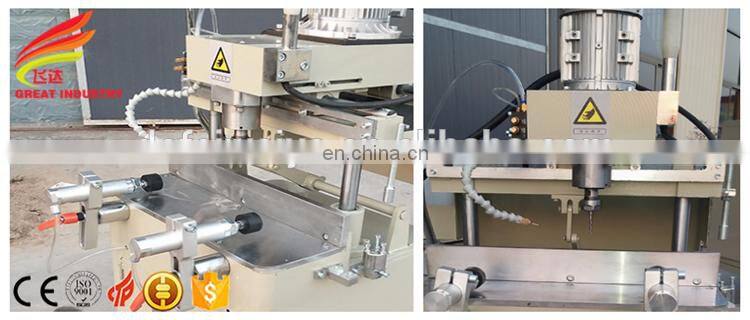

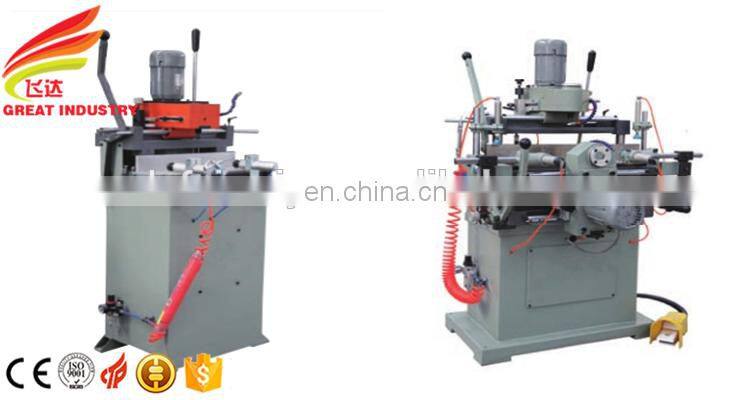

double head copy router machine for aluminum window machine

double head copy router machine for aluminum window machine

Product Application copy router machine for aluminum

--For copying sorts of figures and holes on aluminum profiles with processable wall thickness 1.5~3 mm.
--The copying templates and auxiliary ruler are adopted as two mechanical ways of copying performance.
--Automatic clamping and spray-cooling.
--Professional milling cutters are used for better performance.

Main Specification copy router machine for aluminum

1) Copying range (width x length): 90x260 mm
2) Cutter diameter : φ5mm, φ8mm
3) Rotational speed of cutter: 11200 r/min.
4) Machine power: 1.1 KW
5) Power supply: 380V, 50Hz, 3 phases, 4 wires
6) Pneumatic working pressure: 0.4 – 0.8 MPa
7) Air consumption: 0.1 m³ /min
8) Outer dimensions: 800x800x1500mm
9) Weight: 150 Kg

End Milling Precision copy router machine for aluminum
1) Smooth finish of milling surface: Ra 12.5 µm
2) Copying tolerance in dimension: ± 0.1 mm
3) Copying tolerance on position: ± 0.1 mm

GOOD TOOLS

          GOOD STRUCTURE

GOOD MOTOR

         PERFECT WORKING
