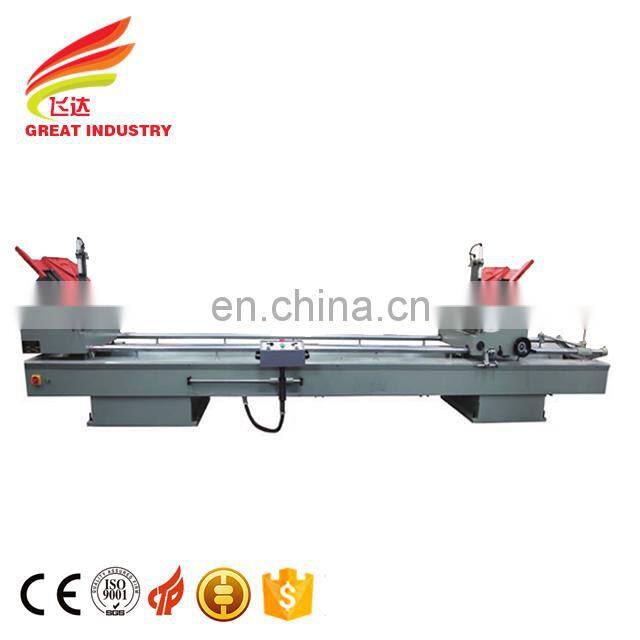

Aluminum Cutting Saw Machine 5 Axis Aluminum Billet Cutting Saw

aluminum cutting saw machine 5 axis aluminum billet cutting saw

Product Application

-It is used for all kinds of aluminum compound corner cutting processing
-Using digital PLC multi-axis control, complete 5-axis control;
-The use of Bottom-up cutting method,it can be used for all cutting outside the measurement method;
-Sawing angle can be horizontal rotation, but also vertical rotation, to complete the complex angle of cutting;
-Hard alloy (carbide) blade, and automatic cooling spray device.
-Adopt safety hood to protect the operator from injury while processing

Main Specification

1) Cutting length 350-6300mm
2) When Cutting range90° 400×115mm(Width×Height)Max.240×180mm(Width×Height)
3) Saw blade diameter ￠550×4.4×30mm
4) Spindle motor 4KW×2
5) Spindle speed 2800rmp/min
6) Horizontal angle 45°-90°-135°
7) Vertical angle 90°-135°
8) Air working pressure 0.5-0.8mpa
9) Voltage 380V,50HZ
10) Weight 1500kg
11) Air consumption 0.2m3/min
12) Dimensions 9000×1800×1600mm(With auxiliary support frame)

Cutting Precision

1) Repetition on length: ± 0.2mm
2) Repetition on angle: ± 5'
3) Verticality of cutting surface: 0.1mm (100x100mm section)
4) Planeness of cutting surface: 0.1mm (100x100mm section)

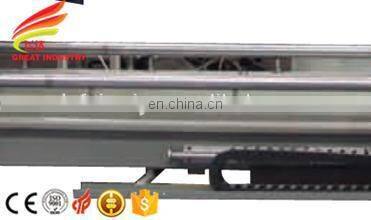

HIGH PRECISION BALL

SCREW

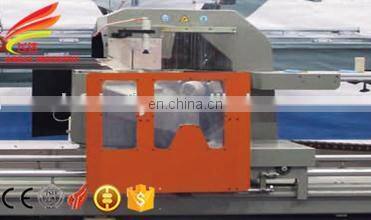

                         5 AXIS SAW HEAD

GOOD QUALITY

ACCESSORIES

          PERFECT CUTTING

Q: If I make Aluminum window and door, how many basic machines do i need?
A: Double head cutting saw ,Lock hole copy milling machine,End milling machine,
    Automatic Corner connector automatic cutting saw,Single head Corner Crimping machine.

Q: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness, and working area needed.
     we will suggest the most suitable machine and professional solution.

Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare.
     We will send you the English version user manual and install video which shows how to
     assamble and use the machine clearly, almost all the customers can operate the machine
     easily.
     Don't worry about this. FEIDA will always be here to help!

Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual.
     But in case you have any problem, our professional after-service team will provide you any
     support you need any time!
B: We can send you free components to you if your machines are in guarantee time.
C: We can send our engineers to repair your machines.

Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other
     different machines.

Q: When can we arrange shipment?
A: We usually arrange shipment in 15 days after getting deposit, but customized machines should be
    more than 25 days.

Q: What services can provide in your company?
A: Two years guarantee
B: Free adjustment
C: Free training to operation and maintenance workers.
D: Free industrial information
E: Free investment analysis for windows, doors and curtain wall project.
F: Free layout design for windows,doors and curtain wall production lines.
G: Provide follow-up service, regular maintenance and lifetime service for our machines sold.
H: Provide technical support including pressure design and caculation for window and curtain
    wall companies.
I: Provide quick supply of spare parts for window and curtain wall companies.
