Home > Products > UHMWPE sheet > eco-friendly UHMW-PE sheet for food industry

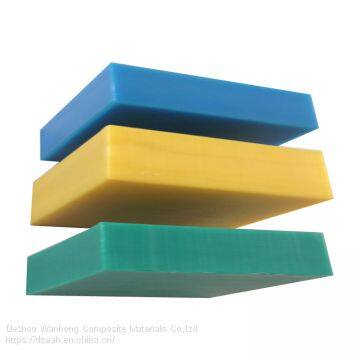

eco-friendly UHMW-PE sheet for food industry
- Qingdao,Tianjin,Guangzhou,Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
You May Like
Product Details
| Brand Name | Wanhong | Place of Origin | China | |
| Model Number | 2350 | Material | PE | |
| Size | 1300*2000 mm,1240*2000 mm,1330*3000 mm,2100*2000 mm | Thickness | 10-200 mm |
Product Description
HDPE sheet
Introduction of the HDPE sheet :
HDPE sheet is a thermoplastic engineering plastic. It combines the advantages of all plastics,wear resistance,chemical corrosion,self-lubrication,resistance to low temperature,safe,non-toxic and odorless,etc.It is the highest number of existing plastic varies.With the development of plastic processing technology,the application field of HDPE will become wider and wider.
Features of the HDPE sheet :
Extremely high impact strength
? Excellent wear and abrasion resistance
? Optimal sliding properties
? Dimensional stability
? Energy absorption capacity at high loading rates
? Resistance against fatigue
? Water repellent
? Good chemical resistance
? Electrical and dielectric properties
? Physiologically harmless
Characteristic of the HDPE sheet :
Property | Unit | Value |
Density | g/cm3 | 0.93-0.98 |
Average molecular weight | g/mol | 3million- 9 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Tensile strain at break | % | 600 |
Charpy impact strength (notched) | mJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 42 |
Shore hardness | -- | 65-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- | ≤0.16 |
Kinetic Friction Coefficient | -- | ≤0.10 |
Water Absorption | -- | NIL |
Elongation at break at 23°C | % | ≥300 |
Temperature Resistance | °C | -269 to +85 |
The specifications of the HDPE liner sheet :
Item | Specification (mm) | Thickness(mm) |
HDPE sheet | 1300x4100 mm | 5-200 mm |
1240x4040 mm | 5-200 mm | |
1830x4040 mm | 5-200 mm | |
1525x7060 mm | 5-200 mm | |
1330x6150 mm | 5-200 mm | |
1500x3000 mm | 5-200 mm | |
2100x6000 mm | 5-200 mm | |
1250x5000 mm | 5-200 mm |
PS. The widest sizes is to 2300mm . and we can produce the sheet according to the customer’s request , we can produce different HDPE sheet length and thickness )
