UHMWPE Outrigger Pad China Supplier
- Tianjin,Shanghai,Guangzhou,Qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 10 days
You May Like
-
Wear Low Temperature HDPE Plastic Sheet
-
Abrasion Resisting Cast Nylon Rod 30-200mm Diameter Nylon Bar
-
High Quality Food Grade UHMWPE Sheet HDPE Board
-
Corrosion Resisting Nylon Round Bar for Machining Natural Color MC Nylon Rod
-
UHMWPE Material Super Wear Resisting Guide Rail Wear Strip
-
Shock Resisting HDPE Material Marine Fender Facing Pad
Product Details
| Brand Name | Wanhong | Place of Origin | China | |
| Model Number | 1260 | Material | PE | |
| Size | customized | Thickness | 10-100 mm |
Product Description

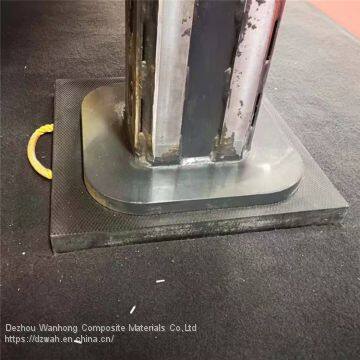

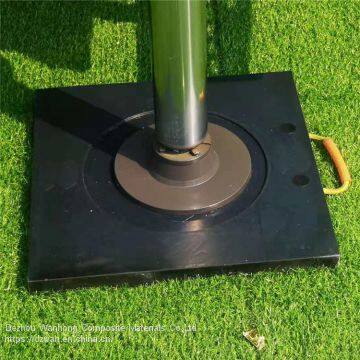

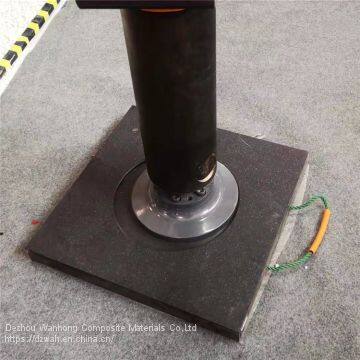

HDPE material outrigger pad
Introduction of the UHMW-PE outrigger pads :
UHMW-PE crane outrigger pads is a solid plastic with wearing strip, which provides a very durable and cost-effective footing for all your heavy machinery. The UHMWPE Mobile Cranes Outrigger Pads is Light-Weight, and only 15% the weight of steel pads. The Durable synthetic rope handles and pad design makes the outrigger pads from safe, ergonomic and readily available to use.
Features of the UHMW-PE outrigger pads :
1. Significantly lighter than steel or wood
2. Designed for a variety of soil bearing conditions, including poor soil
3. Engineered for high-capacity cranes
4. High compressive and flexural strength
5. Retains performance over lifetime
6. Can be used in extreme weather conditions(-269.C to +85 .C)
7. Moisture / rot proof
8. UV resistant
9. Chemical / oil resistant
10. Black, Orange(color is customized
11. Easy-to-Clean and in stocking transportation
12. Manufactured in many shapes, including round and square.
Each Mobile Cranes Outrigger Pads equipped with a smart handle, which make the pad easily be carried to everywhere. The handle is customized.
Application fields of the UHMW-PE outrigger pads :
1.crane
2.fire trucks
3. tree trimmers
4.utility trucks
ncrete trucks
6.dozers
7.other heavy construction equipment .
Size | Thickness | Weight/kgs(Square) | Weight/kgs(Round) | Load/Tons |
300mm | 25mm | 2.25 | 1.7 | 4 |
500mm | 30mm | 7.5 | 5.9 | 12 |
600mm | 40mm | 14.4 | 11.3 | 20 |
700mm | 50mm | 24.5 | 19.2 | 25 |
800mm | 60mm | 38.4 | 30.1 | 30 |
1000mm | 80mm | 80 | 30.1 | 70 |
1200mm | 100mm | 144 | 113 | 160 |
Why choose the UHMW-PE outrigger pads?
1.Protect equipment ,workers, and the environment
we offers the best outrigger pads for sale. Use these outstanding plastic pads to create a solid , secure base for supporting cranes , dozers , and other heavy construction equipment . Outrigger pads are also ideal for use in bridging streams , ditches , or crossing uneven and rugged terrain .
2.Outrigger pads for equipment support .
Our outrigger pads are up to 110'' thick , made from UHMW-PE or HDPE material , with a density than not only endures adverse weather but can handle massive pressure without breaking or flexing down into the ground below . These pads withstand tracked and wheeled equipment and provide a stable work surface over marshes , mud , sand ,wetlands, and ice .
