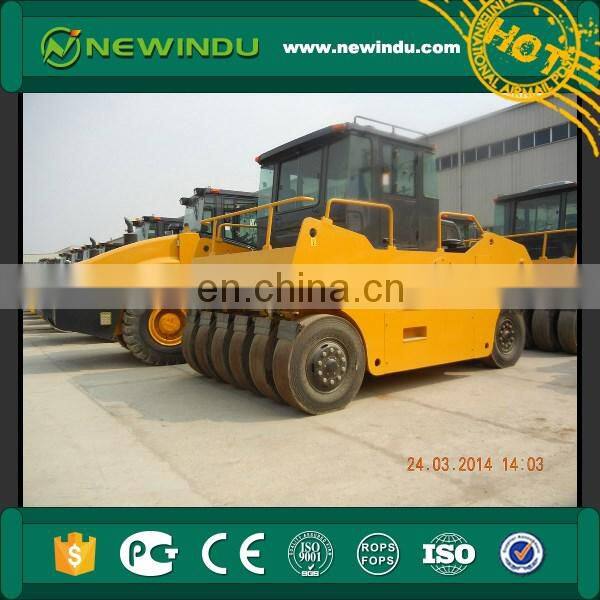

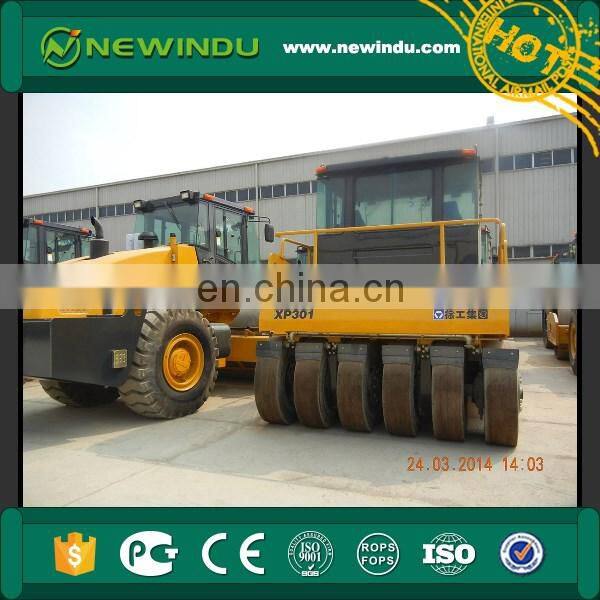

Good Quality Construction Equipment Hydraulic XP301 Road Roller

FOB Price

US$ 45,000 - 46,000 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NEWINDU	Model Number	XP301
Type	Tire Roller	Certification	ISO
After-sales Service Provided	Engineers available to service machinery overseas	Weight	30000kg
Dimension(LWH)	471520553258mm	Condition	New
Power(W)	132kw	Grade Ability	20%
Travel Speed	0-20km/h	Static Linear Pressure	40~70kN

Product Description

Good Quality Construction Equipment Hydraulic XP301 Road Roller

Please Contact

Aring Zhou

Email: aring at

Wechat/Whatsapp/Mobile:+86 15855426352

Skype: zyy1520724641 at

Product Description

Driving comfort
Spacious and bright cab features wide view and comfort. Both-side operation can absolutely avoid rolling the curb and the compacting blind corners.
Simple operation
There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts electric control handle and two-speed gear shift design, which can respectively meet the requirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.
Excellent performance
Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre’s elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.
Adopt the front wheels swing mechanism. When the machine works on rough road, the mechanism ensures the even ground pressure, which can make the materials be compacted evenly.
The optional international leading infrared tyre heating system realizes the no water sprinkling work of the compactor, and improves the density and service life of the road.
Unique structure
The transmission system adopts the hydraulic transmission with infinitely variable speeds. The start of the torque converter and the speed change are stable and without impact, reducing the shear stress to the road, and improving the compacting quality. The torque converter adopts hydrodynamic drive, which makes the compactor have adaptivity, ensures the diesel engine and the transmission system work under the rated working condition, and prolongs the service life of the compactor.
Leading function
The water sprinkling system has a series of perfect functions such as electric water spraying, power water sprinkling, external pumping, and internal water supplement. When there is no external water source, the automatic water supplement function can supply the counterweight water to the water tank, turning the backwater to flowing water, which avoids the backwater corroding the machine, and meets the requirements of different works.
Energy conservation and environment protection
Low noise supercharged diesel engine features high performance, reliable quality and good economical performance.
Convenient maintenance
The engine cover is easy to open. Adopt the cover plate structure which can be lifted, which facilitates the inspection, adjustment, and maintenance of the battery, water pump system, and chains.

Main Parameters

Model	Unit	XP301
Min. working weight	kg	14500
Max. working weight	kg	30000
Axle load,wheels	kg	2900
Theoretical gradeability	%	20
Min. turning external radius	mm	9000
Min. ground clearance	mm	290
Tyre overlap amount	mm	50
Front wheel swing range	mm	±45
Compaction width	mm	2750
Ground pressure	kPa	260~450
Wheel base	mm	3840
Travel speed	km/h	0~8
	km/h	0~16
Tyre specification		11.00-20
Tyre tread		Smooth
Tyre amount		Front 5 rear 6
Engine model		SC8D180F2B1
Rated speed	r/min	2000
Rated power	kw	132
Engine oil consumption	g/kW•h	232
Water tank capacity	L	2900
Hydraulic oil tank capacity	L	100
Fuel tank capacity	L	180
