215HP Road Construction Machinery GR215 Motor Grader
- Shanghai/Qingdao
- T/T Credit Card
You May Like
-
Chinese Best Selfpropelled Motor Grader GR215 for Sale
-
Small 16 Ton 215HP Motor Grade/Motor Grader GR215
-
Hot Sale 230HP Tracto Motor Grader GR230 for Sale
-
300HP 26Ton Operating Weight GR300 Motor Grader With CE Certificate
-
15Tons 165HP Articulated Motor Grader GR1653
-
Made in China Cheap Small Motor Grader for Sale
Product Details
| Brand Name | NEWINDU | Model Number | GR215 | |
| Certification | ISO | After-sales Service Provided | Engineers available to service machinery overseas | |
| Weight | 16100KG | Dimension(L*W*H) | 9180*2625*3300mm | |
| Condition | New | Reverse Speed(km/h) | 23 | |
| Forward Speed(km/h) | 38 |
Product Description

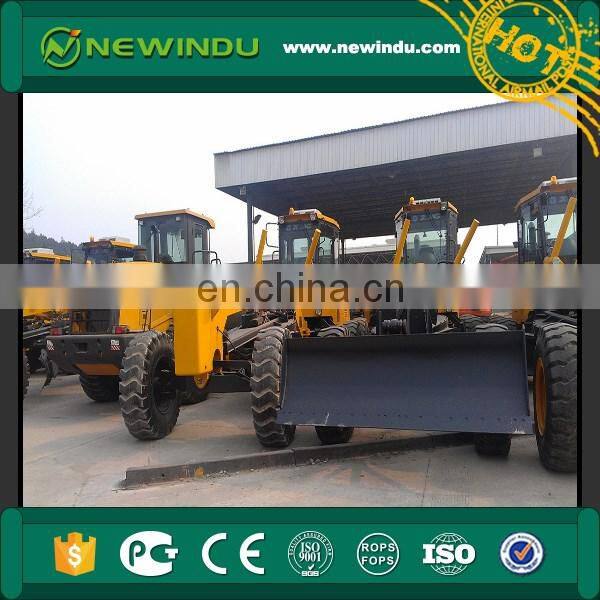

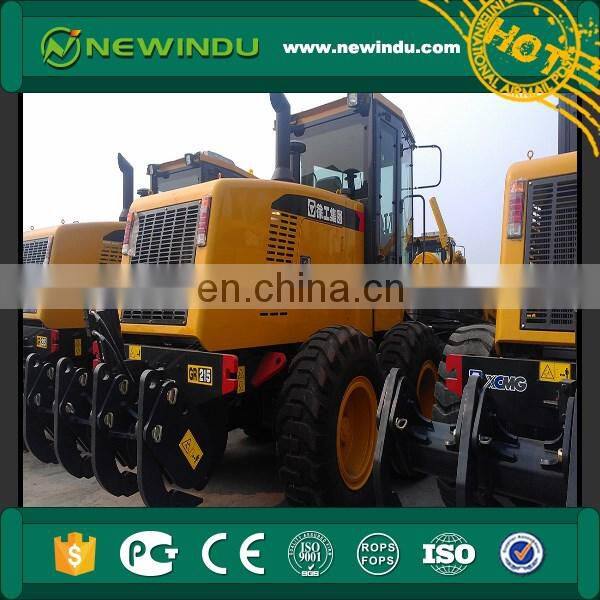

215HP Road Construction Machinery GR215 Motor Grader
Aring Zhou
Email: aring at
Wechat/Whatsapp/Mobile: +86 15855426352
Skype: zyy1520724641 at
GR Series Motor Grader are widely used for floor leveling and trenching, slope scraping, bulldozing, scarification, snow removal and other operations.
Can be installed in front bulldozing plate, rear ripper, front scarification harrow, automatic leveling device.
1) New designs. Adopt articulated frame, with the front wheel steering, small turning radius, flexible.
2) Electro-hydraulic control power shift transmission, 6-speed forward, backward 3 files.
3) Adopt international support hydraulic parts, reliable work.
4) Full hydraulic blade control.
5) Adjustable console, seats, steering handle and instrument well positioned, easy to use, improve the driving comfort.
6) Luxury and beautiful cab, good vision, well sealed.
Basic Specification
| Model | GR215 |
| Rated Power/Speed | 164/2200kw/rpm |
| Dimension(L*W*H) | 9180*2625*3300mm |
| Operating Weight | 16100kg |
Main Performance
| Travelling Speed(forward) | 5,8,11,19,23,38km/h |
| Travelling Speed(reverse) | 5,11,23km/h |
| Tractive Force(f=0.75) | 82kN |
| Max.Gradeability | 20% |
| Tire Inflation Pressure | 260kPa |
| Working Hydraulic Pressure | 16MPa |
| Transmission Pressure | 1.3-1.8MPa |
Operating Specification
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
Biade
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°-70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 4270*610mm |
