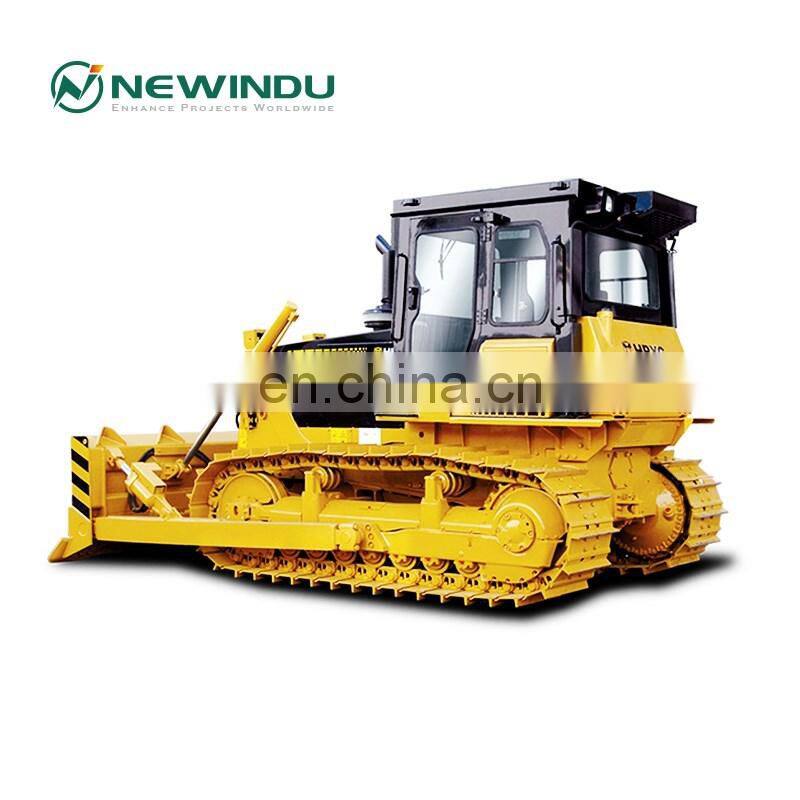

China Mini Dozer HB XG SD6G With CE for Sale in Australia

FOB Price

US$ 51,468 - 51,468 / Unit

1 Unit(Min. Order)

Port Shanghai China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Newindu	Place of Origin	Hebei, China
Condition	New
Dimension(Long * Breadth * High)	550039003100mm	Machine Weight	17550KG
Moving Type	Crawler Bulldozer

Product Description

China Mini Dozer HB XG SD6G with CE for Sale in Australia

Product Description

Bulldozers are widely used in earthwork, such as construction, road building, mining, water conservancy, agriculture, forestry and national defense construction. Bulldozer, the blade into soil, rely on host momentum to complete soil cutting and push operation.

The bulldozer can carry out the following operations:
Shovel soil and transport soil - push and shovel foundation pit, cut and build embankment.
Filling - backfilling foundation pit, landfill;
Flat - flat construction site and farmland;
Loosening soil -- single tooth loosening device is used for cracked hard rock, such as granite and hard broken road, etc. the three tooth loosening device ruptures hard rock, clay, oil shale and other soft rocks, and the winch can be used to drag logs, pipe laying and traction operations.
Other uses - a booster for a self - scraper to remove tree stump and snow.

Technical Parameters

Length×Width×Height (without Ripper)	5750×3725×3575
Operating Weight (t)	25.5
Flywheel HP (km/rpm)	162/1800
Track Gauge	2000
Ground Contact Length(mm) /Pressure(Mpa)	2730/0.082
Forward Speeds(km/h)	3.6/6.5/11.2
Reverse Speeds(km/h)	4.3/7.7/13.2
(Blade) Max. Drop below Ground (mm)	Straight540/Angle535/U540
(Ripper) Max. Dig below Ground (mm)	Single666/3-shank555
(Blade) Max. Lift above Ground (mm)	1210
(Ripper) Max Lift above Ground (mm)	Single 598.3/3-shank 666
Gradeability (º)	30°
Blade Capacity (m3)	7.24/5.15/8.63/3.89
Engine	NT855-C280
No. of Track Rollers (each side)	6
No. of Track Shoes (each side)	38
Track Width(mm)	560
Track Pitch(mm)	216
Blade Type	U/Straight, Landfill/Angle
Blade Size Width×Height (mm)	U 3800×1343/Straight 3725×1315/Landfill 3725×1702/Angle 4365×1055
Ripper	Single or 3-shank

Photos for Reference
