Product Details

Brand Name	SHBAIRUO		Place of Origin	Shaanxi, China
Model Number	LWC		Power	Electronic

Product Description

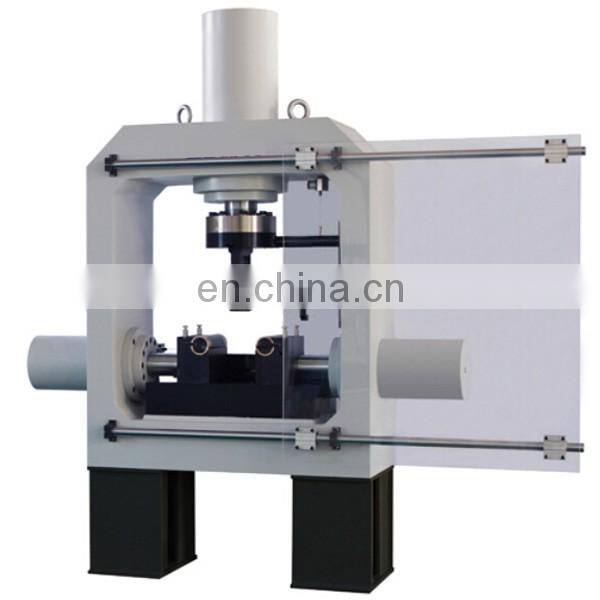

LWC Series process control SPC bending testing flexuraltest machine

Introduction

LWC series programmable bending test machine, mainly used for the bending test of the steel plate, the product uses the overall frame type, the vertical and horizontal two-way cylinder piston group integrated design. The level of support and span free synchronization adjustment, two roller movement can achieve 180 degree bend test. Can achieve automatic bending test, also can be used to complete the test manual.

The product structure layout is reasonable, accord with human body engineering principle, the operation is convenient. In the form of the insert type bending core, the compact design and the small area of the floor space. Low noise, low energy consumption, energy saving and environmental protection requirements.

Products are mainly used in the measurement of quality inspection, metallurgical steel, machinery manufacturing, civil aviation, colleges and universities, scientific research and testing, commodity inspection, technical supervision and other departments.

Technical parameter

Model	LWC-1000	LWC-2000
The largest vertical force/horizontal thrust	1000kN / 500kN	2000kN / 1000kN
synchronization precision	<1%
Displacement measurement resolution	0.002mm
Displacement relative error value	±1%
The roll specifications/bend heart specifications	φ80mm×200mm/ φ5mm~φ160mm	φ80mm×210mm/ φ5mm~φ160mm
Bending mandrel diameter series	5,10,12,14,15,16,20,24,25,28,30,40, 48,50,54,56,58,60,63,66,69,72,75,80, 90,100,130(mm) can be customized.
Bending specimen thickness	40mm
Vertical cylinder compression speed	400mm/min	260mm/min
Horizontal cylinder compression speed	2×200mm/min	2×180mm/min
The main piston stroke	350mm
maximum outreach	400mm
Dimension	1900mm×520mm×2350mm	1660mm×680mm×2260mm
Weight	4200kg	7600kg
Power supply	4kW/AC380V/50Hz	7.5kW/AC380V/50Hz
