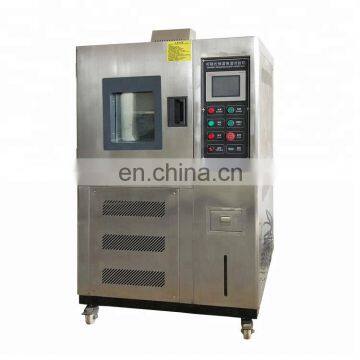

China High Quality Mini Temperature And Humidity Test Chamber

Product name

Inside size WxHxD (cm)

40x50x40

50x60x50

50x75x60

60x85x80

80x95x80

100x100x80

100x100x100

Outside size WxHxD (cm)

90x136x94

100x146x104

100x161x117

110x171x137

130x181x137

150x186x137

150x186x157

Temperature range

-70℃~+100℃(150℃)
(A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃)

Humidity range

20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific codition)

Accuracy/ uniformly

±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H.

Accuracy / volatility

±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H.

Heating / cooling time

About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition)

Inside material

Stainless steel SUS 304#

Insulation material

High-temperature high-density amino acid ethyl ester foam insulation materials,

Cooling system

Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage compressor(-40℃~-70℃)

protection

compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system

accessories

recorder(purchase),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball

controller

TEMI300 digital controller from South Korea

compressor

France “Taikang”

power

1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz

Wind circulative system

1. Using multi-wing centrifugal Rewind fans, strengthen the axis is made of aluminum alloy in order to attain loop forced convection.

2. Stainless steel added long axis.

3. Stainless Steel Multi-blade centrifugal wind whee.

Water Supply system

1. with water tank at the back

2. automatically supply water

3. warning for the shortage of water

Cooling system (diego-style, single machine, refrigerator)

1. Compressor: France “Taikang” Hermetic Refrigeration Compressor TFHK2522K two unit

2. Refrigerator:Air-cool condenser coil

3. Evaporator: pomfret Chip Multi-Segment

4. Other Accessories: Imported desiccant cooling, Freon-borne window, the U.S. oil-water separator

5. Expansion System: Italian expansion valve

Temperature and humidity control system

1.Control Specifications: Original South Korea TEMI880 color LCD touch screen in English and Chinese Accuracy: ±0.5 ℃±1% R.H, Resolution: 0.1 ℃ 1% R.H

2. Functions can accommodate memory 999 program, optional single-stage control or multi-segment program control, operating as a functional form model, can be directly programmed and solid curve of function and the RS-232 communication interface.

nnect with computer, directly monitored by the computer to operate program, it also records temperature data and print! (Need anther purchase)

4.The main components of the system is equipped with a safe inspection and

interface devices, when an fault occurs, immediately through the LCD to display fault status and cut off the power

5.With the cumulative operating time, display the run time

6.Sensor: PT100 Sensor

7.Temperature and humidity control diagram attached

Standard Accessories

1. two groups adjustable shelf board made of stainless steel, the distance can be arbitrarily changed

2.Perspective vacuum glass windows, explosion-proof type

3.Wide-angle lighting, using energy-saving high-efficiency fluorescent lights

4.The machine is equipped with 4 group adjustable fixed wheel axle and control indicator light

5. a pair of Φ50mm hole for testing

Power

Three-phase 380V ± 10% Power frequency: 50Hz ± 2% 4KW

Information and services

1. To provide equipment drawing, electrical schematics, electrical wiring diagram, consume parts, operating manuals and other technical information, copy of two, and to provide essential technical information.

2. Trained how to operate and maintain the equipment, so the staff grasp to the skill of of equipment.

3. Equipment, one year warranty for free maintenance service: after one year provide the accessories for paying costs price.
