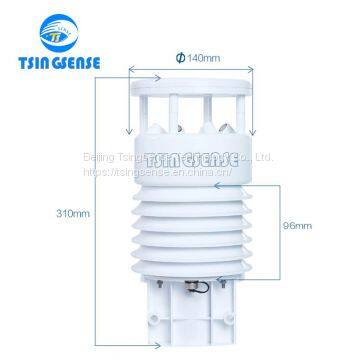

WTS500 Integrated Air Temperature, Humidity, Air Pressure, Ultrasonic Wind Sensors
- tianjin
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
WTS500 Integrated Air Temperature, Humidity, Air Pressure, Wind Sensors
-
WTS500 Air Temperature, Humidity, Air Pressure, Wind Sensor，integrated Weather Station
-
WTS500 Air Temperature, Humidity, Air Pressure, Wind Sensor，integrated RS485 Weather Station
-
WTS500 Air Temperature, Humidity, Air Pressure, Wind Sensor，integrated GPRS Weather Station
-
WTS500 Air Temperature, Humidity, Air Pressure, Wind Speed and Direction Sensor
-
WTS600 Wireless Weather Station GPRS With Outdoor Wind Speed Direction Sensor
Product Details
| Brand Name | Tsingsense | Place of Origin | China | |
| Model Number | WTS500 |
Product Description

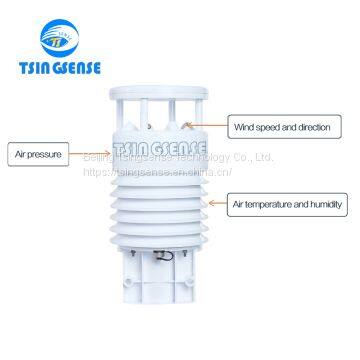

WTS500 can simultaneously measure five meteorological parameters: atmospheric temperature, atmospheric humidity, air pressure, wind direction and wind speed. It has the advantages of high accuracy, fast response time, strong anti-interference ability, serial port output and so on.Users can measure directly through PC or external instruments.
Features
Integrated design of multiple sensors,(No need for a receiver)
Design of maintenance free system,(Simple installation)
Open system protocol
RS485 output signal,(RS232 can be selected)
Ultra low power design
Industrial grade protective housing,( Ensure long-term outdoor use)
Optional built-in electronic compass, GPRS, GPS, etc.
Technical parameters
Factor | Measuring range | Resolution | Accuracy | Measurement principle |
Air temperature | -40℃~+60℃ | 0.1℃ | ±0.3℃ | Thermistor |
Air humidity | 0~100%Rh | 0.1%Rh | ±2%Rh | Capacitance |
Air pressure | 10~1300hpa | 0.1hpa | ±1hpa | Piezoresistive |
Wind direction | 0~360° | 1° | ±3° | Ultrasonic |
Wind speed | 0~60m/s | 0.1m/s | ±0.3m/s(3%) | Ultrasonic |
Optional configuration function(Built-in sensor ):GPRS-a01, WiFi-a02, Ethernet-a03,Electronic compass-b01, GPS-b02, Heating(48W)-c01, Battery-d01. | ||||
The following are types of sensors that can be added for integration.You can choose freely according to your needs.
Factor | Measuring range | Resolution | Accuracy | Measurement principle |
Rainfall | 0~5mm/min | 0.1mm | ±5% | Infrared light |
Solar radiation | 0~2000W/m2 | 1W/m2 | ≤5% | Silicon photodetector |
UV index | 0~15 level | 1level | ±1level | Photosensitive resistance |
Packing list
sensor 1 set
3.5m cable 1 line
instruction 1 copy
certificate/warranty 1 copy
packing list 1 copy
FAQ for WTS500 sensor
Q:Do you supply tripod and solar panels?
A:Yes, we can supply it, but this is optional.
Q:Can we choose the required sensor for the weather station?
A:Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A:Communication interface adopts RS485,(RS232 can be selected)

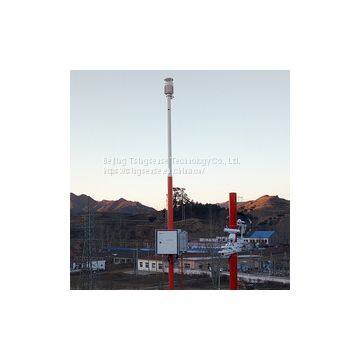

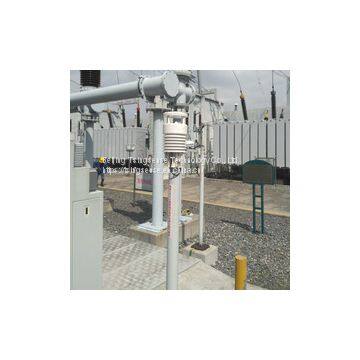

Application
Company information
FAQ
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don't offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends' visits.
