Type W G GC 1/0 Awg Tinned Copper Oil Resisted Rubber Cable for Coal Industry

Type G,G-GC 1/0 awg tinned copper single jacket oil resisted rubber cable  for coal industry

Application
Type W G GC Portable Power Cable is suitable for use in Industrial and light-to-medium mining applications, heavy-duty service and temporary as power supply cables. Motor, battery and generator leads. It is also used for mobile and portable electrical equipment.Industrial and light to medium duty mining applications.Heavy duty service as power supply cable.Mobile and portable electrical equipment.3 and 4 conductor use on three-phase AC systems where grounding is required

Specifications

• UL Listed - Type W per UL 1650

• Conductors are manufactured in accordance with ASTM and B-172
• Made in accordance with ICEA S-75-381
• NEMA WC-58 - Portable and Power Feeder Cables for Use in Mines and Similar Locations
• MSHA accepted, P-136-135, LR65300
• UL Listed as Type RHH or RHW-2
• CSA or c(UL) Certified as applicable
• RoHS Compliant
• Meets FT-5 Flame Test

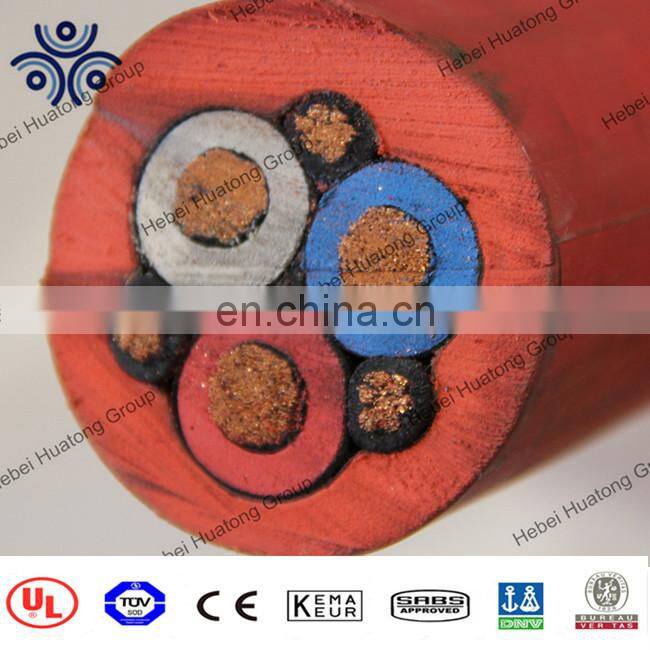

Construction

   Conductor: 8 AWG to 500 MCM fully annealed stranded bare copper Stranding per ASTM B 174

   Insulation: Premium grade oil resistant Ethylene Propylene (EPDM)

  Jacket: Premium grade, water, sunlight, and oil resistant, flame-retardant, Chlorinated Polyethylene (CPE)

Features:

              Excellent impact and abrasion resistance

              Withstand exposure to oil, acids, alkalies, heat, moisture and most chemicals

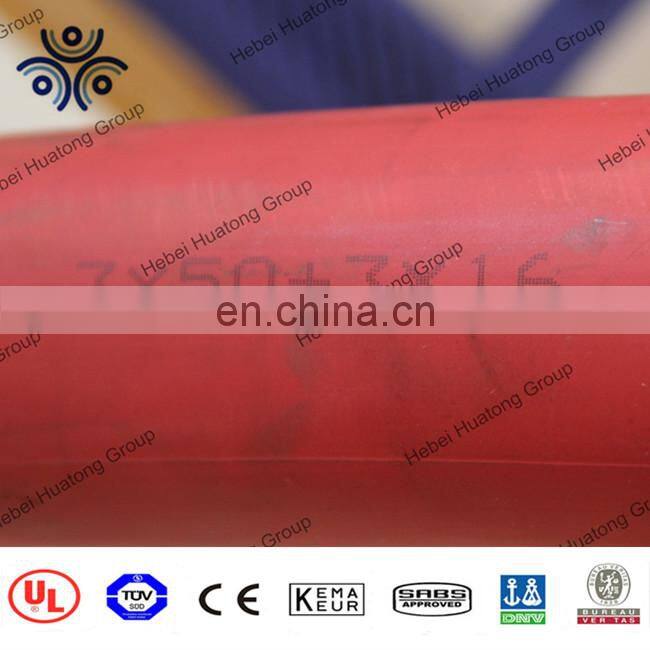

              Indent printed for easy identification

              Rope lay stranding for maximum flex life

              Cable core bound for superior flexibility and toughness

              Resists:Heat ,Oil,Weather,Ozone,Abrasion

              Temp range:-40°C to 90°C Dry

                                 -40°C to 75°C Wet

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB,IEC,DIN,ASTM, JIS, NF, AS/NZS,CSA,GOST and so on. We also have obtained ISO9001,ISO14001,OHSAS18001,UL,CE,KEMA, TUV,SABS,PBS,Bureau Veritas,Lloyd,GL,NK,KR certifications.
We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable and so on.

CNAS accredited national level laboratory

1.25 years production experience and 16 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback.  Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.

1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.

2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express  account or prepay us if you do not have an account.

4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
