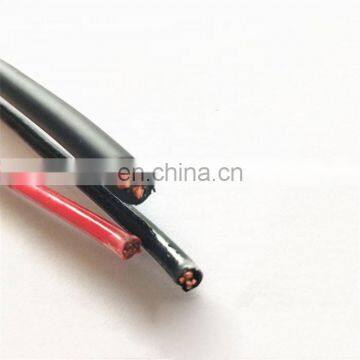

High Standard Type DG Rated 90C Cable

High Standard Type DG Rated 90C Cable

Use and installation

This category covers multi-conductor, nonintegrally jacketed, distributed generation (DG) cable. This cable is intended for use with specific distributed generation equipment/devices such as photovoltaic modules, inverters, solar trackers, etc. DG cable is suitable for use between cable trays and utilization equipment.

Structure

These cables are constructed with or without:

a) One bare or one or more insulated grounding conductor(s), and/or

b) One or more twisted pairs used for signal or communication,

all under an overall jacket.

Standard:

ASTM-B,B-3

UL standard 83 for THHN/THWN-2

UL Standard 3003

RoHS environmental conductive requirement

Insulated Power Conductors
Bare, annealed copper per ASTM B-3 Compressed stranded per UL-83

Insulation
Color coded Thermoplastic Insulation/Nylon jacketed per UL-83

Grounding conductors

The cable may contain one or more grounding conductors. Each grounding conductor that is provided
shall be of copper, aluminum, or copper-clad aluminum

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB,IEC,DIN,ASTM, JIS, NF, AS/NZS,CSA,GOST and so on. We also have obtained ISO9001,ISO14001,OHSAS18001,UL,CE,KEMA, TUV,SABS,PBS,Bureau Veritas,Lloyd,GL,NK,KR certifications.
We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable and so on.

1.25 years production experience and 16 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback.  Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.

1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.

2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express  account or prepay us if you do not have an account.

4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
