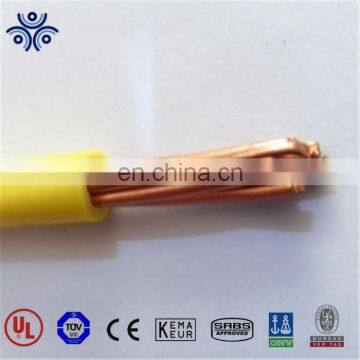

Stranded copper conductor 12 AWG UL 83 standard wire
- Tianjin port Qing dao port Shang hai port
- T/T Credit Card
You May Like
-
600V stranded copper conductor 14AWG 12 AWG 10AWG UL 83 standard PVC wire
-
600V 70mm2 120mm2 PVC Building Wire Green/Yellow Cable with AS NZS 5001 Standard
-
Single core, 0.6/1kV V-90 insulated, AS/NZS 5000.1 (unsheathed), copper conductor PVC building wire
-
0.6/1KV Single Core FLEXIBLE PVC GREEN/YELLOW V-90 EARTH CABLES
-
H07V-U (NYA) 450/750V,solid copper conductor, PVC insulated Electric Wire
-
H07V-K 450/750V flexible copper conductor PVC insulation
Product Details
Brand Name | REN DA | Place of Origin | Hebei, China | |
Model Number | THW TW | Type | Insulated | |
Insulation Material | PVC | |||
Conductor Type | Solid |
Product Description
Stranded copper conductor 12 AWG UL 83 standard wire
PVC Insulation, 600 Volts
1. SCOPE
1.1 This specification describes single conductor THW, a general purpose building wire insulated with polyvinyl chloride (PVC) intended for lighting and power circuits at 600 volts or less, in residential, commercial and industrial buildings. The wire may be operated at 75°C maximum continuous conductor temperature in wet or dry locations and is listed by Underwriters Laboratories for use in accordance with Article 310 of the National Electri-cal Code.
2. APPLICABLE SPECIFICATIONS
2.1 The following specifications form a part of this specification to the extent specified herein:
2.1.1 Underwriters Laboratories Standard 83 for Thermoplastic Insulated Wires.
2.1.2 Federal Specification J-C-30B.
- 3. CONDUCTORS
3.1 Conductors shall be solid or Class B stranded , annealed uncoated copper per UL Standard 83.
- 4. INSULATION
4.1 Each conductor shall be insulated with PVC complying with the physical and electrical requirements of UL Stan-dard 83 for Type THW. In addition, the PVC insulation shall comply with the optional Oil Resistant I listing of UL Standard 83.
4.2 The average thickness of insulation, for a given conductor size, shall be as specified in UL Standard 83 for Type THW wire. The minimum thickness at any point shall be not less than 90% of the specified average thickness. The insulation shall be applied tightly to the conductor and shall be free-stripping .
- 5. IDENTIFICATION
5.1 The wire shall be identified by surface marking indicating manufacturer's identification, conductor size and metal , voltage rating , UL Symbol, type designation and optional ratings.
TECHNICAL DATA
| Size |
|
|
|
|
|
| Approx. Wt. | ||
| AWG |
|
| Insulation |
| Nom. | NEC |
| lbs/1000 ft | |
USAWC | or |
| No. of | Thickness |
| Diam. | Ampacity* | Copper |
| Net |
Part # | kcmil |
| Strands | Mils |
| Inches |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Solid |
|
|
|
|
|
|
14-01SOLTHW | 14 |
| Solid | 30 |
| .13 | 20 | 12 |
| 19 |
12-01SOLTHW | 12 |
| Solid | 30 |
| .15 | 25 | 20 |
| 26 |
10-01SOLTHW | 10 |
| Solid | 30 |
| .17 | 35 | 31 |
| 39 |
|
|
|
| Stranded |
|
|
|
|
|
|
14-01THW | 14 |
| 7 | 30 |
| .14 | 20 | 13 |
| 19 |
12-01THW | 12 |
| 7 | 30 |
| .16 | 25 | 20 |
| 28 |
10-01THW | 10 |
| 7 | 30 |
| .18 | 35 | 32 |
| 41 |
8-01THW | 8 |
| 7 | 45 |
| .24 | 50 | 50 |
| 67 |
6-01THW | 6 |
| 7 | 60 |
| .30 | 65 | 81 |
| 105 |
4-01THW | 4 |
| 7 | 60 |
| .35 | 85 | 129 |
| 160 |
3-01THW | 3 |
| 7 | 60 |
| .38 | 100 | 163 |
| 195 |
2-01THW | 2 |
| 7 | 60 |
| .41 | 115 | 205 |
| 245 |
1-01THW | 1 |
| 19 | 80 |
| .49 | 130 | 258 |
| 315 |
1/0-01THW | 1/0 |
| 19 | 80 |
| .53 | 150 | 326 |
| 390 |
2/0-01THW | 2/0 |
| 19 | 80 |
| .57 | 175 | 411 |
| 480 |
3/0-01THW | 3/0 |
| 19 | 80 |
| .62 | 200 | 518 |
| 595 |
4/0-01THW | 4/0 |
| 19 | 80 |
| .68 | 230 | 653 |
| 735 |
250-01THW | 250 |
| 37 | 95 |
| .75 | 255 | 772 |
| 880 |
300-01THW | 300 |
| 37 | 95 |
| .81 | 285 | 926 |
| 1040 |
350-01THW | 350 |
| 37 | 95 |
| .86 | 310 | 1081 |
| 1205 |
400-01THW | 400 |
| 37 | 95 |
| .90 | 335 | 1235 |
| 1365 |
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.
Products: XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable, locomotivevehicle cables, elevator cable,shipboard cable, nuclear station cables, prefabricad branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.
We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables.submersible oil pump cables, .)and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa,Congo, Middle East and Southeast Asia countries and so on.
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
1. 22 years production experience and 13 years export experience .
2.high-end Machinery and equipment for high quality cable .
3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...
4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:
system ceryification:ISO9001,ISO14001,OHSAS18001
5.our product sells all over the world and has the good reputation.
fessional teamwork service for you actively.
7.quick solution and long time online time waiting for your inquiry.
8.rapid delivery and feedback.
9.we can do that you except.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
(5)What cables does Hua Tong manufature?XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable, locomotive vehicle cables, elevator cable,shipboard cable, nuclear station cables, prefabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.
(6). Which payment terms do you accept?
A: The payment term varies with different price level and total value of every contract.
The following are most common terms:
a.100% TT advance for small amount orders.
b.30% T/T down payment, balance payment negotiable accordingly.
