VLV VLV22 VLV32 0.6/1KV Aluminum Cores PVC Insulation PVC Sheath Electrical power Cable

TOP TEN CABLE MANUFACTURER IN CHINA

LARGEST CABLE MANUFACTUER IN NORTH CHINA

ANNUAL EXPORT VOLUME EXCEED 200MILLION USD

WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS

WITH TUV TYPE TESTING REPORT

WIDE PRODUCTS RANGE

ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS

CNAS APPROVAL LABROTARY

Hebei Huatong MV power cable is manufactured according to IEC60502,IEC60332,IEC60311

and/or the BS, DIN and/or other types of international standards.

We can also produce flame retardant cable,water blocking cable,low-smoke

low-halogen cable and low-smoke halogen free cable,and also can design and

produce cables according to the requirement of our clients.

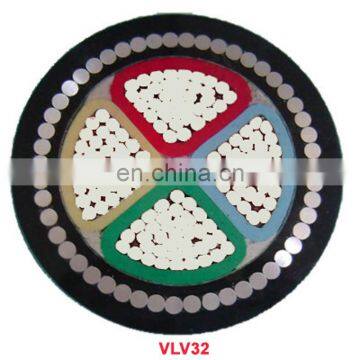

VLV VLV22 VLV32 0.6/1KV Aluminum Cores PVC Insulation PVC Sheath Electrical power Cable

1 Construction:

  Conductor: aluminum or copper

  Insulation:PVC

  Sheath:PVC

  Rated voltage:0.6/1KV

   Certification:ISO9001:2008

2 Standard of products:

  The product is suitable for use in power distribution lines or fixed installations with rated power-frequency voltage up to and including 0.6/1KV.

 3 Application:

  For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces, single core cable in magnetic duct is not permissible.

 4 Operating characteristics:

1). Rated power-frequency voltage Uo/U: 0.6/1KV.

2). Max. permissible continuous operating temperature of conductor: 70°C
3). Max. short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 160°C

4). The ambient temperature under installation should not below 0°C

5). The bending radius of a cable should not be less than 15 times of the cable diameter.

5 Type and Name:

 Copper (aluminum) core, PVC insulated and sheathed power cables

Copper (aluminum) core, PVC insulated, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PE sheathed power cable

6 DC resistance of conductor:

 7 Insulation Resistance:

Application
1,Long term working temperature for the cable with PVC insulated is 70℃;

Long term working temperature for the cable with XLPE insulated is 90℃

2,Short circuit temperature

For PVC insulated cable ,the highest conductor temperature is not more than160℃.(lasting time not over 5 seconds).

For XLPE insulated cable ,the highest conductor temperature is not more than250℃.(Lasting time is not over 5 seconds).

3,Laying temperature not less than 0℃ and the drop height is out of consideration.

4,The cable with chemical stability, anti- acid, anti-alkali, anti-oil, anti-organic solvent, not easy to be burning.

5,Easy for installation, easy bending and light.

1.24 years production experience and 14 years export experience .

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3. OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback  Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7. Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan.Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JVwith Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables,submersible oil pump cables)and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana,Algeria, South Africa,Congo, Middle East and Southeast Asia countries and so on.

1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.

You can use your own express account or prepay us if you do not have an account.

4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep isdelivering 10 kilometers cable within a week. Generally speaking, we suggest that

you start inquiry two months before the date you would like to get the products at your country.
