SER/SEU Hebei Huatong Cables

SER/SEU Hebei Huatong Cables

Product Description

1 Applications:

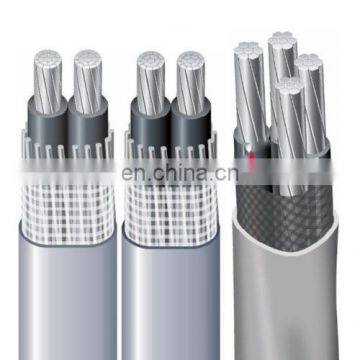

HUATONG Aluminum Service Entrance Cable Type SE, with rated voltage 600V, is used to transmit power from

the junction box to the meter base and from the meter base to the distribution cabinet It may be used in all applications

where Type SE cable is permitted.Type SE cable could be used in dry or wet environmet at the working temperature

not exceed 90C.

2 Standard:

ASTM-B-800 and B-801

UL Standard 44 for XHHW-2

UL Standard 854 for SER/SRU

RoHS environmental conductive requirement

3 Product Charactors:

Conductor:AA-8030 aluminum alloy conductors

Insuation:Cross-linked polyethylene(XLPE) Insulation

Jacket: Sunlight resistant,moisture resistant and flame retardant

Temperature Range: Temperature of 90C in wet and dry locations

Environmental: Free of harmful heavy metals in compliance with ROHS

Voltage Rating:600Volt

4 Specification:

The AA-8000 aluminum alloy conductor is applied in Type SER/SEU cable. Its insulated core is complied to the requirment of Type

XHHW-2 in UL44. Insulation material is cross-linked polyethylene(XLPE) with characteristics of abrasion resistance,moisture proof

and heat resisting.Meanwhile the insulation has the flame retardant property,which can meet FT2 level combustion test requirment.

The outside of cable core should be wrapped a fibrage tape,both of the insulation wire core and outer sheathed can meet the 720h

sunlight resistance requirment.

Company Information

Hebei Huatong Wires & Cables Group Co., ltd. It was established in 1993, we are JV with Furukawa (Japanese company) for

rubber serious cables and JV with Riken (Japanese company) for elevator cables. Besides these, our submersible oil pump

cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power

cables, XLPE power cables, ABC cables, wires, control cables, screened cables, communication cables, conductors. We are

OEM for many USA, Europen, Australia cable company, 70% of our products are exported, most customers are from developed

countries. We got ISO, UL, TUV, KEMA, CE and many other certifications.

Certificate

FAQ

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please

call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will

be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers

cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the

products at your country.
