Home > Products > UL CERTIFICATED PRODUCTS > UL83 certificated 600V thhn/thw/thwn/thwn-2 pvc insulated copper wire

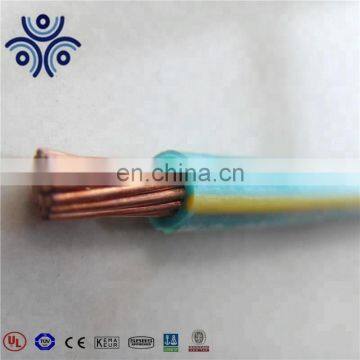

UL83 certificated 600V thhn/thw/thwn/thwn-2 pvc insulated copper wire
- Tianjin port Shanghai port Qingdao port or others
- T/T Credit Card
You May Like
-
UL83 certificated 600V Single core THW copper cable wire electrical wire
-
600V PVC Insulated Nylon Sheathed THHN THWN Nylon Coated Wire
-
THHN THW THWN WIRE 18AWG 16AWG 14AWG 12AWG 10AWG 8AWG copper wire pvc insulation nylon jacket electric building cable
-
TW/THW US WIRE THHN/THWN RHH/RHW XHHW stranded copper wire
-
4 awg 3awg 2awg 1awg cable pvc insulated and nylon jacket thhn/thwn electric wire
-
UL listed factory price pvc insulated 8 10 12 awg electric wire THW
Product Details
Brand Name | RNE DA | Place of Origin | Hebei, China | |
Model Number | THHN THWN THW | |||
Insulation Material | PVC | |||
Conductor Material | Copper |
Product Description
UL83 certificated 600V thhn/thw/thwn/thwn-2 pvc insulated copper wire
Applications:
1Type THHN/THWN2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC)Type THHN-THWN-2 is permitted for new construction or rewiring for 60 volt applications. Applications requiring Type THHN or THWN-
2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.
Features:
Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG. All sizes are rated gasoline and oil-resistant II.
Jacket:
A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.
Standards:
Underwriters Laboratories Standards UL-83, UL-1063, UL-758
AWM Spec 1316, 1317, 1318, 1319, 1320, 1321
ASTM Stranding Class B3, B8, B787
Federal Specification A-A-59544
Canadian Standards Association C22.2 No. 75
NEMA WC70/ICEA S-95-658
Institute of Electrical and Electronics Engineers
Construction:
BUILDING WIRE
UL Listed Types TFFN, THHN/THWN
Insulation: PVC (Poly Vinyl Chloride) with Secondary Nylon Jacket
Conductor: Bare Copper Voltage Rating: 600 Volts
Specification:
SIZE AWG | CROSS SECTION | SINGLE WIRE DIAMETER | NO.OF STRAND | INSULATION THICKNESS | SHEATH THICKNESS | CABLE DIAMETER | CABLE WEIGHT |
MCM | mm2 | mm | no. | mm | mm | mm | kg/km |
20 | 0.52 | 0.813 | 1 | 0.76 | 0.1 | 2.533 | 11.22 |
18 | 0.82 | 1.02 | 1 | 0.76 | 0.1 | 2.74 | 14.74 |
16 | 1.31 | 1.29 | 1 | 0.76 | 0.1 | 3.01 | 20.24 |
14 | 2.08 | 1.63 | 1 | 0.38 | 0.1 | 2.59 | 23.42 |
12 | 3.31 | 2.05 | 1 | 0.38 | 0.1 | 3.01 | 35.33 |
10 | 5.26 | 2.59 | 1 | 0.51 | 0.1 | 3.81 | 56.56 |
8 | 8.34 | 3.26 | 1 | 0.76 | 0.13 | 5.04 | 92.39 |
14 | 2.08 | 0.62 | 7 | 0.38 | 0.1 | 2.82 | 24.16 |
12 | 3.31 | 0.78 | 7 | 0.38 | 0.1 | 3.3 | 36.36 |
10 | 5.26 | 0.98 | 7 | 0.51 | 0.1 | 4.16 | 57.64 |
8 | 8.34 | 1.23 | 7 | 0.76 | 0.13 | 5.47 | 93.87 |
6 | 13.3 | 1.56 | 7 | 0.76 | 0.13 | 6.46 | 143.78 |
4 | 21.15 | 1.96 | 7 | 0.76 | 0.15 | 7.7 | 219.39 |
3 | 26.37 | 2.2 | 7 | 1.02 | 0.15 | 8.94 | 282.68 |
2 | 33.63 | 2.47 | 7 | 1.02 | 0.15 | 9.75 | 349.87 |
14 | 2.08 | 0.38 | 19 | 0.38 | 0.1 | 2.86 | 24.62 |
12 | 3.31 | 0.47 | 19 | 0.38 | 0.1 | 3.31 | 35.94 |
10 | 5.26 | 0.6 | 19 | 0.51 | 0.1 | 4.22 | 58.64 |
8 | 8.37 | 0.75 | 19 | 0.76 | 0.13 | 5.53 | 94.80 |
6 | 13.3 | 0.95 | 19 | 0.76 | 0.13 | 6.53 | 144.86 |
4 | 21.15 | 1.19 | 19 | 0.76 | 0.15 | 7.77 | 219.78 |
3 | 26.7 | 1.33 | 19 | 1.02 | 0.15 | 8.99 | 281.02 |
2 | 33.63 | 1.5 | 19 | 1.02 | 0.15 | 9.84 | 350.66 |
1 | 42.41 | 1.685 | 19 | 1.02 | 0.18 | 10.825 | 436.51 |
1/0 | 53.49 | 1.89 | 19 | 1.27 | 0.18 | 12.35 | 555.43 |
2/0 | 67.43 | 2.12 | 19 | 1.27 | 0.18 | 13.5 | 687.86 |
3/0 | 85.03 | 2.39 | 19 | 1.27 | 0.18 | 14.85 | 861.59 |
4/0 | 107.2 | 2.68 | 19 | 1.27 | 0.18 | 16.3 | 1070.17 |
250 | 126.7 | 2.09 | 37 | 1.52 | 0.2 | 18.07 | 1279.62 |
300 | 152 | 2.29 | 37 | 1.52 | 0.2 | 19.47 | 1521.50 |
350 | 177.3 | 2.47 | 37 | 1.52 | 0.2 | 20.73 | 1757.21 |
400 | 202.7 | 2.64 | 37 | 1.52 | 0.2 | 21.92 | 1995.50 |
500 | 253.4 | 2.95 | 37 | 1.52 | 0.2 | 24.09 | 2469.24 |
600 | 304 | 2.52 | 61 | 1.78 | 0.23 | 26.7 | 2985.99 |
650 | 329 | 2.62 | 61 | 1.78 | 0.23 | 27.6 | 3217.59 |
700 | 354.7 | 2.72 | 61 | 1.78 | 0.23 | 28.5 | 3457.87 |
750 | 380 | 2.82 | 61 | 1.78 | 0.23 | 29.4 | 3706.84 |
800 | 405.4 | 2.91 | 61 | 1.78 | 0.23 | 30.21 | 3938.35 |
900 | 456 | 3.09 | 61 | 1.78 | 0.23 | 31.83 | 4422.47 |
1000 | 506.7 | 3.252 | 61 | 1.78 | 0.23 | 33.288 | 4882.25 |
3 Annual manufacturing capacity has reached 3 Billion RMB
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
