Home > Products > Steel Coil > Wooden Grain Ppgi

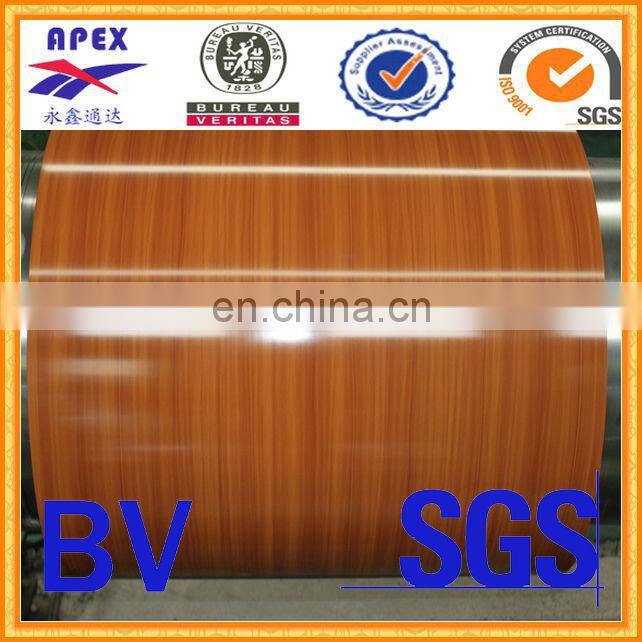

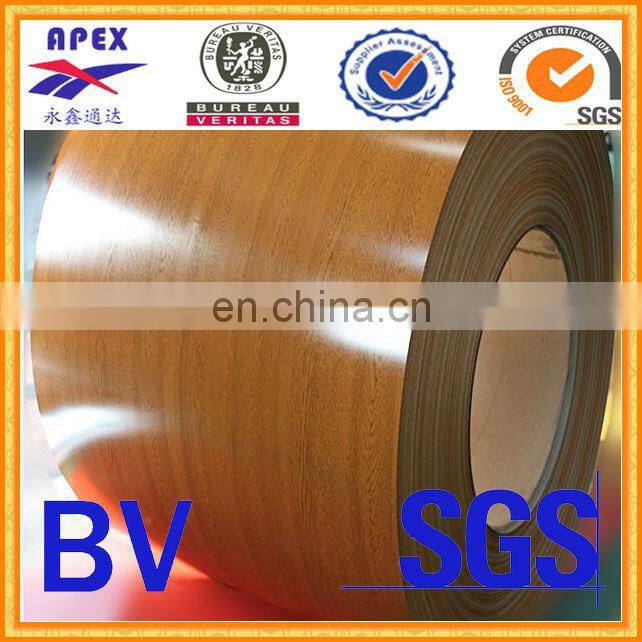

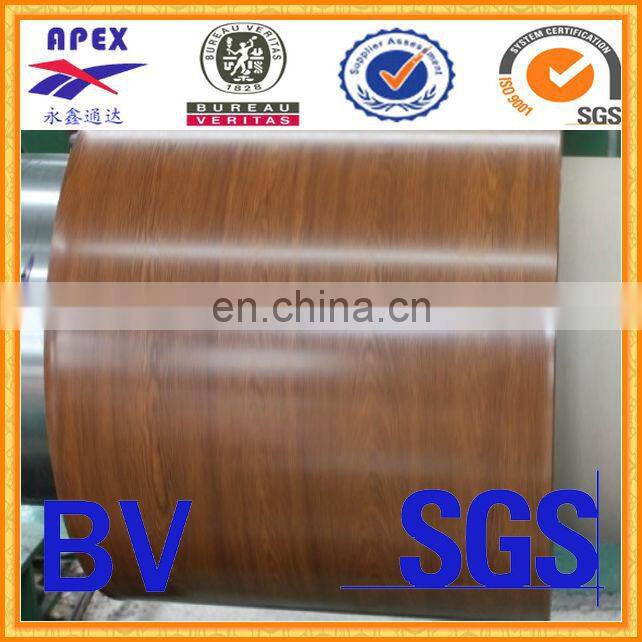

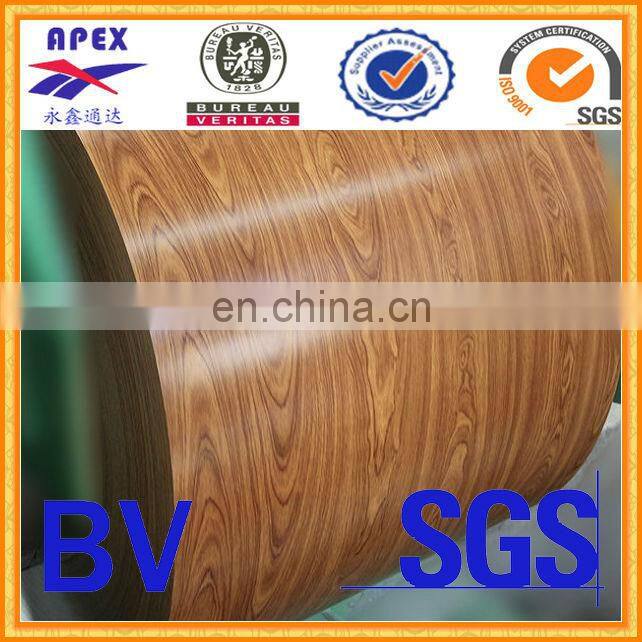

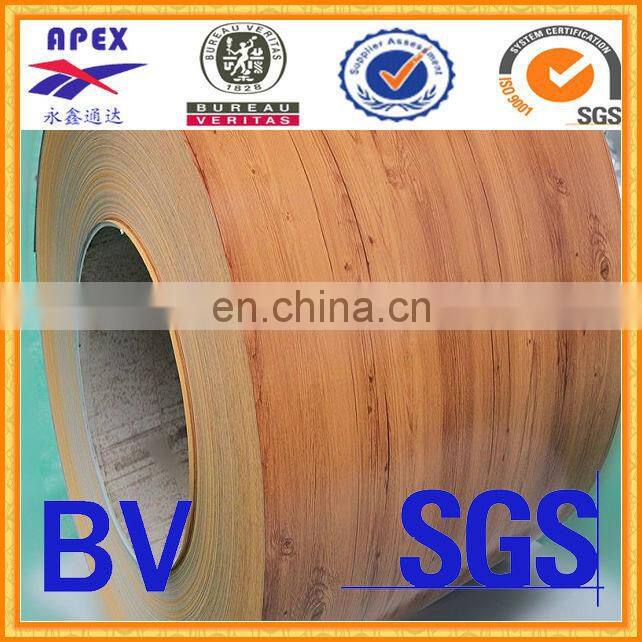

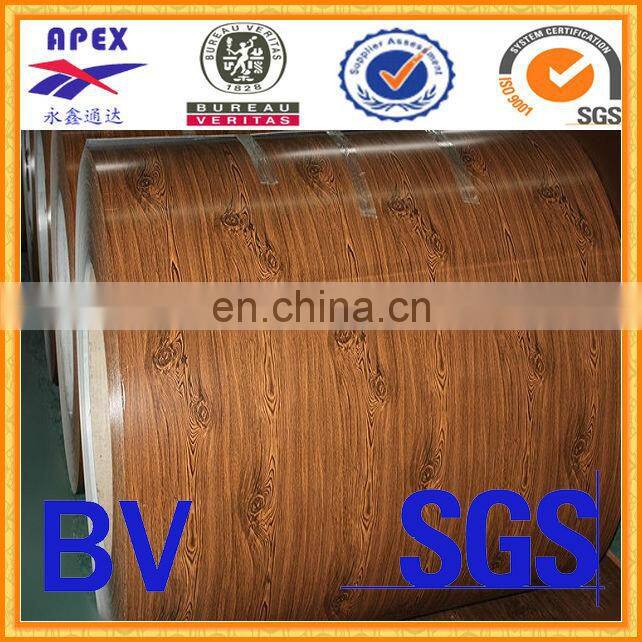

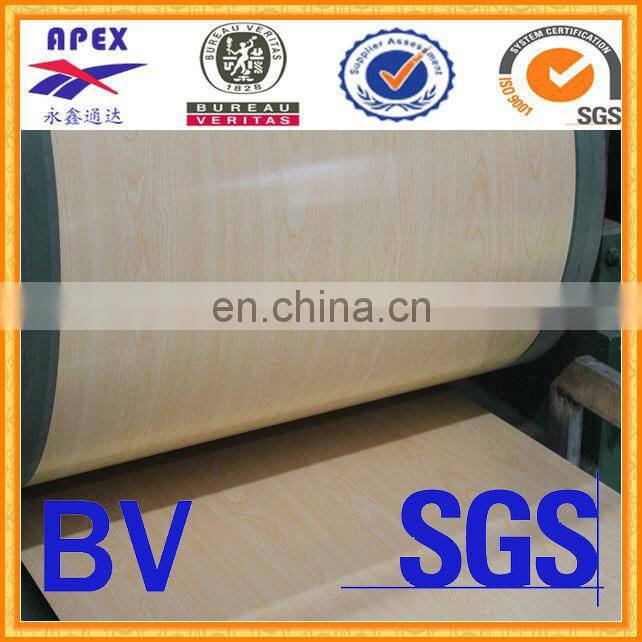

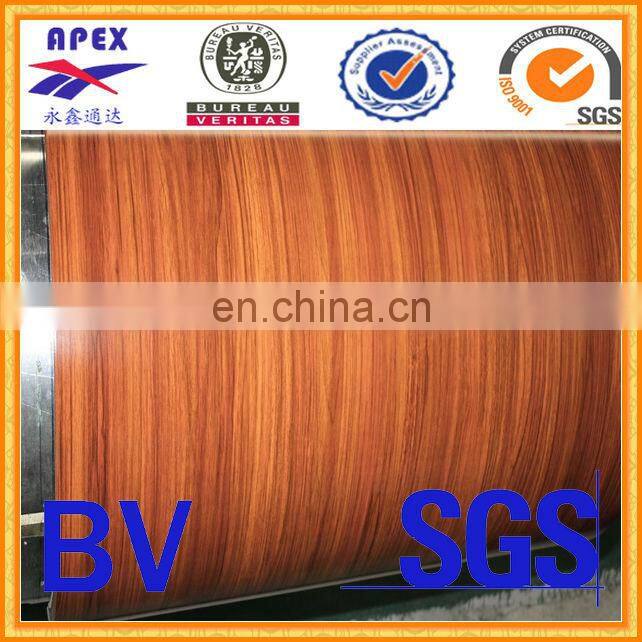

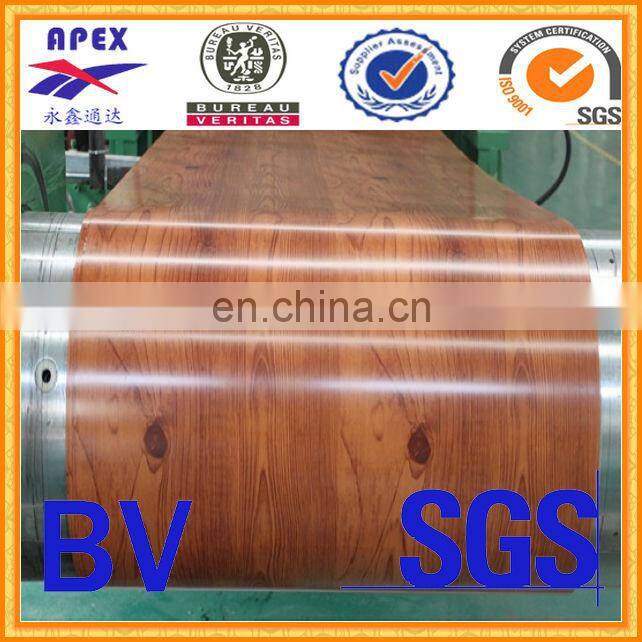

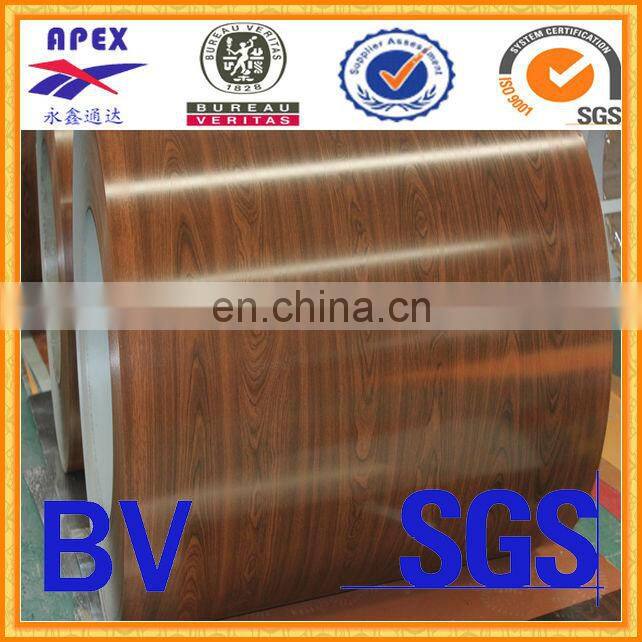

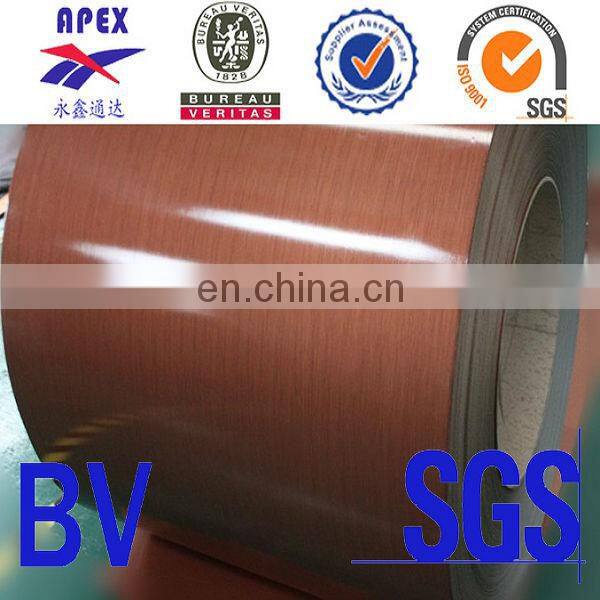

Wooden Grain Ppgi
US$ 700 - 1,200
/ Ton
1 Ton(Min. Order)
- Tianjin
- T/T Credit Card
You May Like
Product Details
| Brand Name | Apex | Place of Origin | Tianjin, China | |
| Model Number | steel coils | Length | coils | |
| Thickness | 0.17-1.2mm | Type | Steel Coil | |
| Width | 600-1500mm(914,1000/1200mm,1220mm,1250mm) | |||
| Surface Treatment | Coated | Technique | Cold Rolled | |
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Grade | DX51D | |
| Special Use | High-strength Steel Plate |
Product Description
General features of wooden ppgi
Wooden ppgi are prepainted on Hot-dip galvanized base-steel, and then hardening in oven. It has several series: high glossy, matt (low light), wooden grain, flower pattern etc. Film laminated gives better corrosion protection, elegant and clean image. So it becomes one of the most sought-after household appliances, interior construction materials.
- No Dust Mark, No Orange Peel, No embossed surface, etc
- Green ROHS Production
- High Formability
- Resistant to color fade; easy clean surface
- Rust, Corrosion and Scratch Resistant
- Long lasting
Structure of Cross-section
| Items | Thickness | Type | Features |
Protection Film | 50um | Polyethylene | protecting from scratches and contamination(Optional) |
| Finished Coat | 10um | PVDF | Protecting printed layer and enhances the appearance of the surfaces |
| ≤1um | Ink,Polyester | Various printing patterns,3 colors overprint | |
| Top caot | 20um | polyester Fluorine | Chemical resistance,formability and patterns multifomity |
| Primer Coa | 5um | Polyester | Workability,corrosion resistance and adhesion to the primer coating |
| Chemical Treatment | ≤1um | Chromate | Good adhesion and corrosion resistance |
| Substrate | 0.2-1.2mm | GI/GL | GI/GL |
| Chemiacal Treatment | ≤1um | Chromate | Good adhesion and corrosion resistance |
| Back Coat | 5um | Epoxy | corrosion resistance and adhesio to the substrate |

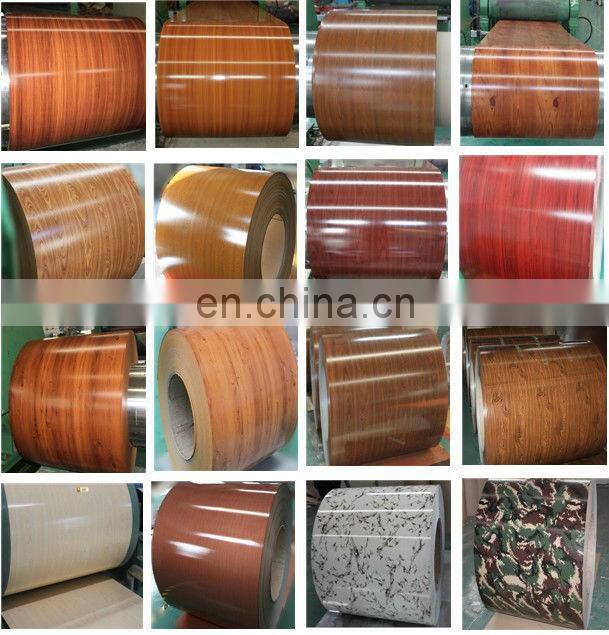

Available wooden grain pattern
Application of wooden ppgi
-Construction
-decoration
-home appliance
-furniture
-top plate
-wallboard
-all kinds of doors
