Home > Products > Generator & Welder > 50HZ 160A Diesel Welder Generator
50HZ 160A Diesel Welder Generator
US$ 499 - 699
/ Set
1 Set(Min. Order)
- Fuzhou
- T/T Credit Card
You May Like
Product Details
| Brand Name | SDS | Place of Origin | Fujian, China | |
| Model Number | SDG6500EWH | Rated Current | 8.7A 9.2A | |
| Output Type | AC Single Phase | Speed | 3000 3600 | |
| Frequency | 50 60 | Rated Voltage | 230V 240V | |
| Rated Power | 2KW 2.2KW |
Product Description
Product Description

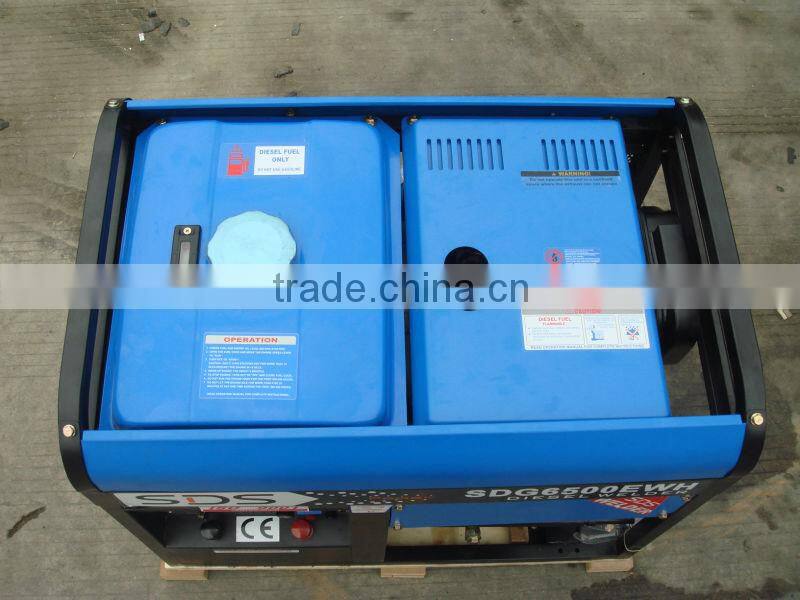

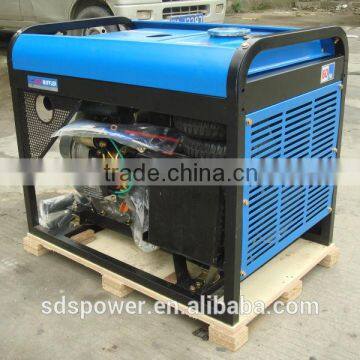

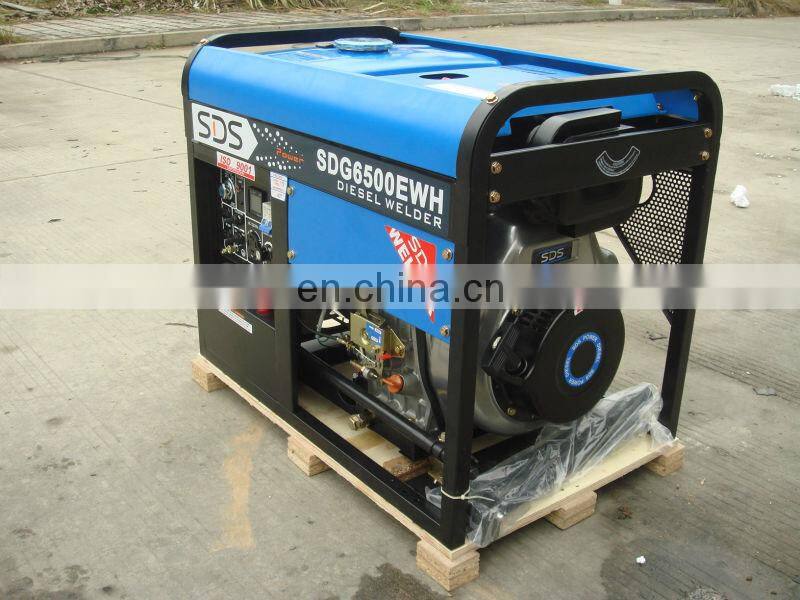

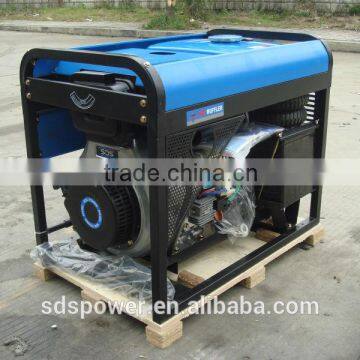

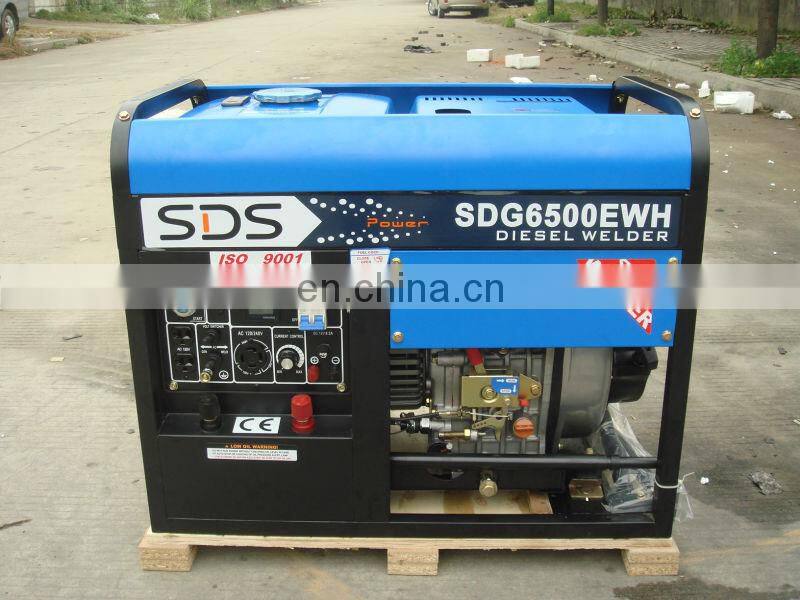

50HZ 160A diesel welder generator
1)2.2kw, 160A
2)Strong welding performance

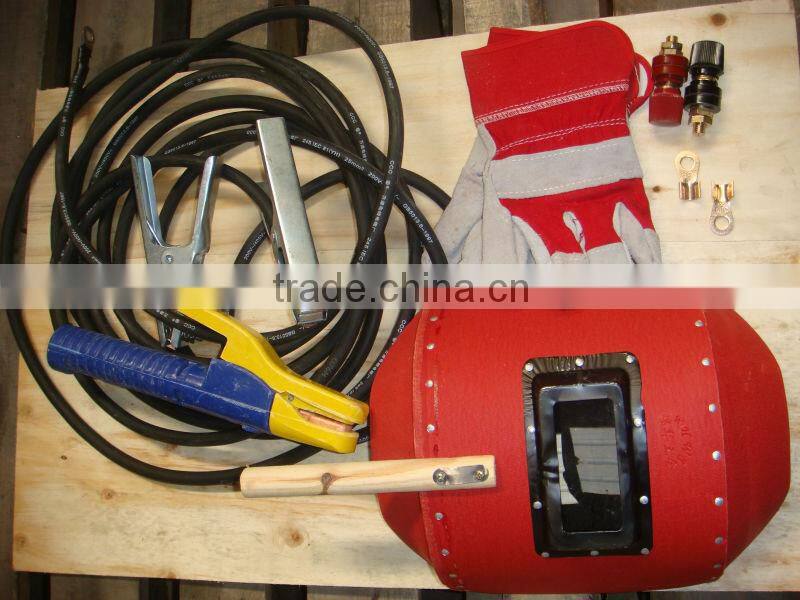

3)One stop shopping, welding kits available
Important Features:
12 months warranty
The best quality in China

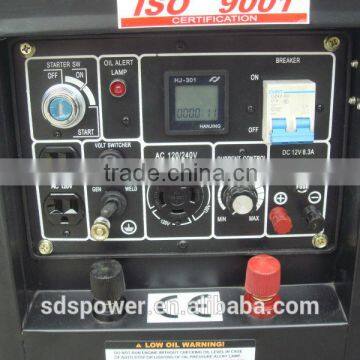

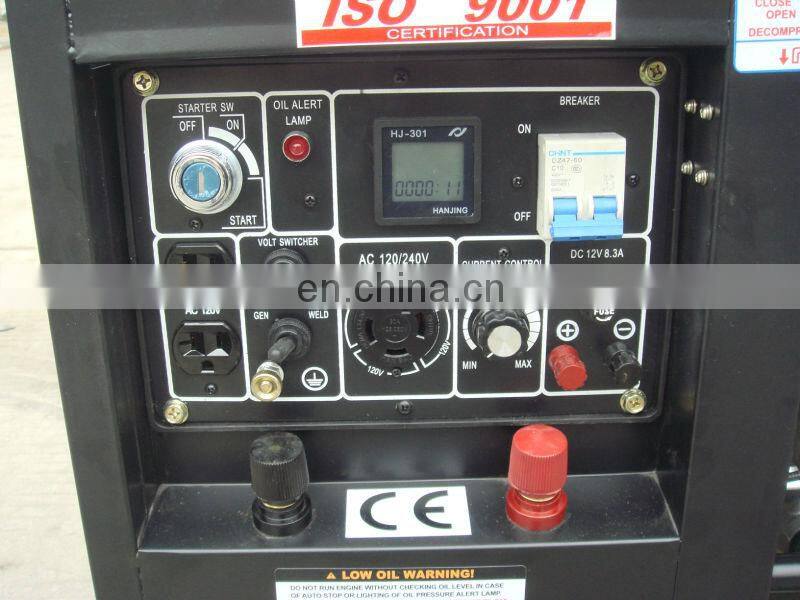

*AC auxiliary current and DC welding current can be available on same generator
*Low fuel consumption: over 10 hours running on single tank fuel
*Automatically reduce the engine speed at zero load, equipped with noise-deadening
*Auto decompression ensures easy manual starting.
*Handcart design available as option
*Low oil shut down automatically
| Basic parameter | ||
| Type: | Air-cooled Diesel Generator | |
| Phase Number | Single Phase | |
| Model: | SDG6500EWH | |
| Rated Frequence(Hz) | 50 | 60 |
| Rated Voltage(V) | 230 | 240 |
| Rated current(A) | 8.7 | 9.2 |
| Rated output power(kVA) | 2 | 2.2 |
| Rated rotation speed(rpm) | 3000 | 3600 |
| Power factor cosØ | 1 | |
| Noise level(dBA(@)7m)(zero load~full load) | 80 | |
| Excitation | Self-excitation and constant voltage(AVR) | |
| Starter system | 12V electric starter | |
| Engine model | SD186AE | |
| Engine type | Single-cylinder,vertical,4-stroke,Air-cooled direct-injection | |
| Fuel | 0# diesel oil(summer),-10# diesel oil(winter) | |
| Lube | SAE10W30 (above CC grade) | |
| LUB. OIL capacity | 1.65 | |
| Low Oil Shutdown | Automatic | |
| Fuel tank capacity(L) | 12.5 | |
| Continuous running time | 10 hours | |
| Shape parameter | ||
| Overall dimension[mm(inch)] | 720 Χ 480 Χ 645 ( 30.71 Χ 20.47 Χ 27.17 ) | |
