Good Anti-congestion EPDM Fine Bubble Disc Air Diffuser With Check Valve for Water Treatment and New Technology Aquaculture Farm

Good anti-congestion Fine Bubble Disc air Diffuser with check valve for water treatment and new technology aquaculture farm

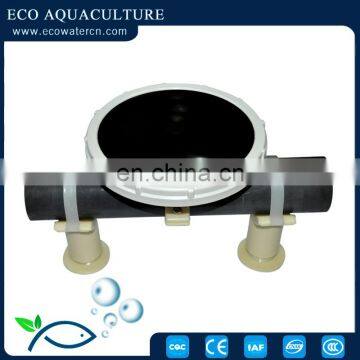

Single EPDM membrane air diffuser disc

Each strong EPDM (rubber) membrane is composed of up to 1000 tiny holes that release thousands of micro bubbles when compressed air inflates the disc. Energy saving design requires only 0.5 CFM of air supply for proper operation. For steep slope and deep water applications consider an aeration disc diffuser system as it provides fine bubbles from one location.

The self-cleaning flexible membrane openings prevent clogging in the dirtiest of lakes. Immersion in the muddiest of pond bottoms even where the water is dirty or brackish will not hamper the performance of the disc. Salt water or hard water or sludge thickened basins are not a problem for these powerful diffusers.

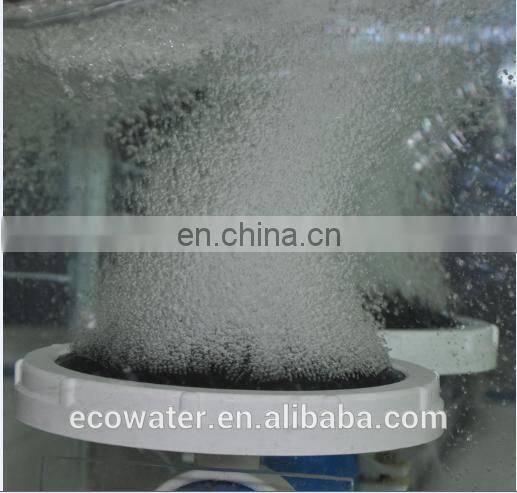

Most aerating bubbles produced with the powerful micro bubble technology are only .5 to 1.0 millimeters in diameter. The fundamental decrease in bubble size dramatically increases oxygen transfer rates. This will provide your pond with the most in aeration efficiency. The male connection is ¾” threads.

These rugged assemblies are ideal for updating and retrofitting worn-out, clogged or broken airstone type diffusers. No more airstone acid cleaning or frequent replacement necessary.

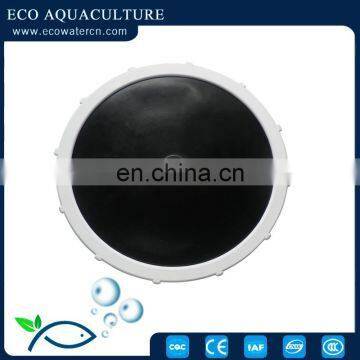

Flexible 7” or 9″ diameter membrane disc creates a strong, reliable bubble column for efficient lifting volume and aerating action.

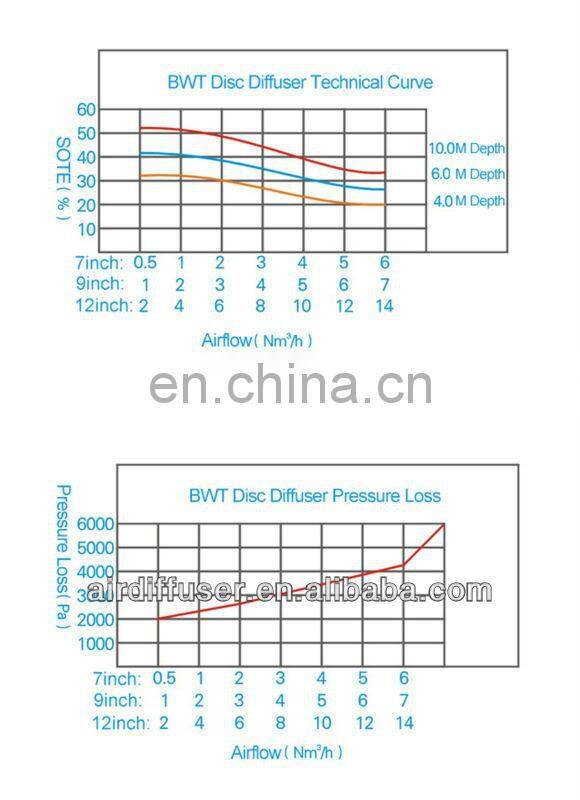

Air Diffuser Type: Round EPDM membrane diffuser disc, 7” or 9”. CFM: 0.5 – 3 cfm for 7” disc, 0.5 – 6 cfm for 9” Bubble Size: Fine Minimum Pressure: 0.5 – 0.6 psi Technical Information :

·         Self-cleaning, low maintenance construction

·         Micro-bubble technology

·         Five year warranty Membrane Diffusers

·         Single membrane features a non-stick coating to prevent biofilm and calcium build-up

                             Good anti-congestion

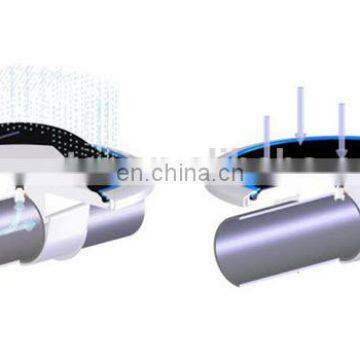

Membrane Disc Diffuser pores will close to the disc surface when stopping working, which prevents the pores from clogging. Moreover, one-way valve is integrated to reduce fluid or solid permeable back into the pipeline, which makes the device very rarely clogged, minimum maintenance and long life.

                                Avoids clinging from algae

Flat design, preventing the accumulation of bubbles from increasing the size of bubbles. EPDM good elastic rubber material, smooth surface to prevent algae and crustaceans from clinging.

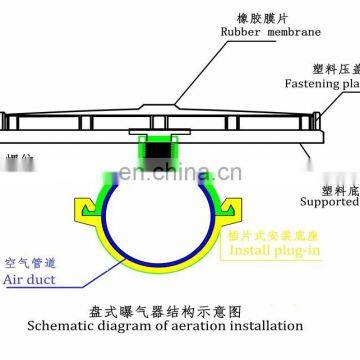

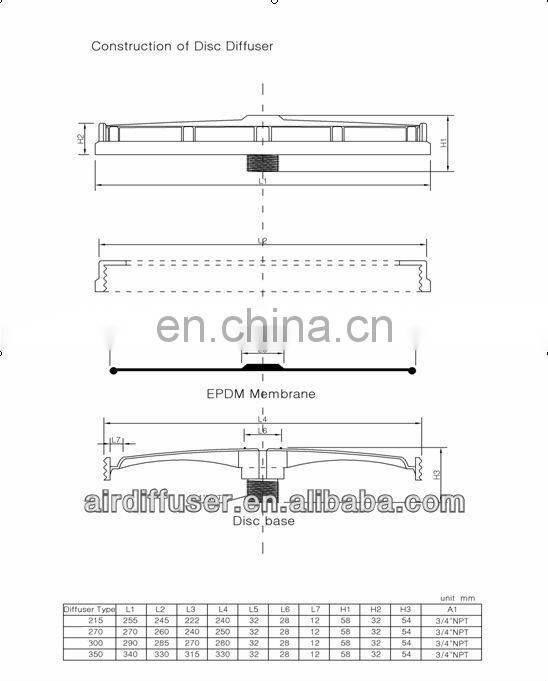

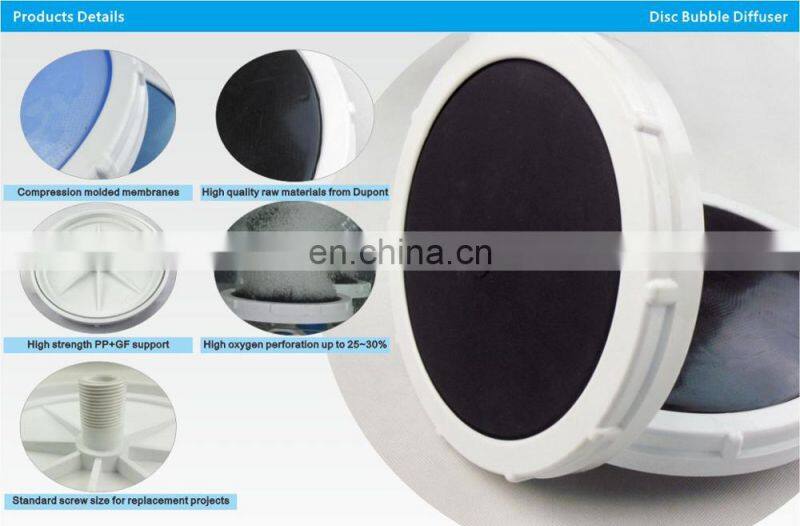

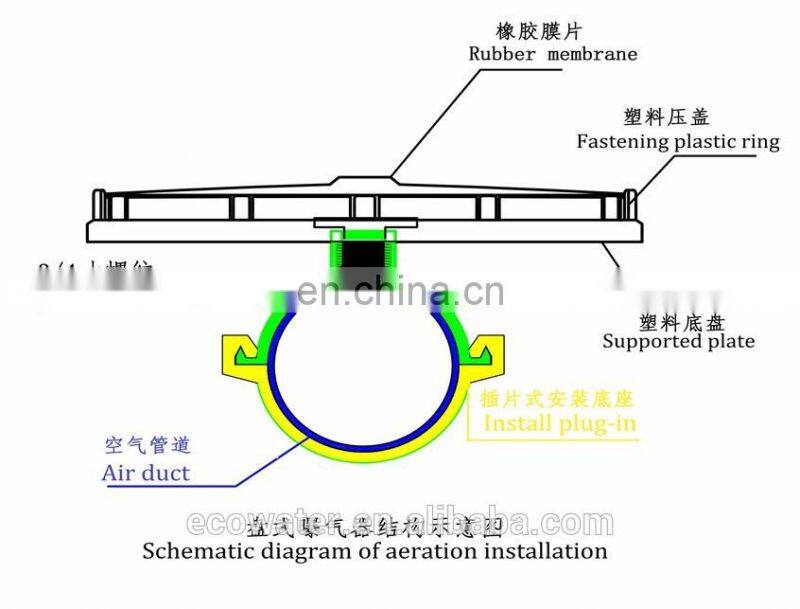

Structure:

1.Membrane:Adopted the EPDM/Silicone  to melt. It can restrain the ageing effectively of the membrane, and protract the using life over 8 years.

2.Slit Hole :Adopted the "^" shaped for perforating to prevent adverse of waste water effectively and the bubble would be less than 0.3nn during aeration.

3.Base :Made by PP+FIBER GLASS , well resistance to corrosion and service long life.

Advantages:

 *Flexible replacement for upgrading projects

*Multi installation for PVC,HDPE,Steel,etc.

*High oxygen transfer effciency

*Intermittent operation capability

*High resistance to corrosion

*Back flow prevention

*Quick installation and low maintenance

*Low pressure loss

*Water-stirring effect

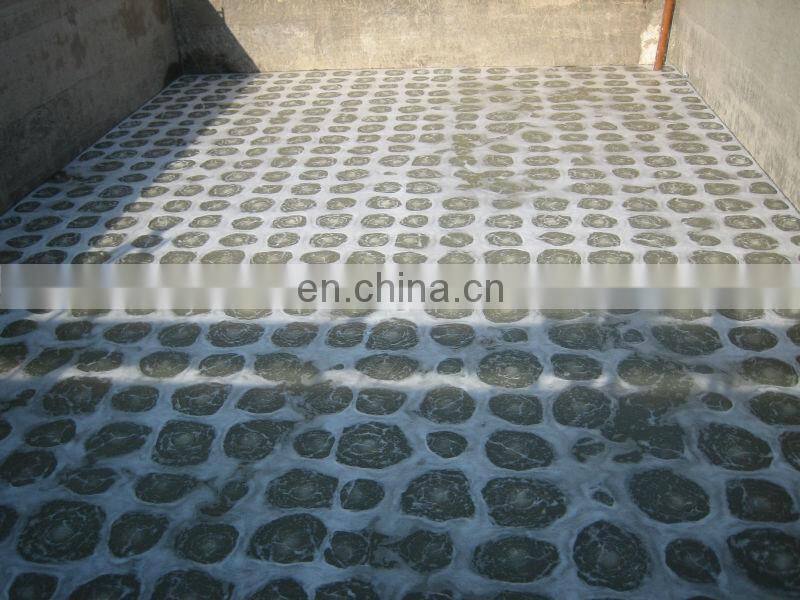

Application:

Biological treatment

Active Sludge treatment

Aquaculture treatment
