5kw silent diesel generator portable
USD $1 - $2
/ Set
5 Sets(Min.Order)
- 8000 Set / Sets per Month
- FUZHOU
- T/T Credit Card
You May Like
Product Details
| Brand Name | SDS | Place of Origin | Fujian, China | |
| Model Number | SDG6500SA | Rated Current | 21.7AH 22.9/45.8AH | |
| Output Type | AC Single Phase | Speed | 3000 3600 | |
| Frequency | 50hz 60hz | Rated Voltage | 230v 240/120v | |
| Rated Power | 5kw 5.5kw |
Product Description
Product Description

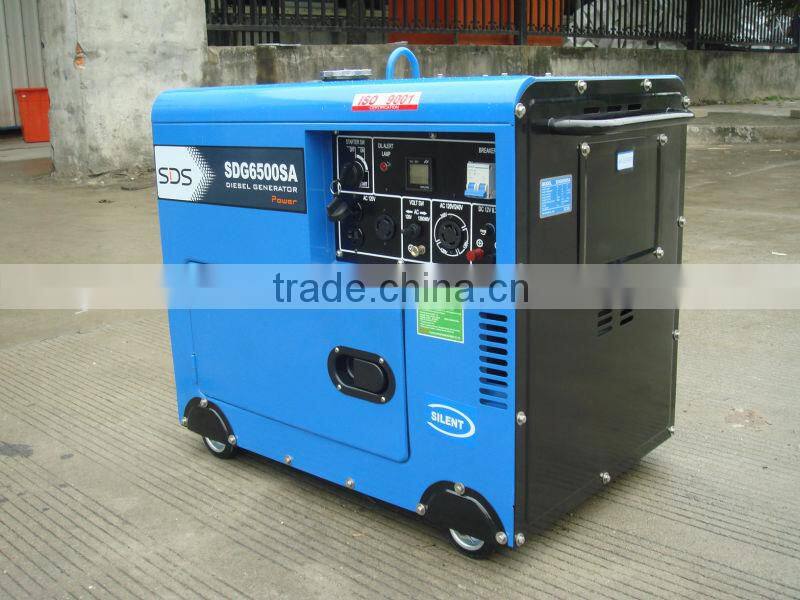

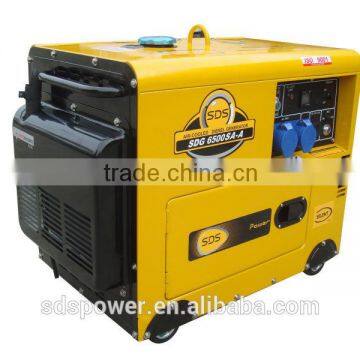

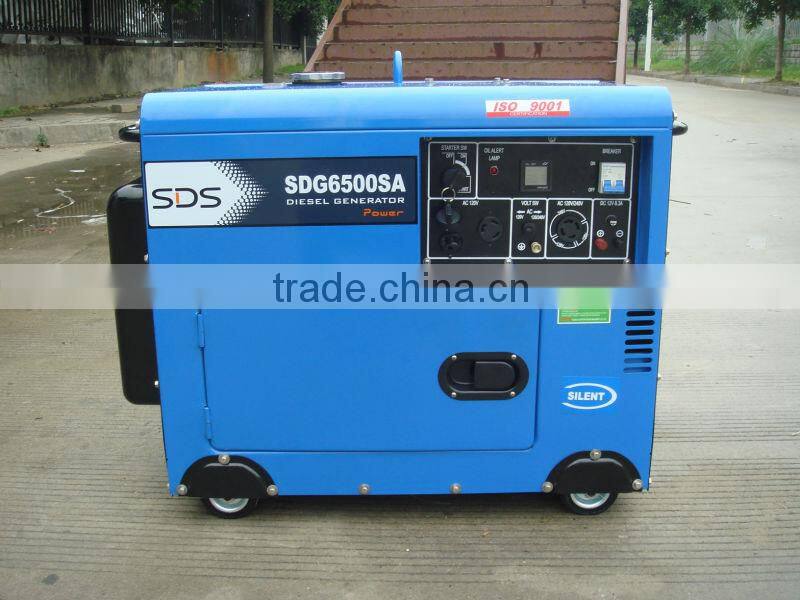

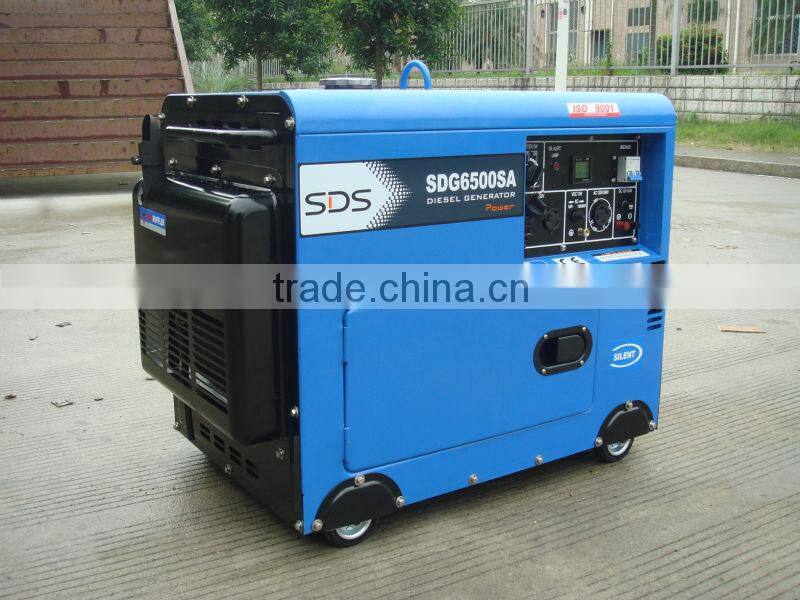

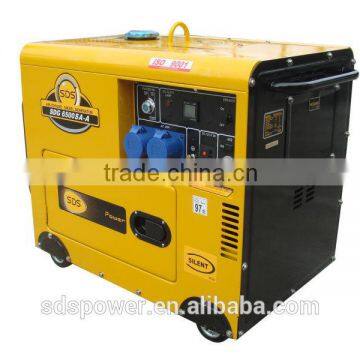

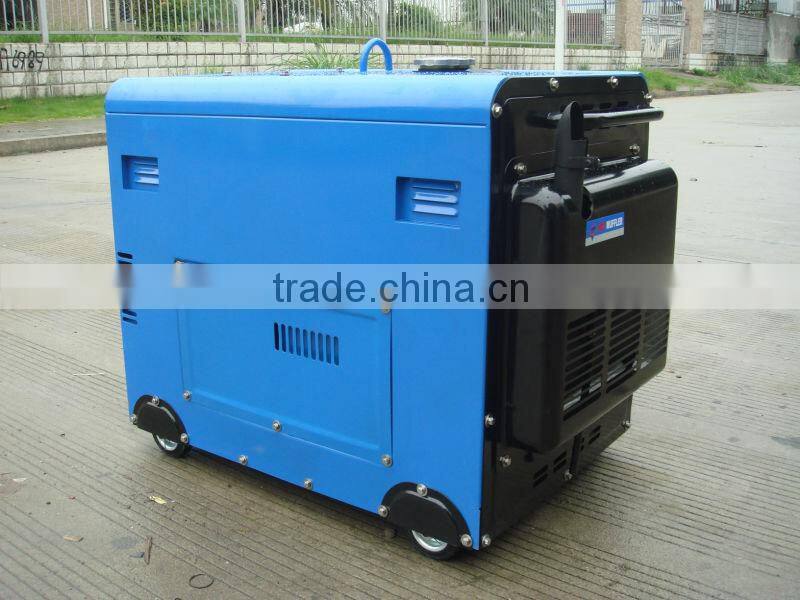

5kw silent diesel generator portable
1)1/3 phase Available
2)Compact in structure
3)Low fuel consumption
4)CE/EPA approved
Important Features:
free panel light as promotion now
100% copper wire alternator, best quality AVR,
Cold-rolling,
Original Japan NSK/ NTN bearings,

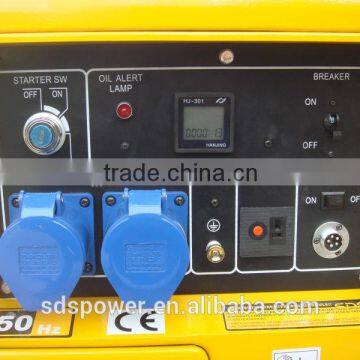

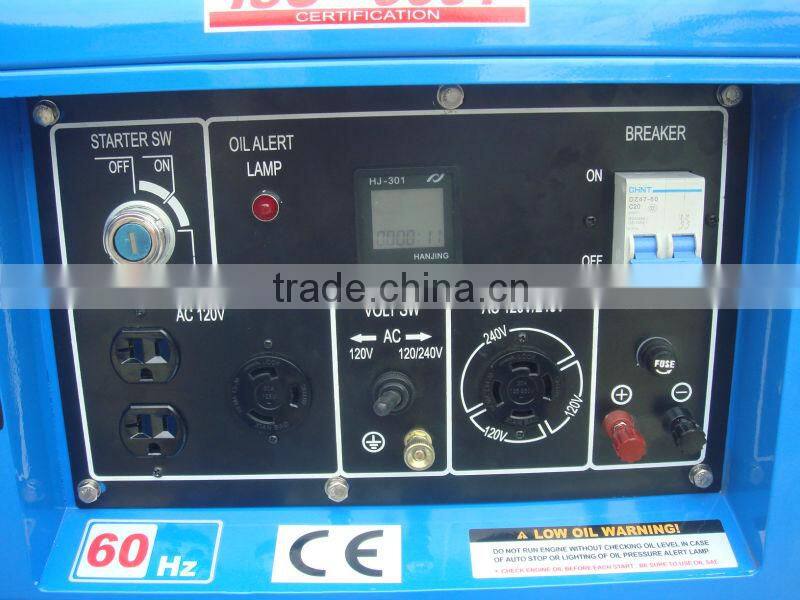

3-in-1 digital display,
Black air breaker with overload protection,
36Ah big battery,
12 months warranty
| Type: | Air-cooled Diesel Generator | |
| Phase Number | Single Phase | |
| Model: | SDG6500SA | |
| Rated Frequence(Hz) | 50 | 60 |
| Rated Voltage(V) | 230 | 240/120 |
| Rated current(A) | 21.7 | 22.9/45.8 |
| Rated output power(kVA) | 5.0 | 5.5 |
| Max output power(kVA) | 5.5 | 6.0 |
| Rated rotation speed(rpm) | 3000 | 3600 |
| DC output | 12V/8.3A | |
| Power factor cosØ | 1 | |
| Noise level(dBA(@)7m)(zero load~full load) | 70 | |
| Structure Type | Slient Type | |
| Excitation | Transistorized self-excitation constant voltage(AVR) | |
| Starter system | Electric Start(12V) | |
| Engine model | SD186AE | |
| Engine type | Single-cylinder.vertical,4-stroke Air-cooled, diesel engine | |
| LUB. OIL capacity | 1.65 | |
| Voltage Regulation | AVR | |
| Low Oil Shutdown | Automatic | |
| Fuel tank capacity(L) | 15 | |
| Fuel consumption(g/kw.h) | 275 | |
| Continuous running time | 12 hours | |
| Insulation grade | B | |
| Shape parameter | ||
| Overall dimension[mm(inch)] | 915 Χ 570 Χ 750 ( 38.58 Χ 22.83 Χ 30.31 ) | |
| Dry weight[kg(lbs)] | 171 ( 377 ) | |
