Home > Products > air-cooled diesel generator > 60hz 5.5kva Big Tank Single Phase Diesel Generator

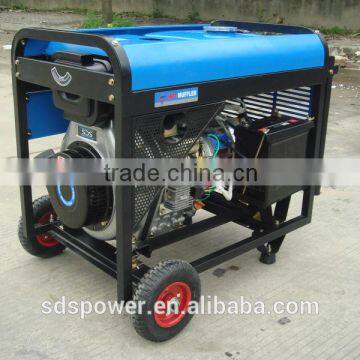

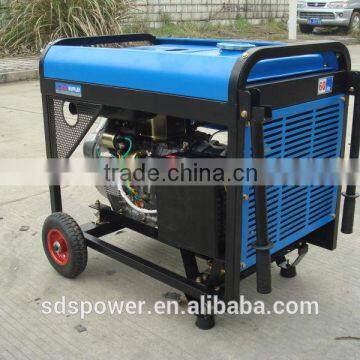

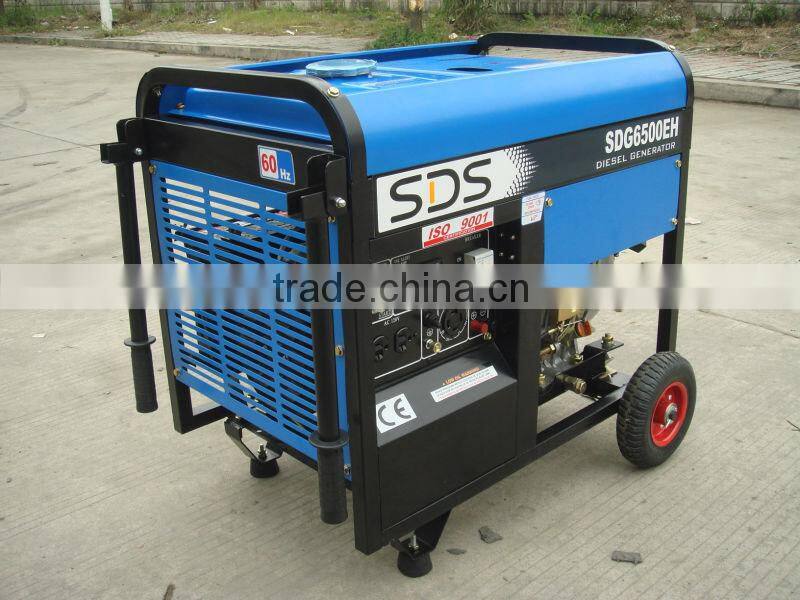

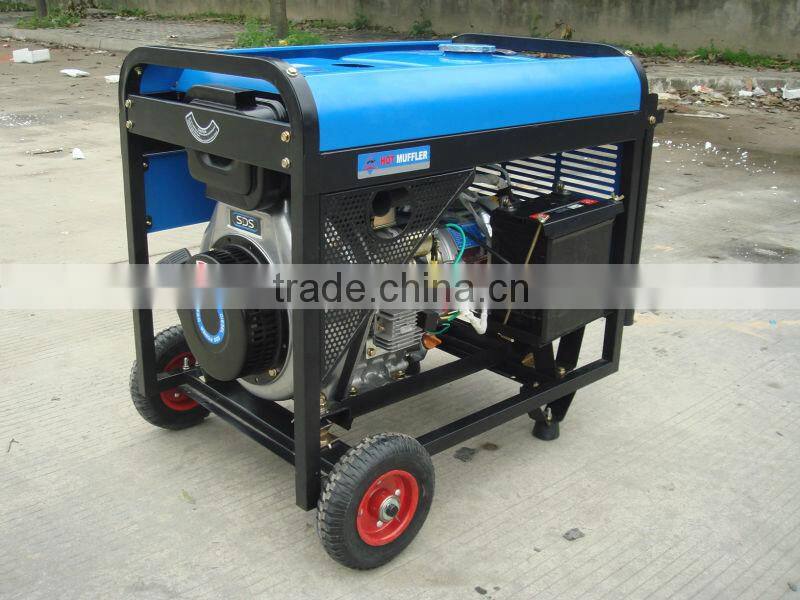

60hz 5.5kva Big Tank Single Phase Diesel Generator
USD $1 - $2
/ Unit
5 Units(Min.Order)
- 8000 Unit / Units per Month
- FUZHOU
- T/T Credit Card
You May Like
Product Details
| Brand Name | SDS | Place of Origin | Fujian, China | |
| Model Number | SDG6500L | Rated Current | 22.9/45.8A | |
| Output Type | AC Single Phase | Speed | 3600RPM | |
| Frequency | 60hz | Rated Voltage | 120V/240V | |
| Rated Power | 5.5kva |
Product Description
Product Description
60hz 5.5kva Big Tank Single Phase Diesel Generator

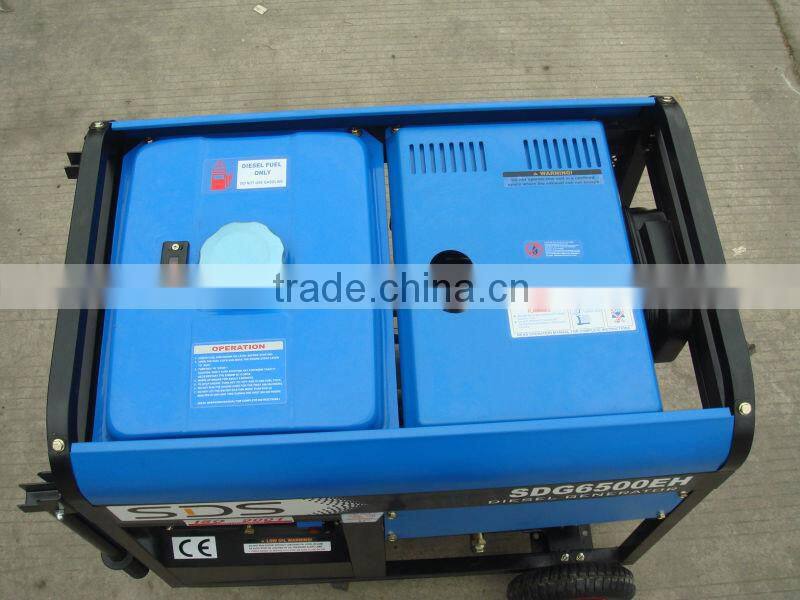

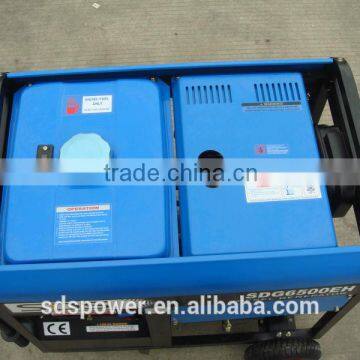

1)Big tank
2)Low fuel consumption
3)Handcart design easy to move
4)12 months warranty
Important Features:
*Low fuel consumption
*Wide application
*Auto decompression ensures easy manual starting
*Low vibration & Quiet running
*Low oil shut down automatically
| Type: | Air-cooled Diesel Generator | |
| Phase Number | Single Phase | |
| Model: | SDG6500L | |
| Rated Frequence(Hz) | 50 | 60 |
| Rated Voltage(V) | 230 | 240/120 |
| Rated current(A) | 21.7 | 22.9/45.8 |
| Rated output power(kVA) | 5.0 | 5.5 |
| Max output power(kVA) | 5.5 | 6.0 |
| Rated rotation speed(rpm) | 3000 | 3600 |
| DC output | 12V/8.3A | |
| Power factor cosØ | 1 | |
| Noise level(dBA(@)7m)(zero load~full load) | 80 | |
| Structure Type | Open-frame Type | |
| Excitation | Transistorized self-excitation constant voltage(AVR) | |
| Starter system | Recoil starter | |
| Engine model | SD186A | |
| Engine type | Single-cylinder.vertical,4-stroke Air-cooled, diesel engine | |
| LUB. OIL capacity | 1.65 | |
| Voltage Regulation | AVR | |
| Low Oil Shutdown | Automatic | |
| Fuel tank capacity(L) | 12.5 | |
| Fuel consumption(g/kw.h) | 275 | |
| Continuous running time | 10hours | |
| Insulation grade | B | |
| Shape parameter | ||
| Overall dimension[mm(inch)] | 720 Χ 480 Χ 645 ( 30.70 Χ 20.47 Χ 27.17 ) | |
| Dry weight[kg(lbs)] | 95 ( 210 ) | |
