Factory Directly Supply BlowThroughRotaryAirlockValve
- shanghai guangzhou qingdao
- T/T Credit Card
You May Like
-
Blow Through Rotary Airlock Valve for Rice Conveying
-
Rotary Airlock / Discharge Valve Used for Sugar Processing Plant
-
Blow Through Rotary Valve Used for Feeding Wheat Flour Into a Pneumatic Conveying Pipeline at a Fixed Flow Rate
-
Blow Through Airlock Valve for Cement Industry
-
Blow-through Rotary Airlock Valve
-
Blow Through Rotary Airlock Valve for Pneumatic Transport
Product Details
| Brand Name | BOOK TECH | Place of Origin | Henan, China | |
| Model Number | rotary airlock valve TGFY | |||
| Application | General | |||
| Standard or Nonstandard | Standard | Pressure | High Pressure | |
| Port Size | 1/2" | |||
| Media | Gas | Temperature of Media | Normal Temperature |
Product Description
Book technology material handling equipment and components are designed for a wide variety of applications in the plastics, chemicals, food and pet food, pharmaceutical, minerals and nonwovens industries. Our components ensure that all aspects of the complete process system conform with the most current process design standards.
PLASTICS
Powerful rotary valves to ensure gentle, reliable and economical handling of powders and pellets or granules.
FOOD
Innovative technology for optimum operational reliability and sanitary production.
MINERALS
Track-proven wear protection concepts for a long service life.
Description:
Rotary airlock valves are also called rotary feeders, rotary valves, or just rotary airlocks. Used in both pressure style and vacuum style pneumatic conveying systems, these valves serve as a "lock" to prevent air loss while simultaneously performing vital material handling functions. Though simple, the rotary airlock valve is a critical component to the efficiency of a conveying system.
Rotary airlock feeders have wide application in industry wherever dry free-flowing powders, granules, crystals, or pellets are used. Typical materials include: cement, ore, sugar, minerals, grains, plastics, dust, fly ash, flour, gypsum, lime, coffee, cereals, pharmaceuticals, etc.
Industries requiring this type include cement, asphalt, chemical, mining, plastics, food, etc.
Rotary feeders are ideal for pollution control applications in wood, grain, food, textile, paper, tobacco, rubber, and paint industries, the Standard Series works beneath dust collectors and cyclone separators even with high temperatures and different pressure differentials.
We will continue to adhere to the customer is god, adhere to the customer service as the first brand of the enterprise. Dear business friends, book is willing to use the most sincere heart, the best service and your sincere cooperation
Low leakage
0.08MM ~ 0.1 MM . The right production can ensure air lock .So the production can meet your satisfaction

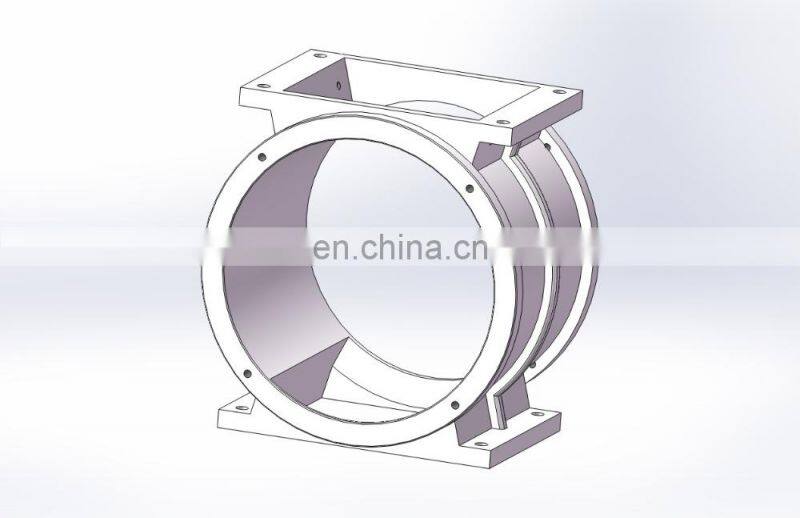

Casing
Cast casing is strong with QT600 standard raw material .High quality make sure rotary valve have long working life

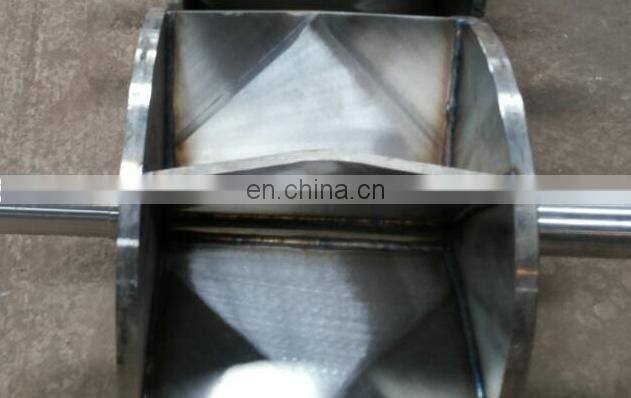

Closed end Rotor
Closed end rotor can protect rotary valve body and make air leakage as small as new

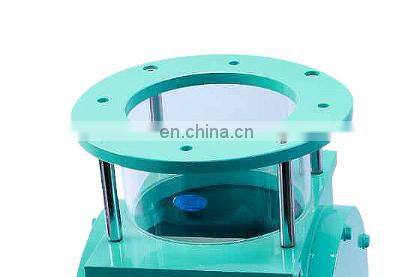

inspection Windows
Transparent PMMA material help you fast inspection with production.Easy to manage.
Sealing
Teflon seal and mechanical seal.Protect bearing for damaging and help with sealings.

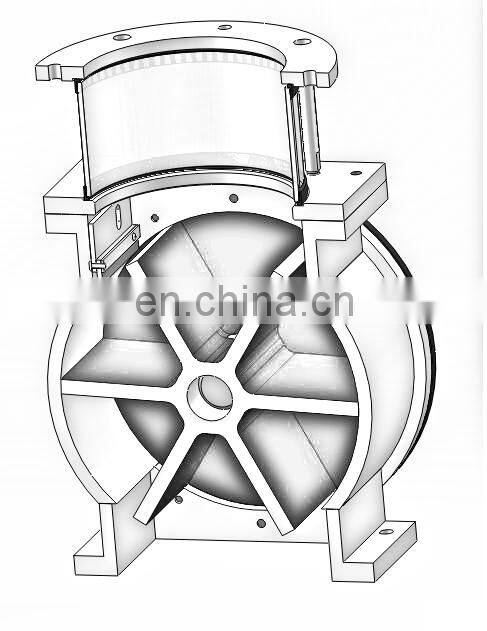

Anti-jam Rotor
Anti-Jam Rotor help rotary valve without jam ,especially when bulk material going through .
Equation : Airlock Rotary Valve capacity calculation
m = capacity in kg/h
Vpocket = volume of one pocket in liters
npocket = number of pockets
N = rotation speed in rpm
ρ = bulk powder density in kg/l
η = filling rate - to be calculated from supplier abascus

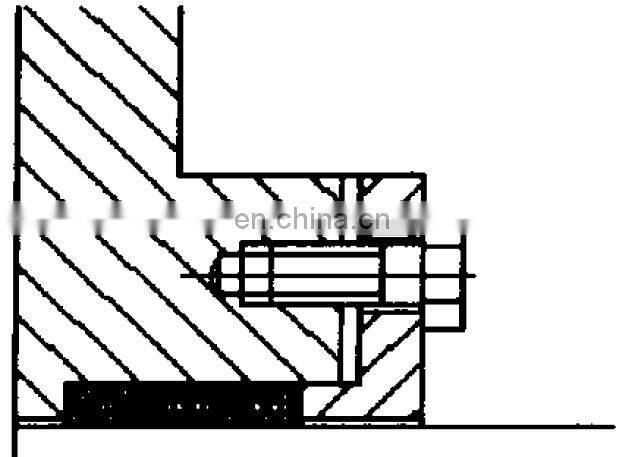

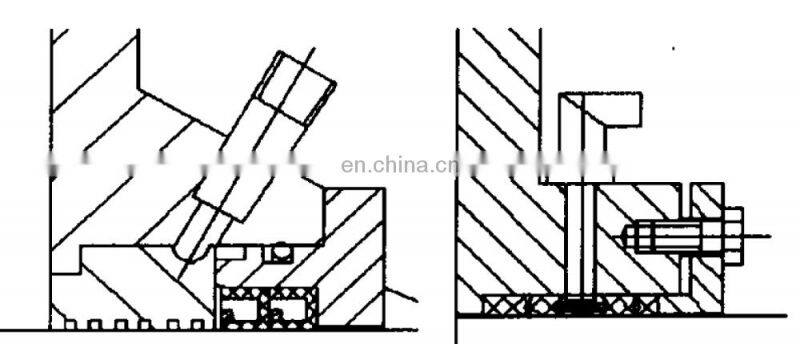

Packing Seal
Mechanical Seal
