Heavy Duty Electrical Water Pump
- TIANJIN QINGDAO SHANGHAI NINGBO XIAMEN GUANGZHOU
- T/T Credit Card
You May Like
Product Details
| Brand Name | Milestone | Place of Origin | Hebei, China | |
| Model Number | MS | |||
| Power | Electric | |||
| Usage | Water | Theory | Centrifugal Pump | |
| Standard or Nonstandard | Standard | Structure | Single-stage Pump | |
| Pressure | High Pressure |
Product Description

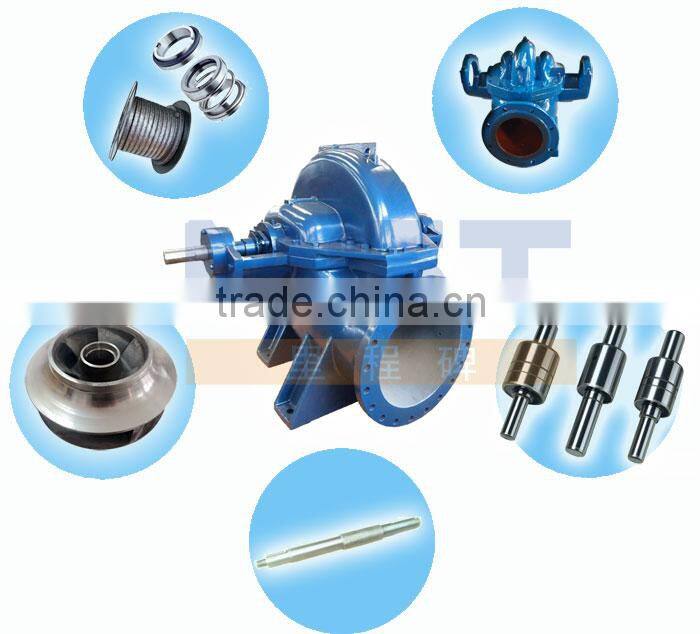

Heavy Duty Electrical Water Pump
Introduction
Horizontal Split Case Centrifugal Water Pump are late-model energy-saving horizontally split pumps newly developed by us on the base of the old style double suction pumps at home and abroad.They are used to handle clean water or other liquids similar to waterin physical and chemical dium temperature not exceeding 80°C.This series of pumps are applicable for water supply for factories,mining,urban water supply and drainage,power stations, farmland irrigation and drainage,and soon.Shaft sealing is soft packing sealing.
Curves Chart
Pump Features
- Adopts horizontal, vertical axis medium open type double pump shell structure, lining for cemented carbide or rubber has good wear-resisting, corrosion resistance and high reliability.
- High efficiency hard alloy, and low NPSH.
- To meet the different operation conditions, adopted the brief type structure bearing parts, selected high bearing capacity design, alloy bearing grease lubrication oil.
- Through adjusting the clearance between protection board and impeller, ensuring the pump efficient operatio.
- Using packing seal, impeller sealing , container type mechanical seal to adapt to different operating mode requiremen.
- Pump and drive can choose straight league transmission, triangle, hydraulic transmission device coupled transmission, reducer drive.
- The outflow direction can be installed by eight Angle rotation to adapt to different site installation condition.
- Available to use multipole series, to satisfy the long-distance transmission requirements.
Detail Specification
| Item | Split case/double suction water pumps |
| Model | MS |
| Material | Cast iron SS 304,SS 316L, etc |
| Color | Decided by user |
| Mode | Horizontal |
| Impeller | Double suction impeller |
| Drive | Belt or coupling |
| Seal | Packing seal or mechanical seal |
| Speed | 2950r/m, 1450r/min, 970r/min,730r/min,585r/min |
| Theory | Centrifugal pump |
| Structure | Single stage pup |
| Usage | Clean water, raw water, sea water etc. |
| Power | Electric motor or Diesel engine |
| Standard | ISO |
| Application | Plant, mine, power station, urban water supply, irrigation etc |
| Outlet diameter | 1 inch to 32 inch |
| Capacity | 25-15000m3/h |
| Head | 8.6-200m |
| Power | 22-1250kw |
| Warranty | 1year |
| Certificate | ISO9001 |
| OEM | Acceptable |
| Feature | High flow rate, high efficiency, easy maintenance |
Spare Parts
