12 Inch Water Pump 10000 M3/h Pump

FOB Price

US$ 755 - 2,996 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Product Description

General Description:

S type pump is a single-stage double suction horizontal split centrifugal water pump. It is used to

transport pure water and the liquid which physical and chemical nature is similar with water the maximum tempreture isn't more than 80 ℃.

Features:

1.Compact structure,beautiful outline,stable operation,low noise;

2.Both inlet and outlet of this pump are placed under the axial line,so it is unnecessary to remove the inlet and outlet pipeline and motor

3.The shaft seal of water pump has fine mechanical seal and soft stuffing seal,which can be selected according to different condition by user

4.The impeller is static-balance calibrated,fixed on the shaft with round nut,and its axial position an be adjustedvia the round nut

5.The pump is direct drived by motor via resilient coupling,it can be drived by internal combustion engine if it is necessary.

split case water pump construction:

Item	12 inch water pump 10000 m3/h pump
Model	MS
Material	Cast iron SS 304,SS 316L, etc
Color	Decided by user
Mode	Horizontal
Impeller	Double suction impeller
Drive	Direct coupling
Seal	Packing seal or mechanical seal
Speed	2950r/m, 1450r/min, 970r/min,730r/min,585r/min
Usage	Clean water, raw water, sea water etc.
Power	Electric motor or Diesel engine
Application	Plant, mine, power station, urban water supply, irrigation etc
Outlet diameter	1 inch to 32 inch
Capacity	25-15000m3/h
Head	8.6-200m
Power	22-1250kw

500S-13 water pump with motor 110kw performance curve:

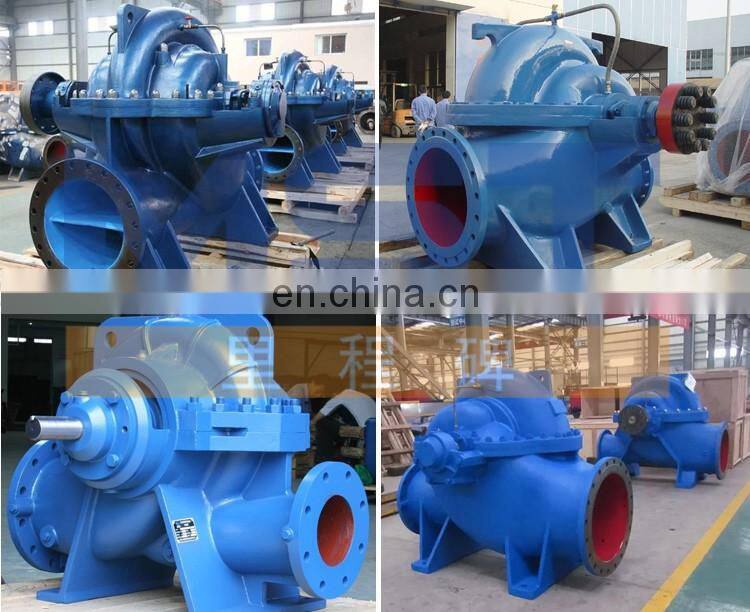

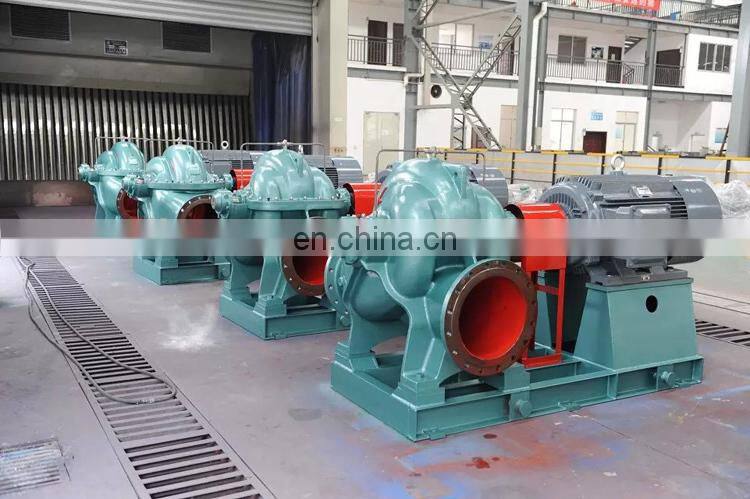

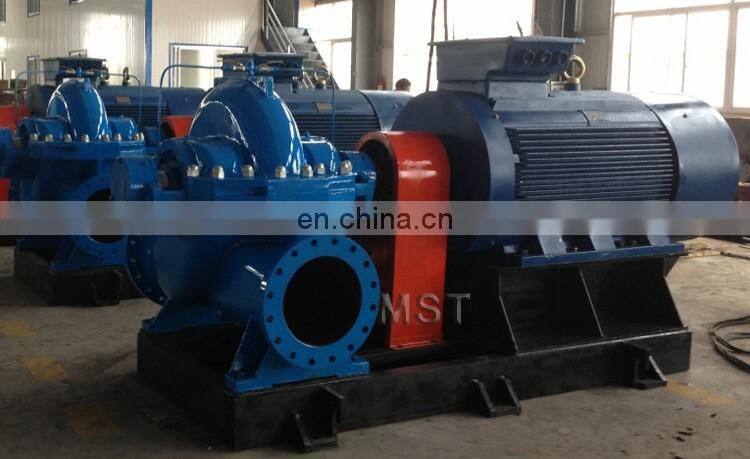

Detailed Images

Horizontal centrifugal electric water pump suitable for water supply and drainage in

factories,mines and cities,power station,drainage and irrigation of farming,and kinds of hydraulic projects.
