Cast Iron Electric Mechanical Seal Water Pump
- TIANJIN QINGDAO SHANGHAI NINGBO GUANGZHOU
- T/T Credit Card
You May Like
Product Details
| Brand Name | MILESTONE | Place of Origin | Hebei, China | |
| Model Number | MST-D | |||
| Power | Electric | |||
| Usage | Water | Theory | Centrifugal Pump | |
| Standard or Nonstandard | Standard | Structure | Multistage Pump | |
| Pressure | High Pressure |
Product Description
Multistage water pump 500m head
D/DA Multistage Pump is an energy-saving product series Multistage water pump 50m suction head pump performance parameters and technical data are higher. Multistage water pump 50m suction head is suitable for the circulation and pressurization of cold and warm clear water in high-pressure operation system, water supply under parallel operation of several pumps in civil construction, water supply for fire control, boiler, cooling water system and the delivery of various liquid.

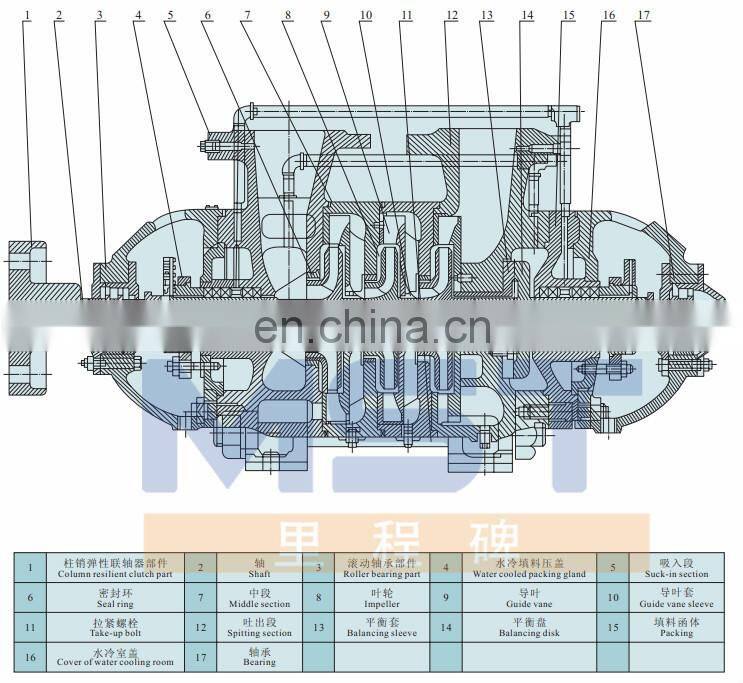

Pump Structure:

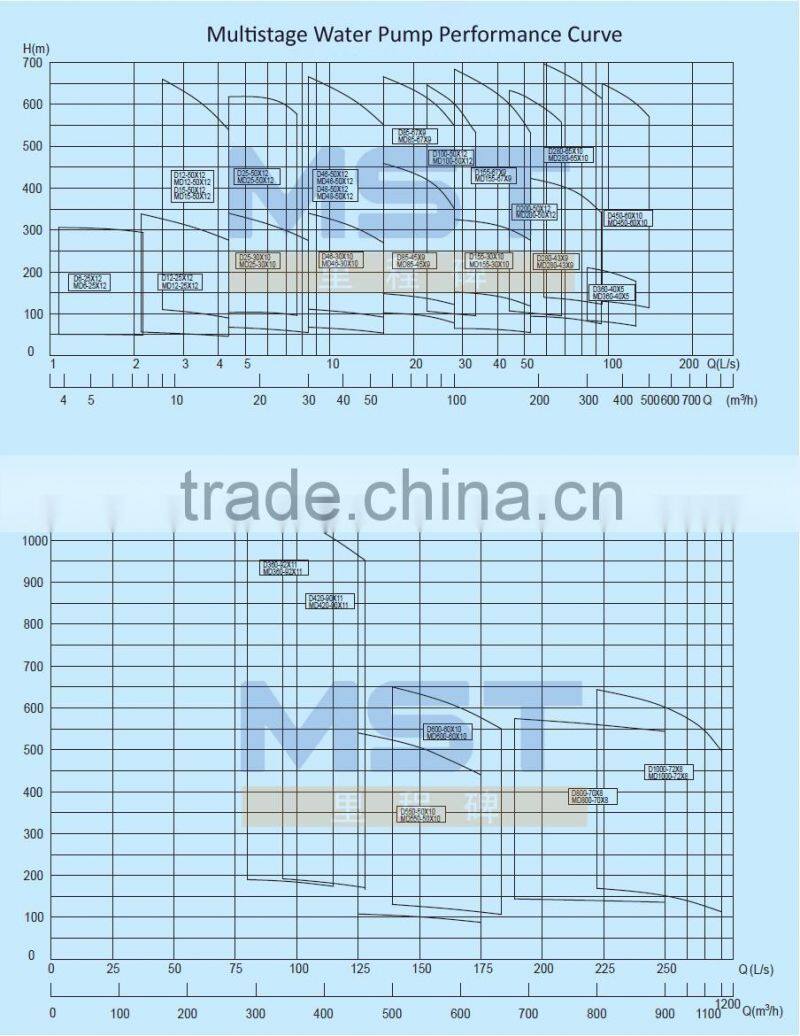

Pump Performance:

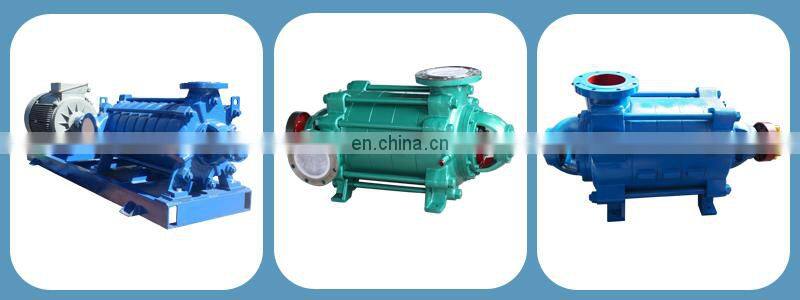

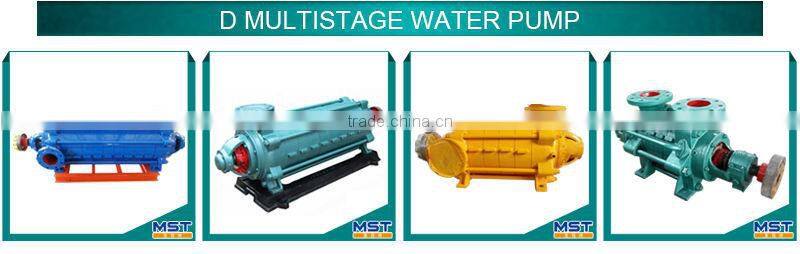

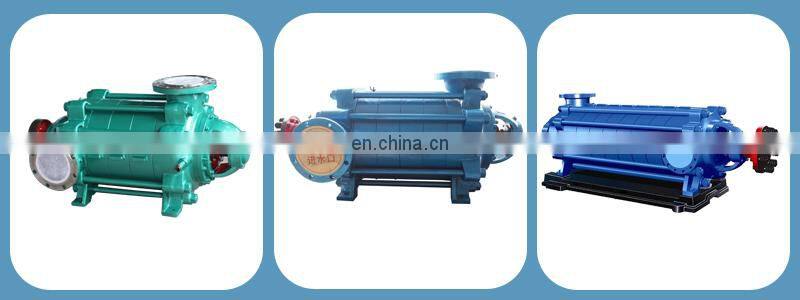

Pump Show:
Pump Application:
- long distance water transferring
- boiling water feeding and transferring
- water system boosting
- agricultural irrigation
- mining water supply
- fire fighting
- offshore projects
Technical Data:
| Model | Capacity (m³/h) | Head (m) | Speed (rpm) | Motor Power (kw) | Impeller Dia (mm) |
| 6-25*4 | 6.3 | 100 | 2950 | 7.5 | 139 |
| 6-25*5 | 6.3 | 125 | 2950 | 7.5 | 139 |
| 6-50*4 | 6.3 | 200 | 2950 | 18.5 | 198 |
| 12-25*4 | 12.5 | 100 | 2950 | 11 | 146 |
| 6-80*3 | 6 | 240 | 2950 | 18.5 | 235 |
| 12-80*4 | 12.5 | 320 | 2950 | 45 | 235 |
| 25-30*3 | 25 | 90 | 2950 | 15 | 160 |
| 46-30*5 | 46 | 150 | 2950 | 37 | 162 |
| 85-67*4 | 85 | 268 | 2950 | 110 | 235 |
| 120-50*5 | 120 | 250 | 2950 | 132 | 213 |
| 150-30*8 | 150 | 240 | 2950 | 160 | 172 |
| 150-100*6 | 150 | 600 | 2950 | 400 | 289 |
| 200-100*6 | 200 | 600 | 2950 | 560 | 290 |
| 280-65*6 | 280 | 390 | 1480 | 500 | 430 |
| 300-45*4 | 300 | 180 | 1480 | 200 | 360 |
| 150D30*6 | 155 | 180 | 1480 | 132 | 305 |
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
Why always me, because we do pump right!!!
