Home > Products > Water Pump > Cast Iron Electric 1kw Hydraulic Pump

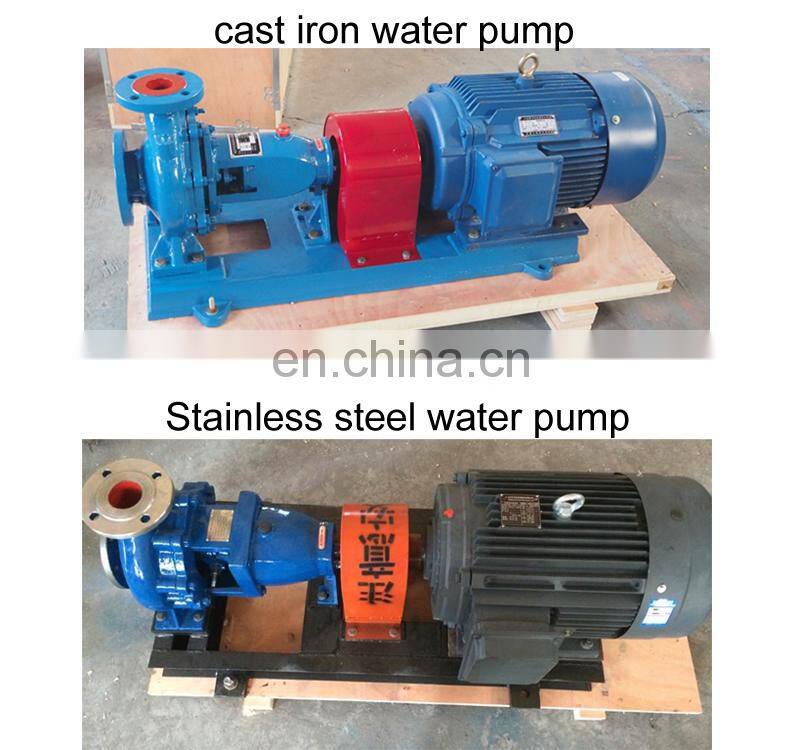

Cast Iron Electric 1kw Hydraulic Pump
- TIANJIN QINGDAO SHANGHAI XIAMEN NINGBO GUANGZHOU
- T/T Credit Card
You May Like
Product Details
| Brand Name | Milestone | Place of Origin | Hebei, China | |
| Model Number | IS | |||
| Power | Electric | |||
| Usage | Water | Theory | Centrifugal Pump | |
| Standard or Nonstandard | Standard | Structure | Single-stage Pump | |
| Pressure | High Pressure |
Product Description
Light weight electric water pump 10hp
IS&ISR Light weight electric water pump 10hp handle clean water and the liquid of which physical and chemical properties are similar to clean water. Light weight electric water pump 10hp is used for industrial and city clean water supply and drainage, irrigation, fire protection, long distance water supply, metallurgy, chemical, textile, china processing, pigment, paper making, etc.(IS:temperature not exceeding 80 degree celcius ,ISR: temperature lessnot exceeding than 150degree celcius)
Features
1.Choice of piston ring style labyrinth
2.Fully interchangeeable with the common brand reducing inventory hold requirements
3.A full range of mechanical seal adaptations available upon request
4.Oil lubrications or packed grease
5.Painted to customer specifications upon request
kinds specification
1.Mining
2.Mineral sands
3.Power utilities
4.Oil and gas operations
5.water and sewage utilities
6.Construction and agriculture
Technical Parameter
1. Caliber: DN50-DN200mm
2. Capacity: 3.5-460m3/hr
3. Head: 4-132m
4. Rotate speed: 2900 r/min; 1450 r/min
5. Work temperature: ≤150°C
6. Viscosity: ≤150mm2/s
7. Pressure: ≤1.6Mpa
8. Motor power: 0.55-110Kw
Performance Range
Performance Data Table
| Model | Flow | Lift head | Rotation speed | Motor power | Diameter(mm) | Diameter(mm) |
| (m3/h) | (m) | (r/min) | (kw) | Suction | Outlet | |
| IS50-32-125 | 12.5 | 20 | 2900 | 2.2 | 50 | 32 |
| 6.3 | 5 | 1450 | 0.55 | 50 | 32 | |
| IS50-32-160 | 12.5 | 32 | 2900 | 3 | 50 | |
| 6.3 | 8 | 1450 | 0.55 | 50 | 32 | |
| IS50-32-200 | 12.5 | 50 | 2900 | 5.5 | 50 | 32 |
| 6.3 | 12.5 | 1450 | 0.75 | 50 | 32 | |
| IS50-32-250 | 12.5 | 80 | 2900 | 11 | 50 | 32 |
| 6.3 | 20 | 1450 | 1.5 | 50,/td> | 32 | |
| IS65-50-125 | 25 | 20 | 2900 | 3 | 65 | 50 |
| 12.5 | 5 | 1450 | 0.55 | 65 | 50 | |
| IS65-50-160 | 25 | 32 | 2900 | 5.5 | 65 | 50 |
| 12.5 | 8 | 1450 | 0.75 | 65 | 50 | |
| IS65-40-200 | 25 | 50 | 2900 | 7.5 | 65 | 40 |
| 12.5 | 12.5 | 1450 | 1.1 | 65 | 40 | |
| IS65-40-250 | 25 | 80 | 2900 | 15 | 65 | 40 |
| 12.5 | 20 | 1450 | 2.2 | 65 | 40 | |
| IS65-40-315 | 25 | 125 | 2900 | 30 | 65 | 40 |
| 12.5 | 32 | 1450 | 4 | 65 | 40 | |
| IS80-65-125 | 50 | 20 | 2900 | 5.5$3C/td> | 80 | 65 |
| 25 | 5 | 1450 | 0.75 | 65 | ||
| IS80-65-160 | 50 | 32 | 2900 | 7.5 | 80 | 65 |
| 25 | 8 | 1450 | 1.5 | 80 | 65 | |
| IS80-50-200 | 50 | 50 | 2900 | 15 | 80 | 50 |
| 25 | 12.5 | 1450 | 2.2 | 80 | 50 | |
| IS80-50-250 | 50 | 80 | 2900 | 22 | 80 | 50 |
| 25 | 20 | 1450 | 3 | 80 | 50 | |
| IS80-50-315 | 50 | 125 | 2900 | 37 | 80 | 50 |
| 25 | 32 | 1450 | 5.5 | 80 | 50 | |
| IS100-80-125 | 100 | 20 | 2900 | 11 | 100 | 80 |
| 50 | 5 | 1450 | 1.5 | 100 | 80 | |
| IS100-80-160 | 100 | 32 | 2900 | 15 | 100 | 80 |
| 50 | 8 | 1450 | 2.2 | 100 | 80 | |
| IS100-65-200 | 100 | 50 | 2900 | 22 | 100 | 65 |
| 50 | 12.5 | 1450 | 4 | 100 | 65 | |
| IS100-65-250 | 100 | 80 | 2900 | 37 | 100 | 65 |
| 50 | 20 | 1450 | 5.5 | 100 | 65 | |
| IS100-65-315 | 100 | 125 | 2900 | 75 | 100 | 65 |
| 50 | 32 | 1450 | 11 | 100 | 65 | |
| IS125-100-200 | 200 | 50 | 45 | 125 | 100 | |
| 100 | 12.5 | 1450 | 7.5 | 125 | 100 | |
| IS125-100-250 | 200 | 80 | 2900 | 75 | 125 | 100 |
| 100 | 20 | 1450 | 10 | 100 | ||
| IS125-100-315 | 200 | 125 | 2900 | 110 | 125 | 100 |
| 100 | 32 | 1450 | 15 | 125 | 100 | |
| IS125-100-400 | 100 | 50 | 1450 | 30 | 125 | 100 |
| IS150-125-250 | 200 | 20 | 1450 | 18.5 | 150 | 125 |
| IS150-125-315 | 200 | 32 | 1450 | 30 | 150 | 125 |
| IS150-125-400 | 200 | 50 | 1450 | 45 | 150 | 125 |
| IS200-150-250 | 400 | 20 | 1450 | 37 | 200 | 150 |
| IS200-150-315 | 400 | 32 | 1450 | 55 | 200 | 150 |
| IS200-150-400 | 400 | 50 | 1450 | 90 | 200 | 150 |
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
SCENES OF MINING EXHIBITION
