Product Details
| Brand Name | JARCH | Place of Origin | China | |
| Model Number | JSR-PS025-6P10-SP |
Product Description

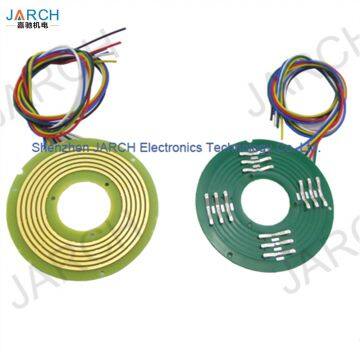

Thinest 5mm pancake slip rings , panshi flat electrical slip rings
Feature:
Ultra-thin,5mm thickness
6 circuits
12 colors lead wires available
ID:25mm
Rotor and stator lead exits
Description:
Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;
JSR-PS025-6P10
Hole size: 25mm , Thickness:5mm
2,3,4,6,8,12,18,24 circuit version
In certain applications where a cylindrical shape slip ring will simply not fit into the available space or a very low profile is needed, a pancake or platter style slip ring can be used. JSR-PS025-6P10, with 5mm thickness and hol size 25mm, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates
The JSR-PS025-6P10, with 2 ~ 24 circiuts and compact 5mm body thickness, which we call our disk slip ring .
Benefits:
Longer lead lengths available
Power and signal combinations
Rotor and stator lead exits
gold alloy brush,Gold plated rings
IP65 are optional
More thickness available
Dimensions:
Model Explanation:
| Operating Speed | 0-300 rpm |
| Number of Circuits | 2 ~ 24 |
| Voltage | 240 VAC/DC |
| Current Rating | 10A per circuit |
| Temperature Range | -20°Cto +80°C |
| Contact Material | Gold to Gold |
| Lead Size | 22# silver plated copper |
| Lead Length | Standard 250 mm(9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 5mΩMin |
Installation Instructions:
Flange mounted:
CERTIFICATES:
PACKAGING& SHIPPING
Q1: How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
Q2: What technical data should be provided for our customized slip ring model?
A: If you want to costomize the special slip ring model, you need provide details as below:
a.operatring speed(RPM)
b.the type of installation
c.outline size
d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings
f.the signal type and related
parameters(very important)
g.operating temperature h.IP(sealing requirements)
If you have any questions, pls contact us without any hesitation.
