Product Details
| Brand Name | TOP Y MACHINERY | Place of Origin | Guangdong, China | |
| Certification | CE Certification | |||
| Dimension(L*W*H) | L)1550X(W)1160X(H)1480mm | Voltage | 220V/380V/110V | |
| Function | Filling, Laminating, Sealing | Condition | New | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Packaging Type | Film, Foil, Pouch, Stand-up Pouch |
Plywood cases, easy dismantle. The machines are wrapped with shrink film to prevent stainless steel machine frame getting rust during sea freight.
Product Description

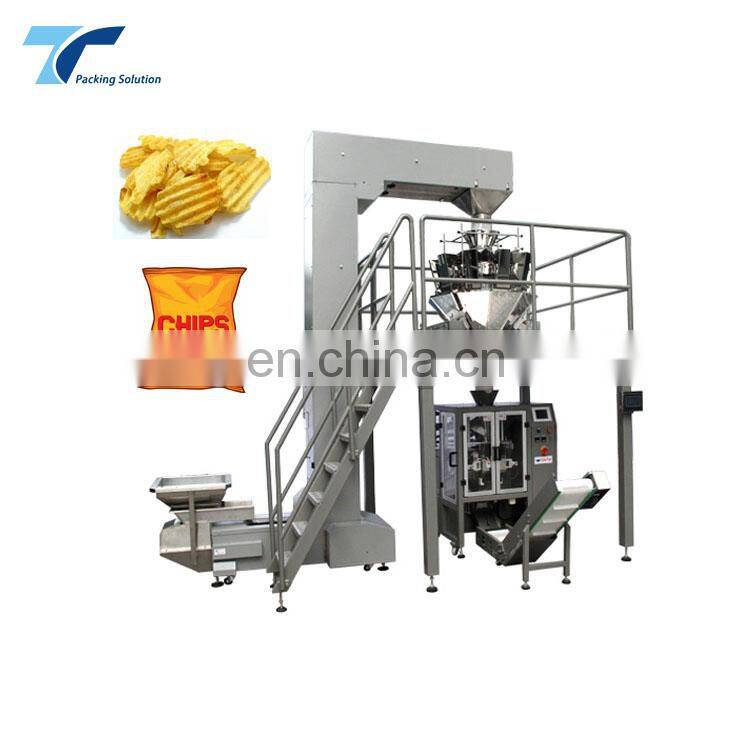

New design corn flakes packaging machinery line for chips
High Speed Vertical Form Fill Seal Packing Machine
This machine can suit for granule, liquid and powder products
Application:
VPX-series is an intermittent operating, high-speed vertical form-fill-seal machine capable of filling a maximum of 100 bags per minute.
PLC controller with touch screen interface.
Servo-driven end seal jaws.
Servo-driven film transport.
Hot printer and film feeding system synchronous.
Quickly changing one-piece bag former.
Eye mark sensor for film tracking.
Stainless steel frame.
Specifications:
Model  | TOPY-VP420X  | TOPY-VP500X  | TOPY-VP620X  |
Bag Size  | (L)50-230mm (W)60-200mm*  | (L)50-300mm* (W)80-240mm  | (L) 50-380mm* (W)110-300mm  |
Bag Speed  | Max.100bags/min  | Max.100bags/min  | Max.100bags/min  |
Max. film width  | 420mm  | 500mm  | 620mm  |
Air consumption  | 0.6Mps 0.2m3/min  | 0.6Mps 0.2m3/min  | 0.6Mps 0.2m3/min  |
Power supply  | 3.5kw, 220V 50/60HZ  | 4kw, 220V 50/60HZ  | 4.5kw, 220V 50/60HZ  |
Packed Dimensions  | (L)1300*(W)960*(H)1150mm  | (L)1550*(W)1160*(H)1480mm  | (L)1600*(W)1260*(H)1680mm  |
Details:
Bag Type
Pillow bag, Gusset bag, Chain bags, Hole Punch

Multi-Head Weigher or linear weigher (single head, double head, four head linear weigher)
Charcoal Packing Machine
Cheese Packing Machine
Q1, Do you need the packing machines for premade bags or bags from roll of film?
For roll film we advise VFFS packing machines VP420, VP500, VP620, VP800, VPL1000 and VPL1200. For
premade bags we advise doypack machine working on bags with or without ziplock
Q2, What products do you pack, solid, granule, flake, powder or liquid?
For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler, for solid,
flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q3, What are the bag sizes and target weight in each pack?
For VFFS packing machine the minimum film width we work on is 120mm, the maximum film width we work
on is 1200mm.
For doypack machine the bag width working on is minimum 70mm and maximum bag width 4550mm.
Q4, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q5, What’s the delivery time after the order is placed?
We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines
Q6, How about the warranty?
The warranty is 24 months and we provide lifelong maintenance.
Q7, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation. Also
our engineers are available to clients’ factory and technical training.
