Home > Products > Food packing machine > High Quality Dry Vegetables Food Packing Machinery
High Quality Dry Vegetables Food Packing Machinery
- Shunde Port
- T/T Credit Card
You May Like
-
Automatic Granulated Potato Chips Snack Vertical Packing Machine
-
Foshan Manufacture Automatic Pickle Kerala Food Plastic Bag Milk Fertilizer Mushroom Bagging Packing Machine
-
Vertical Full Automatic Packing Machine Chips Candy Biscuit Packaging Machine
-
Foshan Packaging Machinery Food Plastic Bag Packing Machine
-
CE Approved Cheap Price Automatic 1kg-10kg Vacuum Food Rice Packaging Machine
-
Frozen Food Packaging System With Mini Doypack Machine
Product Details
| Brand Name | TOP Y MACHINERY | Place of Origin | Guangdong, China | |
| Certification | CE Certification | After-sales Service Provided | Engineers available to service machinery overseas | |
| Dimension(L*W*H) | L)1600X(W)1260X(H)1680mm | Voltage | 220V/380V/110V | |
| Function | Filling, Sealing, Wrapping, Filling | Condition | New | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Packaging Type | Bags, Film, Foil, Pouch, Stand-up Pouch |
Plywood cases, easy dismantle. The machines are wrapped with shrink film to prevent stainless steel machine frame getting rust during sea freight.
Product Description

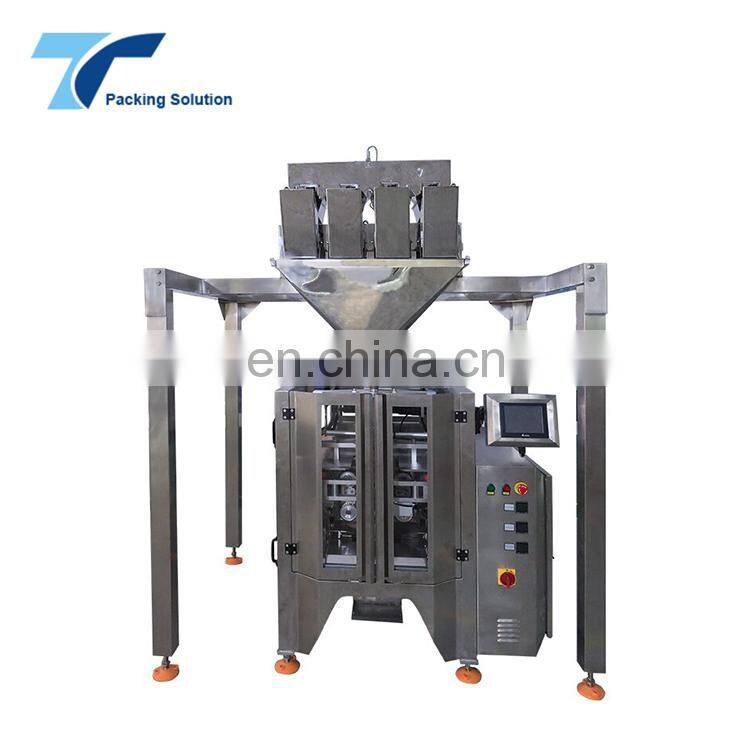

High Quality Dry Vegetable Food Packing Machinery
Packing Machine Legumes
1.TOPY VP420/500/620/800 Middle Speed Vertical packaging Machine
Application:
Suitable to pack coffee bean, seed, sugar, salt, spice, potato chips, puffed food, jelly, pet food, snacks, gummy, etc.
Specifications
Model | TOPY-VP500 | TOPY-VP620 | TOPY-VP800 |
Bag Size | (L)100-300mm (W)80-240mm* | (L)100-380mm* (W)100-300mm | (L) 50-380mm* (W)110-400mm |
Bag Speed | 15- 60bags/min |
15- 60bags/min |
10-30bags/min |
Film width | 180-500mm | 220-620mm | 340-800mm |
Air consumption | 0.6Mps 0.36m3/min | 0.6Mps 0.4m3/min | 0.6Mps 0.7m3/min |
Power supply | 3.0kw, 220V 50/60HZ | 4.0kw, 220V 50/60HZ | 4.5kw, 220V 50/60HZ |
Packed Dimensions | (L)1550*(W)1160*(H)1480mm | (L)1600*(W)1260*(H)1680mm | (L)1600*(W)1500*(H)2050mm |
Details of Machinery:
Bag Type
Packing Machine Legumes

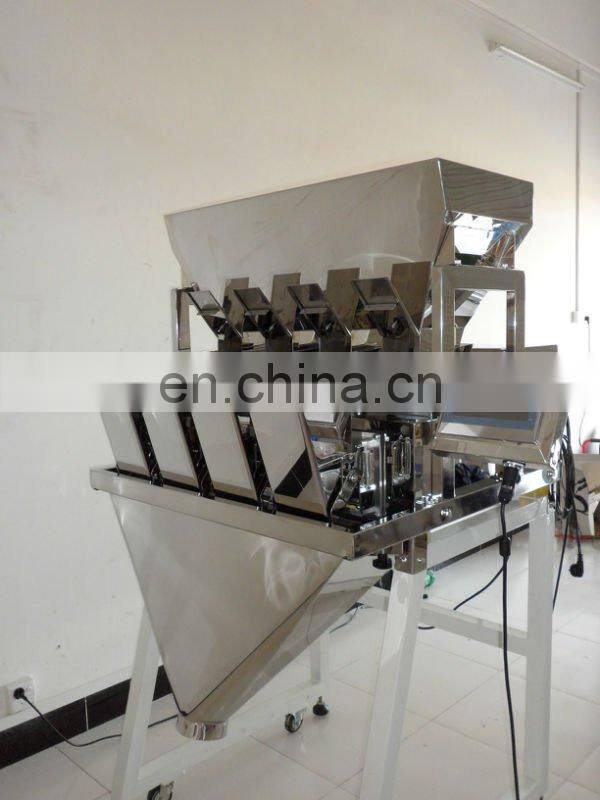

2, 4 HEAD LINEAR WEIGHER
Application:
It's suitable for weighing slice, roll or regular shape products such as sugar, salt, seed, rice, sesame, glutamate, milk powder,
coffee powder and seasoning powder, etc.
Specification:
Model | TOPY-VM4N25 |
Range of single bag weight | 10-2000g |
AV SNGL bag ERR / Weighing Accuracy | 0.2-2g |
Max weighing speed | 10-60 bags/min |
hopper Capacity | 3L |
Control system | PLC |
Preset Programs | 10 |
Max. Mix-Products | 4 |
Operation Panel | 7 inch touch screen |
Voltage/Power/Frequency/Rating Current | AC220V ±10% 50Hz(60Hz) |
Packing Dimension (mm) | 1010(L)*960(W)*1207(H) |
Packing Weight | 250KG |
Packing Machine Legumes
Related Product
Packing Machine Legumes
Packing Machine Legumes
Packing Machine Legumes
Q1, Do you need the packing machines for premade bags or bags from roll of film?
For roll film we advise VFFS packing machines VP420, VP500, VP620, VP800, VPL1000 and VPL1200.
For premade bags we advise doypack machine working on bags with or without ziplock
Q2, What products do you pack, solid, granule, flake, powder or liquid?
For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler, for solid,
flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q3, What are the bag sizes and target weight in each pack?
For VFFS packing machine the minimum film width we work on is 120mm, the maximum film width we work
on is 1200mm.
For doypack machine the bag width working on is minimum 70mm and maximum bag width 4550mm.
Q4, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q5, What’s the delivery time after the order is placed?
We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines
Q6, How about the warranty?
The warranty is 24 months and we provide lifelong maintenance.
Q7, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation.
Also our engineers are available to clients’ factory and technical training.
