CE Approved Coffee Menlon Seeds Mini Doypack Zipper Packing Machine
- 5 Piece / Pieces per Month
- Shunde Port
- T/T Credit Card
You May Like
-
PLC Mitsubishi Automatic Packing Machine for Protein Powders Tea Dust
-
PLC Mitsubishi Grain Product Premade Resealable Pouch Duplex Doypack Machine
-
Automatic Doypack Kraft Paper Bag Packing Machine
-
Salad Sauce Sachet Packaging Machine Retort Pouch Filling Machine
-
customized automatic pouch packing machine
-
Automatic filling doy pouch packing machine for tea bag
Product Details
| Brand Name | TOP Y MACHINERY | Place of Origin | Guangdong, China | |
| Certification | CE Certification | After-sales Service Provided | Engineers available to service machinery overseas | |
| Dimension(L*W*H) | L)1870X(W)650X(H)1650mm | Voltage | 110V/220V/240V/380V/415V/440V, 50HZ or 60HZ | |
| Function | Filling, Sealing, Wrapping, Filling, Sealing | Condition | New | |
| Automatic Grade | Automatic | Driven Type | Pneumatic | |
| Packaging Type | Bags, Pouch, Stand-up Pouch |

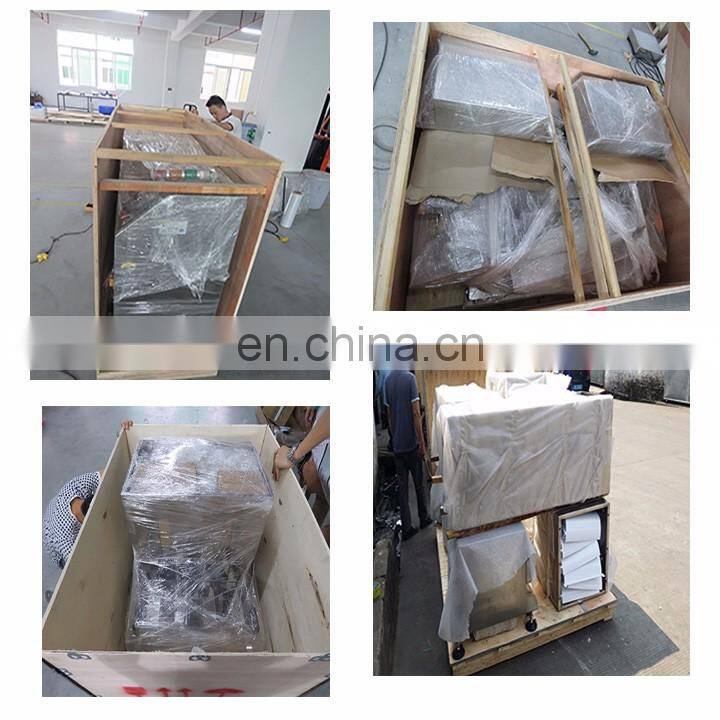

Plywood cases, easy dismantle. The machines are wrapped with shrink film to prevent stainless steel machine frame getting rust during sea freight.
Product Description

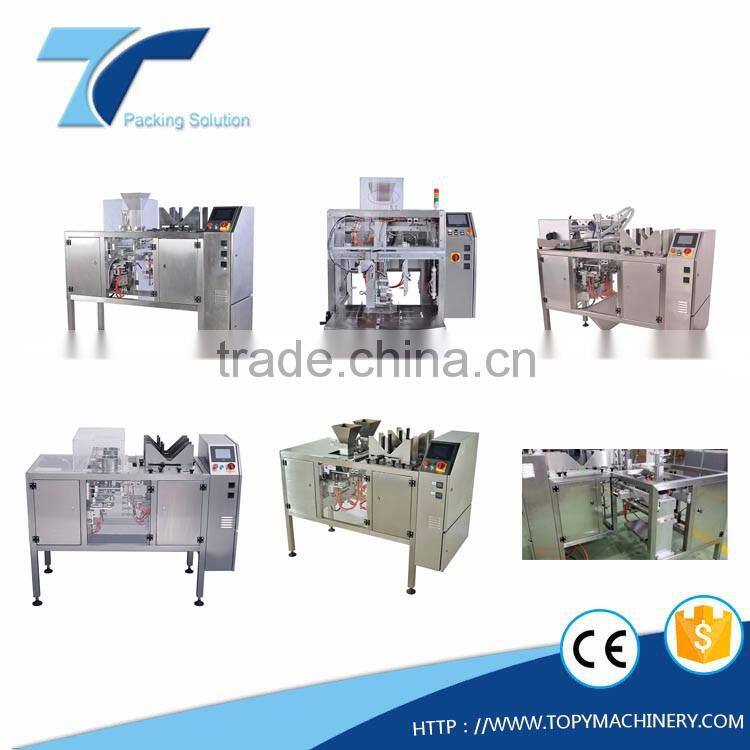

CE Approved Coffee Menlon Seeds Mini Doypack Zipper Packing Machine
Pouches are individually removed from the cartridge with a unique combination of vacuum and pneumatic actuators. They are

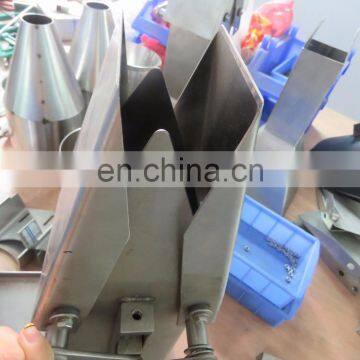

TRANSITION CHUTE
doubling as a timing bucket. product enters the transition chute while the bag is being opened below. Upon pouch detection the
FILLING

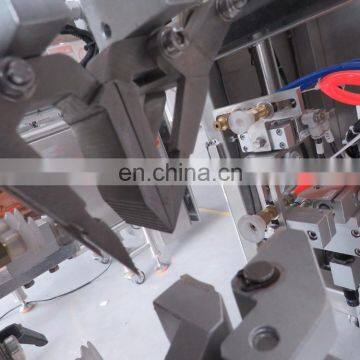

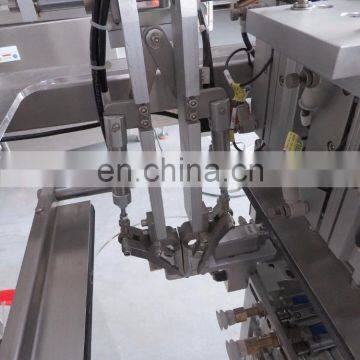

During filling, pouches are held in place with our “posi-hold” gripper system. This allows for heavy weights and shock loads
without disturbing bag Position
SEALING
Digitally controlled ribbed or flat constant heat seal bars give a integral attractive seal. Pouches are sealed ''in place" eliminating

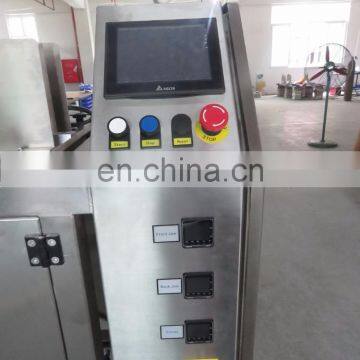

MECHINE CONTROLS
System controls are fully solid state. utilizing a commercial Programmable Logic Controller [PLC] and pneumatics. Indicator lights

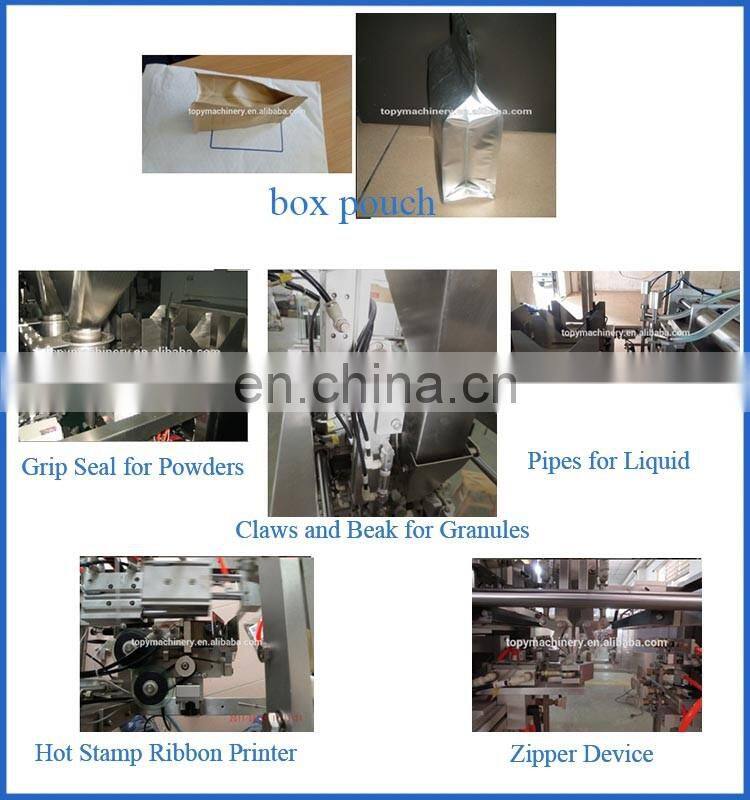

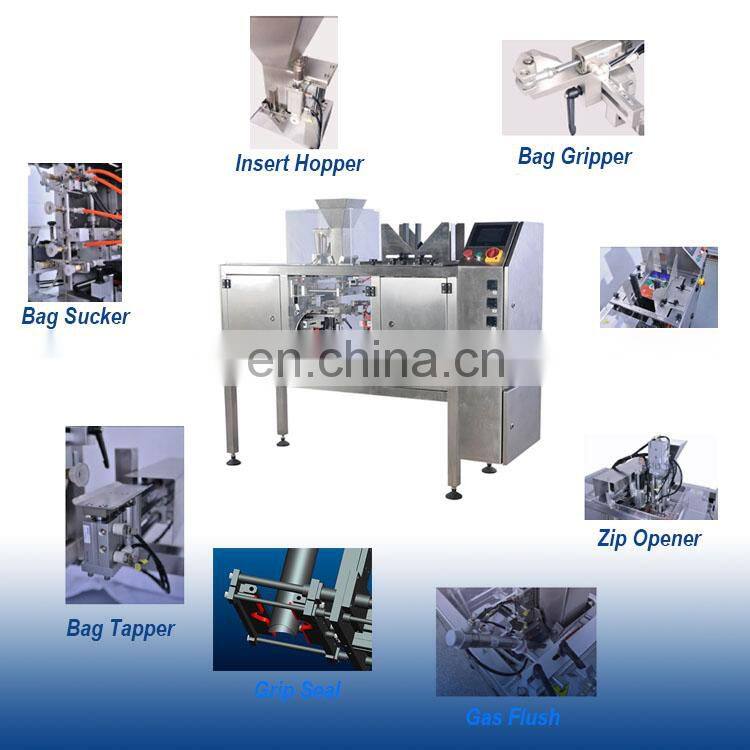

Optional Features
• Pouch zipper opening function
• Gusset pouch opening function
• Gas flush function to keep the products fresh and avoid them broken
• Air/Nitrogen Inflating, Air deflating function
• Vacuum function to keep the products fresh and reduce the package space
• Bag tapper vibrating compacting function help products drop to the bag bottom part and enhance packaging density
• Grip seal to avoid powders coming out during filling
• De-dusting device to enable clean packaging environment and ensure quality of sealing
• Different types of code printing function, such as hot stamp ribbon printer, inkjet printer, thermal transfer printer and so on
SPECIFICATIONS
Model No. | TOPY-MDP1 | TOPY-MDP2 |
Bag Width | 85-280mm | 120-300mm |
Bag Length | 130-300mm | 130-400mm |
Bag Type | Stand-up bag, pillow bag | Stand-up bag, pillow bag |
Power Supply | 220V, 50HZ | 220V, 50HZ |
Air Consumption | 7.0 CFM@80 PSI | 7.0 CFM@80 PSI |
Pneumatic Parts | PIAB Vacuum Generator,Pneumatics component Airtac from Taiwan | PIAB Vacuum Generator,Pneumatics component Airtac from Taiwan |
Bag Type

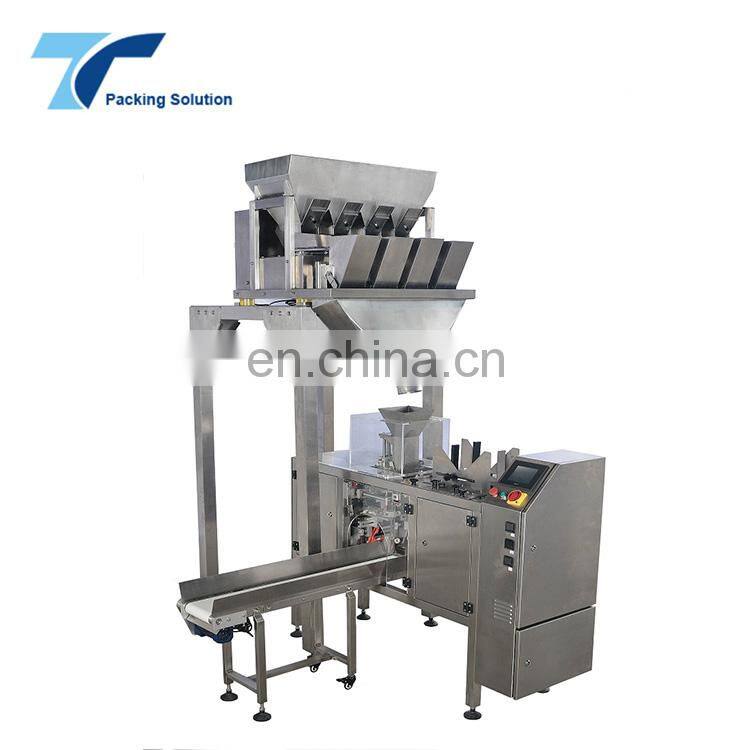

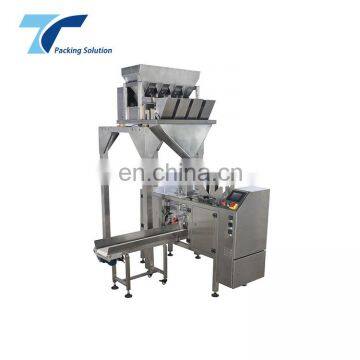

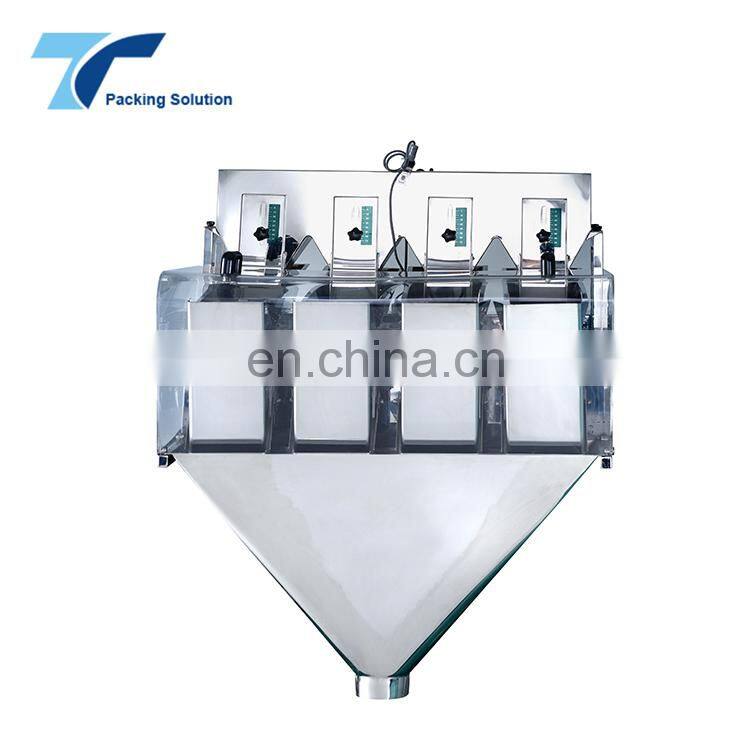

4 Head Linear Weigher
Application:
It's suitable for weighing slice, roll or regular shape products such as sugar, salt, seed, rice, sesame, glutamate,
milk powder, coffee powder and seasoning powder, etc.
Main Features:
*High precision digital load cell (HBM load cell is optional)
*Color touch screen (Mouse, SD card and memory card are compatible)
*Multilanguage choice (Translation is needed for some specific language)
*Different authority management
Special Features:
*Weighing mix different products at one discharge
*Parameters can be freely adjusted during running condition
*New generation design, each actuator,boards can exchange with each other.
*Self-diagnose function on the electronic boards
Specification:
Model | TOPY-VM4N25 |
Range of single bag weight | 10-2000g |
AV SNGL bag ERR / Weighing Accuracy | 0.2-2g |
Max weighing speed | 10-60 bags/min |
hopper Capacity | 3L |
Control system | PLC |
Preset Programs | 10 |
Max. Mix-Products | 4 |
Operation Panel | 7 inch touch screen |
Voltage/Power/Frequency/Rating Current | AC220V ±10% 50Hz(60Hz) |
Packing Dimension (mm) | 1010(L)*960(W)*1207(H) |
Packing Weight | 250KG |
MDP+Auger Filler+ Spoon Dispensor Running for Powders | |
Powder Mini Doypack Machine +Auger Filler+Dust Collector for Pre made Bags | |

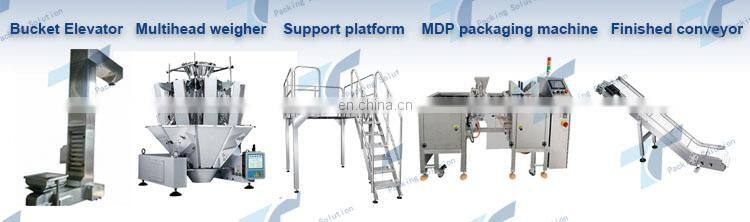

MDP+Linear Weigher+Single Bucket Elevator | |
Granule Packaging Machinery with Doypack Machines and Oxygen Absorb Sachet | |
Twin Pouch Packing Machine Running | |
MDP+Vacuum Function for Rice and Water |
Related Products
Q1, Do you need the packing machines for premade bags or bags from roll of film?
For roll film we advise VFFS packing machines VP420, VP500, VP620, VP800, VPL1000 and VPL1200.
For premade bags we advise doypack machine working on bags with or without ziplock
Q2, What products do you pack, solid, granule, flake, powder or liquid?
For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler, for
solid, flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q3, What are the bag sizes and target weight in each pack?
For VFFS packing machine the minimum film width we work on is 120mm, the maximum film width we work
on is 1200mm.
For doypack machine the bag width working on is minimum 70mm and maximum bag width 4550mm.
Q4, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q5, What’s the delivery time after the order is placed?
We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines
Q6, How about the warranty?
The warranty is one year and we provide lifelong maintenance.
Q7, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation. Also
our engineers are available to clients’ factory and technical training.
