High Quality PLC Mitsubishi Mineral Water Pouch Packing Machine Price with Hopper
- 5 Piece / Pieces per Month
- Shunde Port
- T/T Credit Card
You May Like
-
Automatic Stand Up Pouch Packing Machine for Mac & Cheese Depositor Piston Filler
-
Low Cost Price Milk Powder Automatic Pouch Packing Machine for Coffee Powder
-
Best Selling Full Automatic Flour Powder Mini Doypack Pouch Packing Machine Price for coffee chilli cocoa masala
-
Automatic Plastic Big Bag Open Mouth Bag Filling Packing Machines for Cement
-
Discount Price Automatic Sachet Filling and Packing Machine for Spices and Henna Powder
-
Foshan Factory Hot Sale Automatic Hemp Protein Powder Premade Pouch Bag Packing Machine
Product Details
Brand Name | TOP Y MACHINERY | Place of Origin | Guangdong, China | |
Certification | CE Certification | |||
Dimension(L*W*H) | L)3770X(W)670X(H)1450mm | Voltage | 220V/380V/110V | |
Function | Filling, Sealing | Condition | New | |
Automatic Grade | Automatic | Driven Type | Pneumatic | |
Packaging Type | Bags, Pouch, Stand-up Pouch |
Plywood cases, easy dismantle. The machines are wrapped with shrink film to prevent stainless steel machine frame getting rust during sea freight.
Product Description

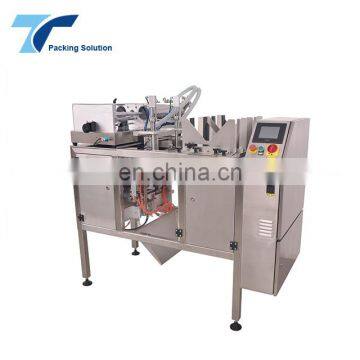

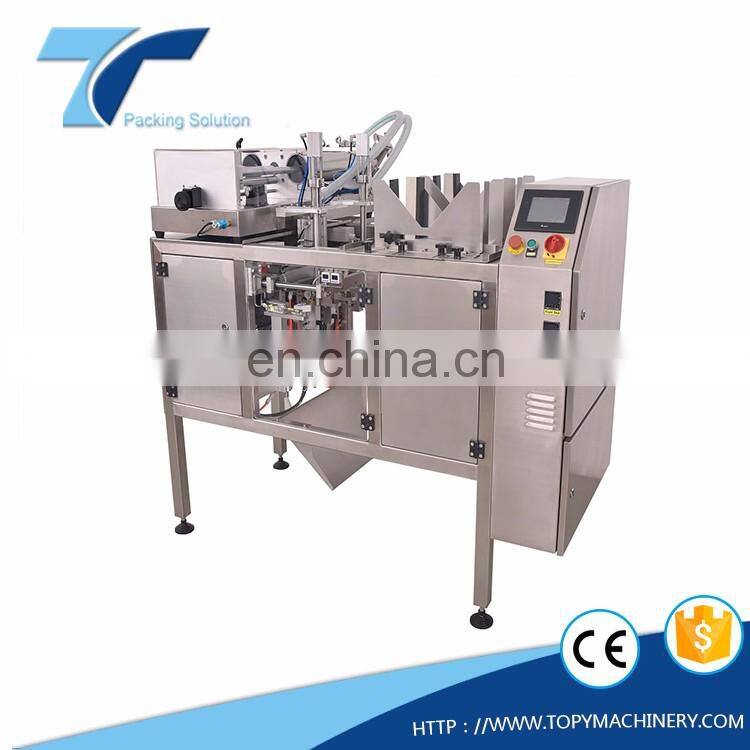

High Quality PLC Mitsubishi Mineral Water Pouch Packing Machine
Price with Hopper
Mineral Water Pouch Packing Machine Price

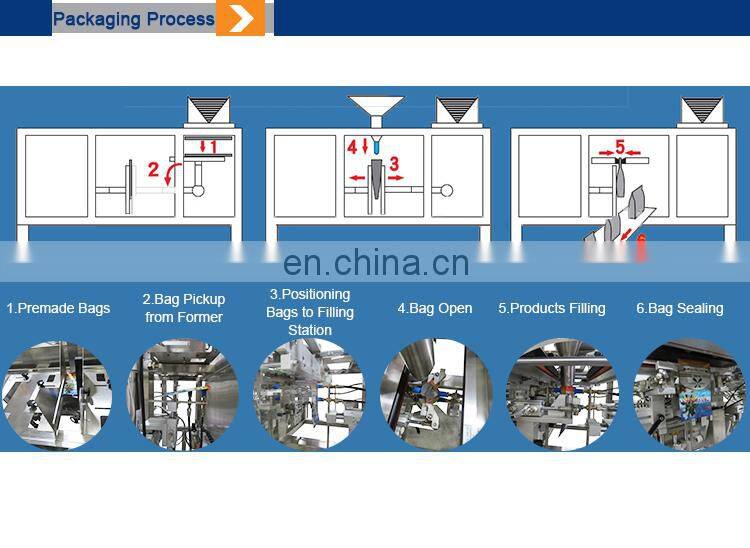

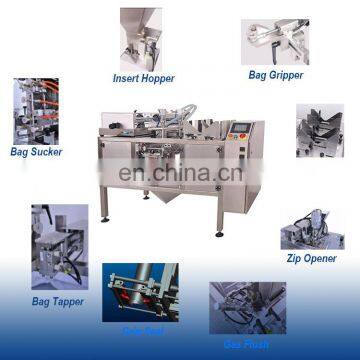

Pouches are individually removed from the cartridge with a unique combination of vacuum and pneumatic actuators. They are rotated
TRANSITION CHUTE
doubling as a timing bucket. product enters the transition chute while the bag is being opened below. Upon pouch detection the chute
FILLING

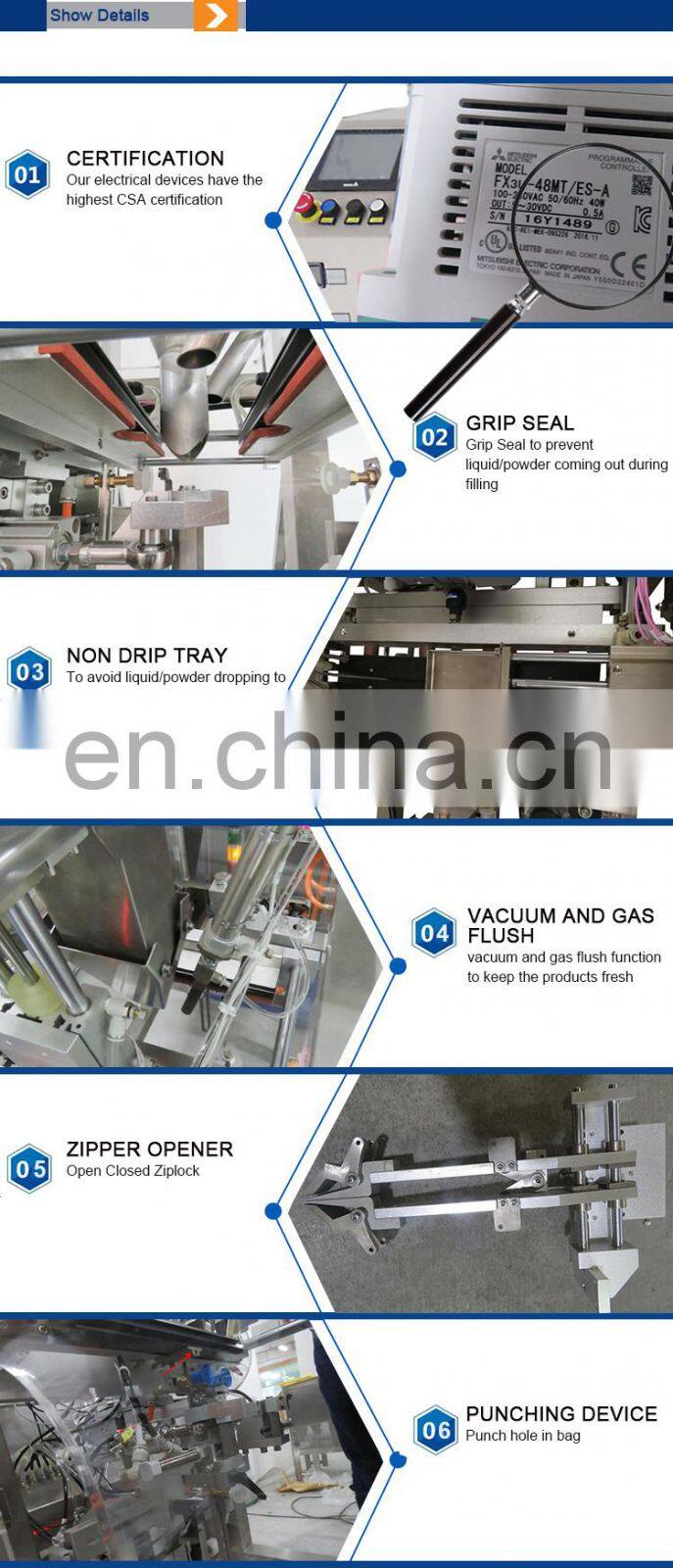

During filling, pouches are held in place with our “posi-hold” gripper system. This allows for heavy weights and shock loads
without disturbing bag Position
SEALING
Digitally controlled ribbed or flat constant heat seal bars give a integral attractive seal. Pouches are sealed ''in place" eliminating wrinkles,
MECHINE CONTROLS
System controls are fully solid state. utilizing a commercial Programmable Logic Controller [PLC] and pneumatics. Indicator lights signal
SPECIFICATIONS
Model No. | TOPY-MDP1 | TOPY-MDP2 |
Bag Width | 85-280mm | 120-300mm |
Bag Length | 130-300mm | 130-400mm |
Bag Type | Stand-up bag, pillow bag | Stand-up bag, pillow bag |
Power Supply | 220V, 50HZ | 220V, 50HZ |
Air Consumption | 7.0 CFM@80 PSI | 7.0 CFM@80 PSI |
Pneumatic Parts | PIAB Vacuum Generator,Pneumatics component Airtac from Taiwan | PIAB Vacuum Generator,Pneumatics component Airtac from Taiwan |

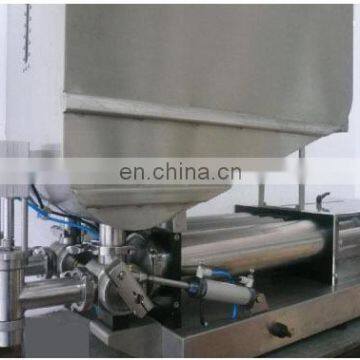

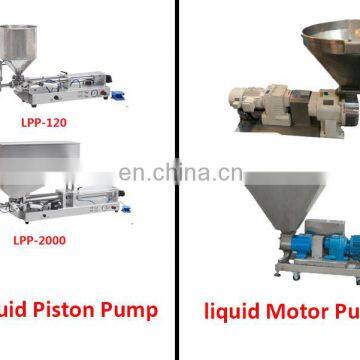

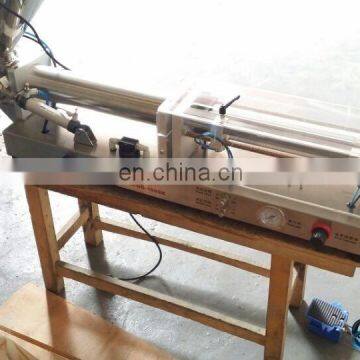

Liquid Pump
Mineral Water Pouch Packing Machine Price
Item | TOPY-60L | TOPY -120L | TOPY-250L | TOPY-500L | TOPY-1000L | TOPY-2500L | TOPY-5000L |
Filling Volume | 5-60ml | 10-120 ml | 25-250 ml | 50-500 ml | 100-1000 ml | 200-2500 ml | 500-5000 ml |
Ideal Filling Volume | 25-60ml | 50-120ml | 100-250ml | 200-500ml | 400-1000ml | 800-2500ml | 2000-5000ml |
Working Gas Pressure | 4-6kg/cm² | 4-6kg/cm² | 4-6kg/cm² | 5-8kg/cm² | 5-8kg/cm² | 5-8kg/cm² | 5-8kg/cm² |
Speed | 0-30 bottle/min | 0-30 bottle/min | 0-30 bottle/min | 0-30 bottle/min | 0-30 bottle/min | 0-25 bottle/min | 0-15 bottle/min |
Filling Precision | 1%-2% | 1%-2% | 1%-2% | 1%-2% | 1%-2% | 1%-2% | 1%-2% |
Net Weight | 16kg | 18kg | 23kg | 32kg | 39kg | 47kg | 72kg |
Gross Weight | 19kg | 20.5kg |
| 35kg | 43kg |
|
|
Host Size | 886*258*565 | 960*258*565 | 998*258*575 | 1200*295*680 | 1288*354*724 | 1590*320*740 | 1405*332*793 |
Mineral Water Pouch Packing Machine Price
Q1, Do you need the packing machines for premade bags or bags from roll of film?
For roll film we advise VFFS packing machines VP420, VP500, VP620, VP800, VPL1000 and VPL1200.
For premade bags we advise doypack machine working on bags with or without ziplock
Q2, What products do you pack, solid, granule, flake, powder or liquid?

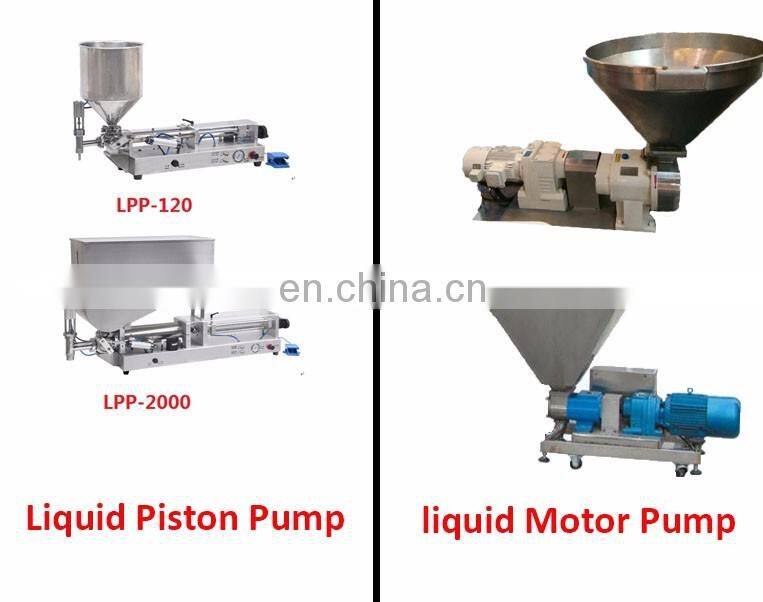

For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler, for
solid, flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q3, What are the bag sizes and target weight in each pack?
For VFFS packing machine the minimum film width we work on is 120mm, the maximum film width we
work on is 1200mm.
For doypack machine the bag width working on is minimum 70mm and maximum bag width 4550mm.
Q4, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q5, What’s the delivery time after the order is placed?
We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines
Q6, How about the warranty?
The warranty is 24 months and we provide lifelong maintenance.
Q7, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation.
Also our engineers are available to clients’ factory and technical training.
