Home > Products > jinan diesel engine parts;chidong > 2012A. 26.00A Turbocharger Assembly G12V190pzl-3 Jinan Brand Diesel Engine

2012A. 26.00A Turbocharger Assembly G12V190pzl-3 Jinan Brand Diesel Engine

FOB Price

US$ 10000 - 150000 / Unit

1 Unit(Min. Order)

Port qingdao/guangdong
Payment TermsT/T L/C
Delivery Detail45 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SHENGDONG	Place of Origin	China
Model Number	12V190	Certification	CE,ISO9001
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	Jinan
Weight	1111KG	Dimension(LWH)	1111
Condition	New	Fuel	Natural Gas
Start	Electric Start	Cold Style	Water-Cooled
Stroke	4 Stroke	Usage	Other, ELECTRICITY
Cylinder	Multi-cylinder

Product Description

Price:-/
· Place of Origin:Shandong China (Mainland)
· Fuel:Diesel
· Cold Style:water cooling/inlet air inter cooli...
· Start:Air/electric motor starting
· Related website:

Item specifics

Place of Origin: Shandong China (Mainland)
Fuel: Diesel
Cold Style: water cooling/inlet air inter cooli...
Start: Air/electric motor starting
Usage: electric drilling rigs(4000-7000m)/mud ...
Model Number: 3000 Diesel Engine
Cylinder: 12, 8-cylinder V shape 60° angle
Payment Terms: L/C,T/T
Brand Name: chidong
Stroke: 4 Stroke
Supply Ability: 400 Set/Sets per Month

Specifications

3000 Diesel Engine (600~1200kW)
Compact in structure and easy in operation
Various overall dimensions are optional
3000 Diesel Engine (600~1200kW)

Features of 3000 Diesel Engine:
1. Structure type: 4-stroke, direct injection combustion chamber, water cooling, exhaust gas turbocharged and inlet air inter cooling
2. Number and arrangement of cylinders: 12 or 8-cylinder, V shape, 60° angle
3. Net weight: 7200~11000Kg
4. Compact in structure and easy in operation
5. Various overall dimensions are optional

Applications:
You can find this powerful engine on the job in many applications, providing power for electric drilling rigs(4000-7000m), mud pumps and fire pumps. Besides, it can also be matched with diesel generating sets to form a power station.
Specifications of 3000 Diesel Engine

Model	Rated power(kW)	Rated rpm (r/min)	Fuel consumption (g/kw.h)	Oil consumption (g/kw.h)	Overall dimensions (mm)	Net weight (kg)
A12V190ZL	1200	1500	205	≤1.0	2950x1980x2206	9300
A12V190PZL	4130x2250x2738	11000
A12V190ZL-3	1100	1300	2950x1980x2206	9300
A12V190PZL-3	4130x2250x2738	11000
A12V190ZL-1	1000	1200	2950x1980x2206	9300
A12V190PZL-1	4130x2250x2738	11000
A12V190ZL-2	900	1000	2950x1980x2206	9300
A12V190PZL-2	4130x2250x2738	11000
A8V190ZL	900	1500	205	≤1.4	2300x1774x2173	7200
A8V190PZL	3380x2250x2738	9100
A8V190ZL-3	760	1300	2300x1774x2173	7200
A8V190PZL-3	3380x2250x2738	9100
A8V190ZL-1	700	1200	2300x1774x2173	7200
A8V190PZL-1	3380x2250x2738	9100
A8V190ZL-2	600	1000	2300x1774x2173	7200
A8V190PZL-2	3380x2250x2738	9100

Technical Parameters

Structure type	4-stroke, direct injection combustion chamber, water cooling, exhaust gas turbocharged and inlet air inter cooling
Number and arrangement of cylinders	12, 8-cylinder V shape 60° angle
Diameter of cylinder(mm)	190
Stroke(mm)	215
Total displacement(L)	73.15/48.77
Compression ratio	14.5:1
Exhaust temperature()	≤650
Outlet temperature()	≤90
Oil temperature(oil sump,)	≤95
Steady speed change ratio(%)-	≤5
Cooling mode	Pressurized water cooling
Lubrication mode	Pressure and spray lubrication
Starting mode	Air/electric motor starting
Jinan Guohua Green Power Equipment Co,ltd
CHIDONG/SHENGDONG 6L190,8V190,12V190,16V190 DIESEL/GAS ENGINE PARTS
Tel:+8618766952912
Desk:86-0531-85600715
Fax:0531-85600715
Add:Jingshi Road 14761,Lixia District,Jinan,Shandonng,China

Web:


Facebook:Jing Wang

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190)
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.

Exhaust pipe 3012CT.09.60.01exhaust pipe 3012CT.09.70.01exhaust pipe 3012CT.09.30.01exhaust pipe 3012CT.09.20.01 601.03.13 copper washer Q/JC14009 18WASHER 3012.09.05A 601.03.10.02B CYLINDER HEAD SEAL RING 601.03.09ANum GB6175 M16washer Q/JC14033 M16O seal ring 601.03.10.12O SEAL RING 601.03.10.13O SEAL RING 50X5.3 GB3452.1 LUBRICATING PIPE FLANGE 601.20.03O SEAL RING 73X3.55 GB3452.1O SEAL RING 77.5X3.55 GB3452.1O SEAL RING 45X3.5 Q/JC12003O SEAL RING 35.5X2.65 GB3452.1OSEAL RING 38.7X3.55 GB3452.1 O SEAL RING 30X3.1 Q/JC12003WATER PUMP B3012H.22.00 FB035055 GB13871-92 TTG-35 129.22.15 129.22.14 O SEAL RING 150X5.3 GB3452.1WATER PUMP ASS WASHER 12VB.22.23INJECTOR ASSEMBLY ADJUSTING WASHER 601.16.09INJECTOR ASSEMBLY ADJUSTING WASHER 601.16.11O SEAL RING 601.16.12 FUEL PUMP ASSEMBLY 4008LB.16.10INJECTOR ASSEMBLY ADJUSTING WASHER601.16.08 INJECTOR ASSEMBLY ADJUSTING WASHER 601.16.13A INJECTOR ASSEMBLY ADJUSTING WASHER 601.16.14AINJECTOR ASSEMBLY ADJUSTING WASHER 601.16.15AFUEL INJECTION PUMP ADJUSTING WASHER 601.16.16A FUEL LINE ASSEMBLY B3012.14.30.20A HAND PRIMING OIL PUMP ASSEMBLY 3008.29R.00COOLING LINE SYSTEM B3012.24.50EXHAUST LINE ASSEMBLY STUD 3012.09.11EXHAUST LINE ASSEMBLY STUD3012.09.06
Z12VB.01.00 CYLINDER BLOCK ASSEMBLY
12VB.02.00 CRANKSHAFT ASSEMBLY
12VB.03.00B CYLINDER HEAD ASSEMBLY
12VB.04.00B OIL SUMP ASSEMBLY
Z12VB.05.00 PISTON AND CONNECTING ROD ASSEMBLY
Z12VB.06.00 CAMSHAFT AND GEAR TRAIN ASSEMBLY
12VB.07.00 TORISONAL VIBRATION DAMPER ASSEMBLY
Z12VB.08.00B INTAKE MANIFOLD ASSEMBLY
Z12VB.09.00B EXHAUST MANIFOLD ASSEMBLY
12VB.10.00 FUEL FILTER ASSEMBLY
12VB.11.00 ROTOR FUEL FEED PUMP ASSEMBLY

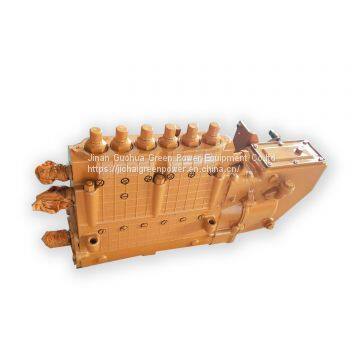

Z12V.12.00 INJECTION PUMP ASSEMBLY
Z12V.13.00 MECHANICAL GOVERNOR ASSMBLY
12VB.14.00A FUEL LINE
12VB.15.00 FUEL INJECTION PUMP TRANSMISSION
12VB.16.00E INJECTOR ASSEMBLY
12V.17.00C OIL PUMP ASSEMBLY
12VB.18.00B OIL FILTER ASSEMBLY
12VB.19.00 CENTRIFUGAL FILTER ASSEMBLY
Z12VB.22.00B LUBRICATING PIPING
12VB.21.00 OIL COOLER ASSEMBLY
12VB.22.00B WATER PUMP ASSEMBLY
12V.27.00 AFTER-COOLER ASSEMBLY
12VB.32.00D INSTRUMENT PANEL ASSEMBLY
12VB.28.00 EXPLOSION-PROOF DEVICE
12V.29.00 HAND PRIMING PUMP ASSEMBLY
12V.33.00B TACHOMETER PANEL ASSEMBLY
12VB.34.00A LOW-OIL PRESSURE SHUT DOWN DEVICE
12VB.35.00A CONTROLLING DEVICE
12VB.36M.00 AIR FILTER ASSEMBLY
12VB.38.00 RADIATOR ASSEMBLY
12VB.39.00 FAN ASSEMBLY
PZ12VB.40.00 BASE FRAME ASSEMBLY
12VB.44.00 COUPLING CLUTCH ASSEMBLY
12VB.45.00A DESERTS AIR FILTER BRACKET ASSEMBLY
12VB.46.00FB AIR STARTING SYSTEM
12VB.47.00A RADIATOR BRACKET ASSEMBLY
12VB.54.00C PRE-SUPPLYING OIL PUMP ASSEMBLY
12VB.55P.00 COUPLING CLUTCH ASSEMBLY
20GJ.00EA RADIAL FLOW TURBOCHARGER ASSEMBLY
12VB.06.47
6. 12VB.06.15B
12VB.06.10.01A
12VB.05.10.08A
12VB36 40/50
(0.00) 12VB.05.10.04/05
(-0.25) 12VB.01.34
(0.00) 12VB.01.23A/24A
(0.00) 12VB.05.10.04/05
(0.00) 12VB.01.21A/22A
(0.00) 12VB.01.23A/24A
(0.00) 12VB.05.10.04/05
1 12VB.01.21A/22AX1
12VB.01.23A/24A(X1)
(0.00) 12VB.01.21A/22A
(0.00) 12VB.01.23A/24A
(0.00) 12VB.05.10.04/05
(0.00) 12VB.01.21A/22A
(0.00) 12VB.01.23A/24A
(0.00) 12VB.05.10.04/05
(x1 12VB.01.23A/24A
(x3 12VB.01.23A/24A
(x1 12VB.01.23A/24A
x3 12VB.01.23A/24A
12VB.03.10
12VB.03.10.01/PJ
12VB.03.10.03/PJ
12VB.03.10.05
12VB.03.10.04
12VB.03.03B
12VB.03.03B
12VB.03.23
12VB.03.44
12V.03.45
12VB.03.47
12VB.10.00
12VB.10.01
12V.10.30.10
12VB.11.00
12VB.16.00
12VB.16.10
12VB.18.00B
8V.18.00B
511.18.00
12VB.18.02B
12VB.18.01A
16Q/JC14028-86
12V.19.06B
12V.19.05B
12V.19.12B
12V.19.08C
12VB.20.30
12VB.22.00B
12VB.22.03B
12VB.22.02B
12VB.22.04
12VB.22.07
12VB.22.00B
129.22.
12VB.34.00A
129.34.00A
12VB.35.00A
2012.35.00A
PZ12VB.40.20.10A
12VB.46.300
701.46F.50
12VB.54.00C
2012.54.00C
12VB.54.20B
12VB.54.30B
12VB.54.10.07
12VB.54.10.06
3012.46F.10
701.46F.60
511.46F.10
QQM.01.09

12V.01.09
12V.03.50.01
12V.03.16A
12V.03.53B
12V.13.50.03
12V.14.140.06
12V.16.14
12V.33.04B
12V.33.06B
12VB.01.04B
12VB.01.07A
12VB.01.33
12VB.01.131
12VB.01.132
12VB.03.09B
12VB.03.10.07
12VB.03.10.04
12VB.03.15
12VB.03.15A
12VB.03.30B
12VB.03.60B
12VB.03.90B
12VB.03.30A
12VB.03.60A
12VB.03.80.11
12VB.05.10.06
12VB.05.10.07
12VB.03.29
12VB.14.30.10B
12VB.14.30.01A
12VB.14.30.02B
12VB.15.10.01A
12VB.15.10.02A
12VB.15.20.02
12VB.15.20.12

No.

Spare parts for 12V190		Qty
1	CYLINDER BLOCK ASSEMBLY		1
			1
3	CYLINDER HEAD ASSEMBLY	127.03.00	12
4	OIL SUMP ASSEMBLY	12VB.04.00B	1
5	PISTON AND CONNECTING ROD ASSEMBLY	127.05.00	12
6	CAMSHAFT AND GEAR TRAIN ASSEMBLY	127.06.00	1
7	TORSIONAL VIBRATION DAMPER ASSEMBLY	12VB.07.00	1
8	INTAKE LINE ASSEMBLY	127.08.00B	1
9	EXHAUST LINE ASSEMBLY	127.09.00A	1
11	NATURAL GAS PIPELINE	127.14.00	1
12	MEGNETO TRANSMISSION ASSEMBLY	127.15.00	1
13	OIL PUMP ASSEMBLY	12V.17.00C	1
14	OIL FILTER ASSEMBLY	12VB.18.00B	1
15	CENTRIFUGAL FILTER ASSEMBLY	12VB.19.00	1
16	LUBRICATING PIPING	127.20.00	1
17	OIL COOLER ASSEMBLY	12VB.21.00	1
18	WATER PUMP ASSEMBLY	12VB.22.00B	2
19	Cooling line system	127.24.00	1
20	INTER-COOLER ASSEMBLY	12V.27.00	1
21	HAND PRIMING OIL PUMP ASSEMBLY	12V.29.00	1
25	OVERSPEED SAFETY DEVICE	12VB.37J2.00	1
26	SPECIAL TOOLS	127.42.00	3
27	COUPLING ASSEMBLY	163.44.00	1
29	ELECTRIC STARTING SYSTEM	127.46D.00	1
30	OIL PUMP BRACKET ASSEMBLY	12VB.48.00	1
31	CARBURETTER ASSEMBLY	127.86.00	2
32	NATURAL GAS PRESSURE REGALATING VALVE	127.87.00	1
33	GOVERNOR CONNECTION ASSEMBLY	127.89.00	1
35	Electromagnetic valve	127.91.00	1
36	TURBOCHARGER ASSEMBLY	127.20GJ.00EB	2
